Texas Instruments ULN2003BN

Part No.:: ULN2003BN

Manufacturer:: Texas Instruments

Package:: 16-PDIP

Datasheet:: ULN2003BN.pdf

Description:: IC PWR RELAY 7NPN 1:1 16DIP

In Stock:: 2631

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ULN2003BN Specifications

Package/Case:
16-PDIP
Packaging:
Tube
Series:
ULx200xA
ProductStatus:
Active
SwitchType:
Relay, Solenoid Driver
NumberofOutputs:
7
Ratio-Input:Output:
1:1
OutputConfiguration:
Low Side
OutputType:
NPN
Interface:
Parallel
Voltage-Load:
50V (Max)
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
-
InputType:
Inverting
Features:
-
FaultProtection:
-
OperatingTemperature:
-40°C ~ 105°C (TA)
MountingType:
Through Hole

ULN2003BN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ULN2003BN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ULN2003BN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ULN2003BN information

Views：

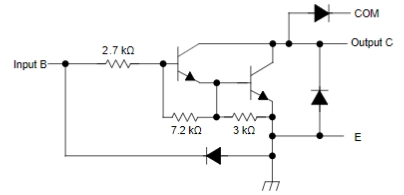

ULN2003BN Typical application Circuitry

ULN2003BN

The ULN2003BN is an integrated circuit (IC) that belongs to a family of high-voltage, high-current Darlington transistor arrays. These ICs are designed to interface low-voltage, low-current control signals (such as those from microcontrollers or logic gates) with higher-voltage or higher-current loads (like relays, solenoids, stepper motors, lamps, etc.).

Here are some key features and aspects of the ULN2003BN:

1. Darlington Pairs: The ULN2003BN typically consists of seven Darlington transistor pairs. Each pair is an arrangement of two bipolar transistors in a configuration that provides high current gain.

2. Output Capability: The IC is designed to handle higher voltages and currents on the output side. It can usually handle output voltages of upto 50V, with a current capacity of around 500mA per channel.

3. Input Compatibility: The inputs are compatible with typical TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) levels, making it easy to interface with microcontrollers or other digital logic circuits.

4. Built-in ClampDiodes: The ULN2003BN incorporates clampdiodes for each channel to protect against inductive load transients. These diodes are useful when driving inductive loads like motors or relays.

5. Common Cathode: The clampdiodes have a common cathode, which can be connected to the voltage used to power the inductive loads.

6. Packaging: The ULN2003BN is usually available in a DIp(Dual In-line Package) or other surface-mount packages, making it suitable for integration onto printed circuit boards (PCBs).

7. Applications: This IC is commonly used in applications requiring the control of high-voltage or high-current devices, such as driving LED displays, relays, solenoids, stepper motors, and more.

8. Simplified Circuit Design: By using the ULN2003BN, designers can simplify the interface between low-level digital logic and high-power loads, reducing the need for discrete components.

For detailed information about the ULN2003BN, including its electrical specifications, pin configurations, and application circuits, it is recommended to consult the datasheet and technical documentation provided by the manufacturer.
