What is the Additional Feature ?

Name: ULN2003APWRG4
Brand: Texas Instruments
SKU: ULN2003APWRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments ULN2003APWRG4

Part No.:: ULN2003APWRG4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP

Datasheet:: ULN2003APWRG4.pdf

Description:: IC PWR RELAY 7NPN 1:1 16TSSOP

In Stock:: 3501

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ULN2003APWRG4 Specifications

Package/Case:
16-TSSOP
Packaging:
Tape & Reel (TR)
Series:
ULx200xA
ProductStatus:
Discontinued at Mosen
SwitchType:
Relay, Solenoid Driver
NumberofOutputs:
7
Ratio-Input:Output:
1:1
OutputConfiguration:
Low Side
OutputType:
NPN
Interface:
Parallel
Voltage-Load:
50V (Max)
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
-
InputType:
Inverting
Features:
-
FaultProtection:
-
OperatingTemperature:
-40°C ~ 70°C (TA)
MountingType:
Surface Mount

ULN2003APWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ULN2003APWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ULN2003APWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ULN2003APWRG4 information

Views：

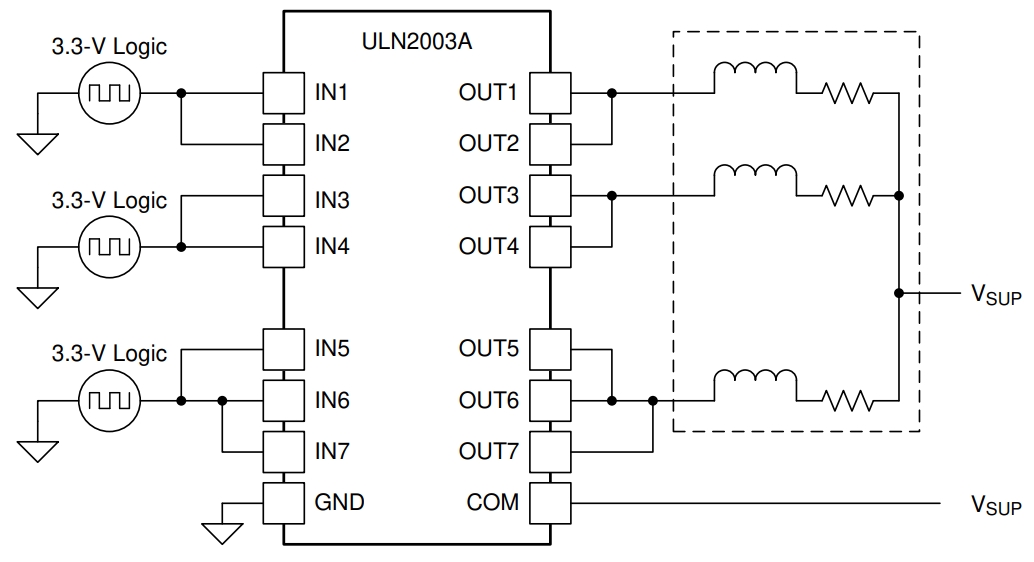

ULN2003APWRG4 Typical application Circuitry

ULN2003APWRG4

The ULN2003APWRG4 is a versatile Darlington transistor array chip designed for driving high-current loads with low-level logic signals. Applications needing the control of inductive loads, such as stepper motors, solenoids, and relays, frequently use it.

Application Scenarios: This chip is widely employed in automation systems, automotive applications, consumer electronics, and robotics for controlling relays, solenoids, stepper motors, and LED arrays.

Parameter Features: The ULN2003APWRG4 consists of seven Darlington pairs, each capable of sinking currents up to 500mA. It has a maximum voltage rating of 50V and includes built-in input resistors, making it compatible with both TTL and CMOS logic levels.

Circuit Design Example - Driving a Relay:

1. Input Connection: Connect the input of one of the Darlington pairs (e.g., pin 1) to a digital output pin of a microcontroller.

2. Output Connection: Connect the corresponding output (e.g., pin 16) to one terminal of the relay coil. The other terminal of the coil should be connected to the positive supply voltage.

3. Common Ground: Connect pin 8 of the ULN2003APWRG4 to the ground of the circuit to establish a common reference point for input and output voltages.

4. Power Supply: Ensure that the supply voltage for the relay coil is within the maximum voltage rating of the ULN2003APWRG4.

5. Flyback Diode: Place a diode across the relay coil terminals to protect the ULN2003APWRG4 from voltage spikes generated by the inductive load when the relay is deactivated.

Design Considerations:

- Current Rating: Check that the relay's current rating does not exceed the maximum current rating of the ULN2003APWRG4 to prevent damage.

- Input Voltage Levels: Verify that the input voltage from the microcontroller is within the acceptable range for the ULN2003APWRG4.

- Heat Dissipation: Consider heat dissipation requirements, as driving a relay can generate heat in the ULN2003APWRG4.

In this relay driving example, the ULN2003APWRG4's capability to interface low-level logic signals with high-power devices is highlighted. The detailed circuit design emphasizes the importance of managing heat, matching input voltage levels, and ensuring compatibility with the relay's specifications for the effective use of the ULN2003APWRG4 in driving relays.

ULN2003APWRG4 FAQ

1. How to order ULN2003APWRG4 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that ULN2003APWRG4 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the ULN2003APWRG4. All suppliers must pass our qualification reviews before they can publish their products including ULN2003APWRG4 on icwhale.com; we pay more attention to the channels and quality of ULN2003APWRG4 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the ULN2003APWRG4 price and inventory displayed accurate?

The price and inventory of ULN2003APWRG4 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of ULN2003APWRG4?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the ULN2003APWRG4 we delivered, we will accept the replacement or return of the ULN2003APWRG4 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of ULN2003APWRG4.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
