Name: ULN2003AN
Brand: Texas Instruments
SKU: ULN2003AN
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments ULN2003AN

Part No.:: ULN2003AN

Manufacturer:: Texas Instruments

Package:: 16-PDIP

Datasheet:: ULN2003AN.pdf

Description:: TRANS 7NPN DARL 50V 0.5A 16DIP

In Stock:: 4466

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ULN2003AN Specifications

Package/Case:
16-PDIP
Packaging:
Tube
Series:
ULx200xA
ProductStatus:
Active
SwitchType:
Relay, Solenoid Driver
NumberofOutputs:
7
Ratio-Input:Output:
1:1
OutputConfiguration:
Low Side
OutputType:
NPN
Interface:
Parallel
Voltage-Load:
50V (Max)
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
-
InputType:
Inverting
Features:
-
FaultProtection:
-
OperatingTemperature:
-40°C ~ 70°C (TA)
MountingType:
Through Hole

ULN2003AN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ULN2003AN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ULN2003AN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ULN2003AN information

Views：

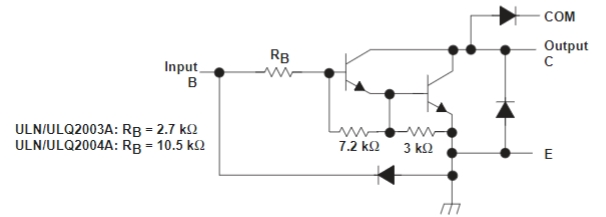

ULN2003AN Typical application Circuitry

ULN2003AN

The ULN2003AN is an integrated circuit (IC) that contains a high-voltage, high-current Darlington transistor array. It is designed to effectively interface low-voltage, low-current digital control signals with higher-voltage, higher-current loads. The IC is a member of the ULN200x family and is frequently used in applications like driving relays, solenoids, stepper motors, LED displays, and similar loads.

Here's a detailed description of the ULN2003AN:

1. Darlington Pairs: The ULN2003AN includes seven NPN Darlington transistor pairs. Each pair consists of two transistors where one transistor is driving the other to result in a high current gain, enabling the device to drive loads that require higher currents.

2. Output Capability: The IC can handle output voltages upto 50V and can source currents of approximately 500mA per channel.

3. Input Compatibility: The inputs of the ULN2003AN are compatible with a variety of logic families, including TTL (Transistor-Transistor Logic), 5V CMOS (Complementary Metal-Oxide-Semiconductor), and other low-voltage digital logic signals.

4. Built-in ClampDiodes: The ULN2003AN comes with internal clampdiodes for each channel. These diodes protect the circuit by providing a path for the flyback current generated by inductive loads, such as relays and motors, thereby preventing voltage spikes.

5. Common Cathode: The clampdiodes have a common cathode pin, which can be connected to the voltage supply used for the inductive loads, offering a convenient way to suppress voltage spikes.

6. Packaging: The ULN2003AN is typically available in a through-hole DIp(Dual In-line Package), making it suitable for breadboards and prototyping as well as integration onto printed circuit boards (PCBs).

7. Applications: The IC is versatile and is used in a range of applications that involve interfacing low-level digital signals with high-power loads. This includes driving LED displays, relays, solenoids, stepper motors, and other inductive or resistive loads.

8. Simplified Circuit Design: Using the ULN2003AN simplifies the design of control circuits by reducing the need for additional discrete components, such as external diodes, and streamlining the overall design process.

For detailed information about the ULN2003AN, including its electrical specifications, pin configurations, and application circuits, it is recommended to consult the datasheet and technical documentation provided by the manufacturer.
