Texas Instruments TSC2046IPWRG4

Part No.:: TSC2046IPWRG4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: TSC2046IPWRG4.pdf

Description:: IC SCREEN CNTRL 12BIT 16TSSOP

In Stock:: 2243

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TSC2046IPWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TSC2046IPWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TSC2046IPWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

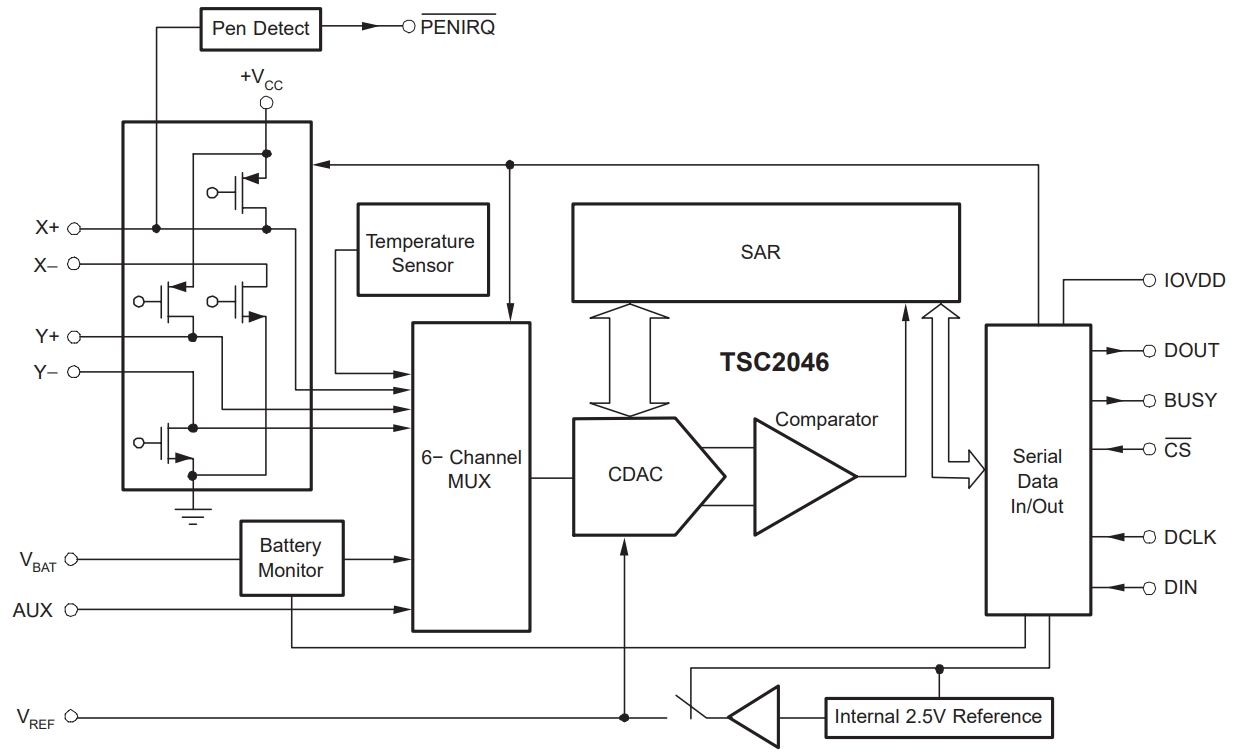

TSC2046IPWRG4 Typical application Circuitry

TSC2046IPWRG4

The TSC2046IPWRG4 is an integrated circuit (IC) known for its functionality as a touch screen controller. It specializes in interfacing with resistive touch screens, converting analog touch inputs into digital signals.

Functionality of TSC2046IPWRG4

This IC operates as a controller for resistive touch screens, providing precision in touch input detection and processing.

Application Scenarios

The TSC2046IPWRG4 is commonly used in portable electronic devices like smartphones, tablets, GPS systems, and in industrial control panels where touch screen functionality is a key component.

Key Parameter Features

- High Resolution: Delivers accurate touch input detection.

- Low Power Consumption: Ideal for battery-powered applications.

- Serial Interface: Simplifies connection with microcontrollers.

- Compact Size: Suitable for space-limited devices.

- Wide Operating Voltage Range: Adaptable to various power environments.

- Pressure Sensing Capability: Enhances the functionality of touch screens.

Circuit Connection Example: Smartphone Touch Screen

Implementing the TSC2046IPWRG4 in a smartphone touch screen involves several key steps.

1. Touch Screen Interface

- Y-Axis Detection: Connect the Y-axis of the touch screen to pins 13 (Y+) and 12 (Y-).

- X-Axis Detection: Link the X-axis to pins 11 (X+) and 10 (X-).

2. Microcontroller Communication

- Serial Data Line: Attach pin 9 (DIN) to the microcontroller's data input line.

- Serial Data Output: Connect pin 8 (DOUT) to the microcontroller's data output line.

- Serial Clock Line: Link pin 7 (CLK) to the microcontroller's clock line.

3. Power Supply Integration

- Voltage Source: Connect VDD (pin 6) to a suitable power source, typically 3.3V or 5V.

4. Grounding

- Circuit Ground: Secure VSS (pin 5) to the system ground.

5. Pen Interrupt Function

- Touch Detection: Utilize pin 4 (PENIRQ) to detect touch events, connecting it to an interrupt input on the microcontroller.

6. Auxiliary Functions

- Battery Monitoring: If battery voltage monitoring is required, connect the battery to pin 14 (BAT).

Design Considerations

When designing circuits with the TSC2046IPWRG4, it's important to focus on the resolution and sensitivity of the touch screen, ensure stable power supply and communication interfaces, and implement effective noise reduction strategies, particularly in compact and high-usage devices like smartphones.

In summary, the TSC2046IPWRG4 is an effective touch screen controller IC, ideal for applications in portable electronic devices. Its high resolution, low power consumption, and serial interface make it a suitable choice for integrating touch screen functionality. Careful attention to touch screen characteristics, power supply stability, and noise management is key for successful integration of this IC into electronic designs.

TSC2046IPWRG4 information

TSC2046IPWRG4 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Touchscreen:
4 Wire Resistive
Resolution(Bits):
12 b
Interface:
SPI
VoltageReference:
Internal
Voltage-Supply:
2.2V ~ 5.25V
Current-Supply:
780 µA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
