Texas Instruments TS3USB221DRCRG4

Part No.:: TS3USB221DRCRG4

Manufacturer:: Texas Instruments

Package:: 10-VFDFN Exposed Pad

Datasheet:: TS3USB221DRCRG4.pdf

Description:: IC USB SWITCH DUAL 1X2 10SON

In Stock:: 3133

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS3USB221DRCRG4 Specifications

Package/Case:
10-VFDFN Exposed Pad
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Applications:
USB
Multiplexer/DemultiplexerCircuit:
2:1
SwitchCircuit:
SPDT
NumberofChannels:
2
On-StateResistance(Max):
6Ohm
Voltage-SupplySingle(V+):
2.3V ~ 3.6V
Voltage-SupplyDual(V±):
-
-3dbBandwidth:
1.1GHz
Features:
Bi-Directional, USB 2.0
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS3USB221DRCRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS3USB221DRCRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS3USB221DRCRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS3USB221DRCRG4 information

Views：

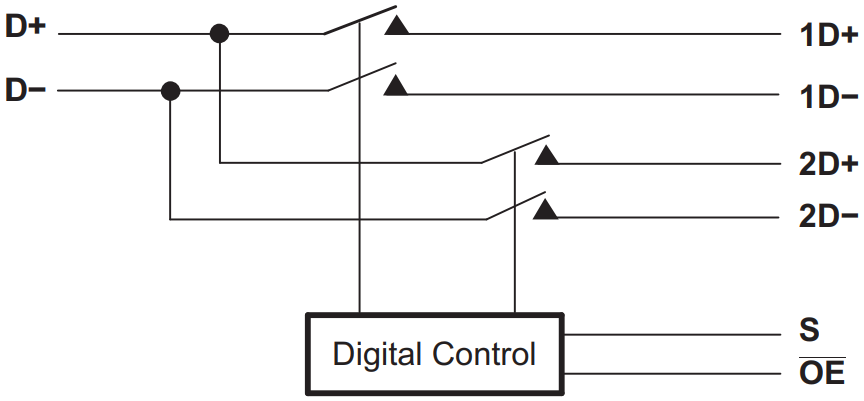

TS3USB221DRCRG4 Typical application Circuitry

TS3USB221DRCRG4

The TS3USB221DRCRG4 is an advanced electronic component from the renowned TS3 series by Texas Instruments. It's designed as a versatile high-speed USB 2.0 (480 Mbps) dual-channel multiplexer/demultiplexer switch, ideal for a variety of applications including efficient USB signal switching in computer interfaces, docking stations, and peripheral sharing systems.

1. Power Supply Connections: For powering the TS3USB221DRCRG4, a single power supply is required, which connects to its VCC pin. The voltage level at VCC must be in line with the datasheet's specifications to ensure proper functioning of the device. In addition, connecting the ground pin (GND) to the system's ground is vital to provide a stable operational reference.

2. USB Signal Switching Mechanics: The TS3USB221DRCRG4 features a primary USB signal port (D+/D-) and two alternative USB signal pairs (1D+/1D- and 2D+/2D-). The switching mechanism of the TS3USB221DRCRG4 is governed by the input to the select pin (SEL), directing the USB signal from the common port to either of the selectable pairs, crucial for effective signal routing.

3. Control Input for Signal Path Determination: The SEL pin plays an instrumental role in controlling the TS3USB221DRCRG4's switching action. The device routes the common D+/D- lines to either the 1D+/1D- or the 2D+/2D- lines based on the logic level applied to this pin, facilitating versatile signal routing.

4. Ensuring High-Speed Signal Integrity: Given its compatibility with high-speed USB 2.0, it's critical for the TS3USB221DRCRG4 to maintain impeccable signal integrity. This necessitates a well-thought-out PCB layout, concentrating on trace routing, impedance control, and sustaining the differential nature of the USB signal lines to prevent any loss in signal quality.

5. Built-in ESD Protection: The TS3USB221DRCRG4 comes with integrated electrostatic discharge (ESD) protection on all its pins. Despite this protective feature, handling the device with standard ESD precautions is recommended to avoid accidental damage.

6. Thermal Management Considerations: Although the TS3USB221DRCRG4 is generally resilient to significant heat generation, thermal management should be factored into the design, especially when the device is used in compact or high-temperature settings.

7. PCB Design for Optimal Performance: The effective operation of the TS3USB221DRCRG4 is largely dependent on the PCB layout. Key layout strategies include minimizing trace lengths, ensuring solid grounding, and adequately shielding the high-speed differential signal pairs, which are imperative for sustaining signal integrity and the reliable functioning of the USB switch.

In conclusion, the TS3USB221DRCRG4 is a pivotal component for applications demanding rapid and efficient USB signal switching. Integrating this device into a system requires meticulous attention to power supply connections, USB signal switching configurations, control input management, high-speed signal integrity, adherence to ESD safety practices, thermal management, and strategic PCB design. These factors are crucial to exploiting the full potential of the TS3USB221DRCRG4 in sophisticated USB signal routing applications.
