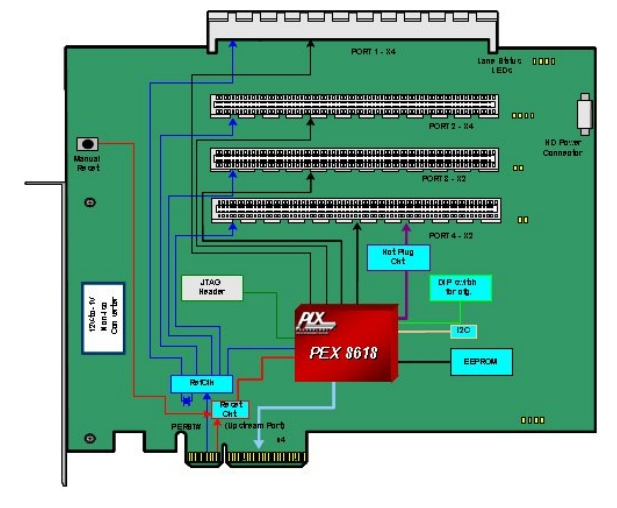

PEX8618-BA50BC G Typical application Circuitry

PEX8618-BA50BC G

The PEX8618-BA50BC G is a high-performance, multi-port PCIe switch chip designed to enable efficient interconnection of multiple PCIe devices within a system. This chip is crucial for applications that require high data throughput and flexible PCIe configurations, making it an ideal solution for complex multi-device environments.

Application Scenarios

The PEX8618-BA50BC G is versatile, with applications in:

- Workstation and High-End PCs: For integrating multiple graphics cards or other high-speed PCIe devices.

- Data Centers: Facilitating connections between storage controllers, network cards, and other server components.

- Embedded Systems: Enhancing connectivity in compact, high-performance computing applications.

Parameters and Features

Notable features of the PEX8618-BA50BC G include:

- Eighteen PCIe Ports: Offers extensive connectivity options.

- PCIe 2.0 Compliance: Supports high-speed data transfer protocols.

- Advanced Power Management: Incorporates features for reducing power consumption during idle or low-activity states.

Application Scenario: Designing a High-Performance Embedded Computing System

Device Integration

- Direct Device Connection: Connect each peripheral device directly to an individual port on the PEX8618-BA50BC G to ensure dedicated bandwidth. This involves careful planning of the physical layout to match each device's PCIe connector with the corresponding port on the chip.

Power Supply Design

- Ensuring Adequate Power: The PEX8618-BA50BC G should be powered by a stable and sufficient power source. This typically involves connecting the chip's power supply pins to a +3.3V source, with careful attention to providing enough current for peak operation. Ground connections must be securely established to ensure system stability.

System Interface

- Motherboard Connectivity: The primary PCIe interface of the PEX8618-BA50BC G must be connected to a compatible PCIe slot on the motherboard. This is critical for enabling communication between the embedded system's CPU and the devices connected through the PCIe switch.

Optimal Configuration for Performance

- Firmware and Software Setup: Proper configuration of the system's firmware and the PEX8618-BA50BC G settings is essential. This includes optimizing the switch's internal settings for the types of connected devices and ensuring that the system BIOS recognizes the PCIe topology correctly.

Thermal Management

- Cooling Solutions: Due to the PEX8618-BA50BC G potentially generating significant heat, especially in high-load scenarios, incorporating effective cooling mechanisms is vital. Options might include passive cooling with heatsinks or active cooling systems, depending on the overall system design and thermal requirements.

Design Considerations

When incorporating the PEX8618-BA50BC G into an embedded system, several key factors must be addressed:

- PCIe Lane Optimization: Analyze and plan the distribution of PCIe lanes among connected devices to maximize data throughput and minimize bottlenecks.

- Power Consumption and Supply: Calculate the total power requirement of the system, including the PEX8618-BA50BC G and all connected devices, to select an appropriate power supply unit.

- Signal Integrity and Layout: Design the PCB and system layout to ensure optimal signal integrity for the PCIe lanes. This involves careful routing and potentially the use of impedance-controlled traces to minimize signal degradation.

- Compatibility Checks: Ensure that all connected devices are fully compatible with the PCIe 2.0 standard and can operate efficiently with the PEX8618-BA50BC G.

Implementing the PEX8618-BA50BC G in a high-performance embedded computing system not only requires detailed attention to hardware integration and system configuration but also highlights the importance of considering power management, thermal solutions, and signal integrity. Such comprehensive planning is essential for leveraging the advanced capabilities of this PCIe switch chip, ensuring high system performance and reliability.
