Texas Instruments TPS54560DDA

Part No.:: TPS54560DDA

Manufacturer:: Texas Instruments

Package:: 8-PowerSOIC (0.154, 3.90mm Width)

Datasheet:: TPS54560DDA.pdf

Description:: IC REG BCK SPLIT RAIL ADJ 8SOPWR

In Stock:: 3547

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS54560DDA Specifications

Packaging:
Bulk,Tube
Series:
Eco-Mode™
ProductStatus:
Not For New Designs
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck, Split Rail
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
60V
Voltage-Output(Min/Fixed):
0.8V
Voltage-Output(Max):
58.8V
Current-Output:
5A
Frequency-Switching:
100kHz ~ 2.5MHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TPS54560DDA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS54560DDA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS54560DDA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS54560DDA information

Views：

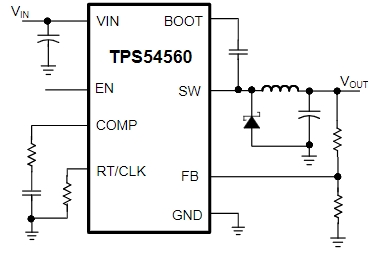

TPS54560DDA Typical application Circuitry

TPS54560DDA

The TPS54560DDA is a step-down (buck) converter from Texas Instruments. It's designed to provide an efficient and compact voltage regulation solution, especially useful for systems that need to convert a higher DC input voltage to a lower DC output voltage.

Here's a description of the TPS54560DDA and its typical role in a circuit:

Features of the TPS54560DDA:

1. Input Voltage Range: It is designed to operate from a 4.5V to 60V range, allowing it to cater to various applications, including those with fluctuating input sources.

2. Output Current: This converter can provide up to 5A of continuous output current.

3. Switching Frequency: Its switching frequency is adjustable, allowing for optimization between component size and efficiency.

4. Integrated MOSFETs: It comes with an integrated high-side and low-side MOSFET, simplifying design and reducing external component requirements.

5. Eco-Mode™: A feature that allows for improved efficiency at light-load conditions.

6. Protection Features: Includes mechanisms such as over-current protection, over-voltage protection, under-voltage lockout, and thermal shutdown for safe operation.

7. Soft-Start: A feature to mitigate inrush current during startup.

Typical Application Circuit Components:

1. Input Capacitor (Cin): Positioned near the VIN and PGND pins to stabilize and filter the input voltage.

2. Bootstrap Capacitor (Cboot): Located between the BOOT and PH pins, providing the drive voltage for the internal high-side MOSFET.

3. Output Capacitor (Cout): This capacitor, placed at the output, ensures a stable output voltage.

4. Inductor (L): Central to the buck converter operation, it works with the output capacitor for energy storage and filtering.

5. Feedback Resistors (R1 & R2): These determine the desired output voltage when connected to the VFB (feedback) pin.

6. Frequency Setting Resistor (Rt): This resistor sets the desired switching frequency for the converter.

7. Soft-Start Capacitor (Css): Defines the duration for the soft-start sequence when connected to the SS pin.

Depending on specific design requirements, other components such as bypass capacitors, Schottky diodes, or additional resistors might be included.

For the most detailed information, application guidelines, and specifications, it's recommended to refer to the official datasheet of the TPS54560DDA. Proper PCB layout practices are crucial when working with switch-mode power supplies to ensure good performance, stability, and minimized noise.
