Texas Instruments LM27313XMF/NOPB

Part No.:: LM27313XMF/NOPB

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LM27313XMF/NOPB.pdf

Description:: IC REG BOOST ADJ 800MA SOT23-5

In Stock:: 7861

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM27313XMF/NOPB Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Function:
Step-Up
OutputConfiguration:
Positive
Topology:
Boost
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
2.7V
Voltage-Input(Max):
14V
Voltage-Output(Min/Fixed):
5V
Voltage-Output(Max):
28V
Current-Output:
800mA (Switch)
Frequency-Switching:
1.6MHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

LM27313XMF/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM27313XMF/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM27313XMF/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM27313XMF/NOPB information

Views：

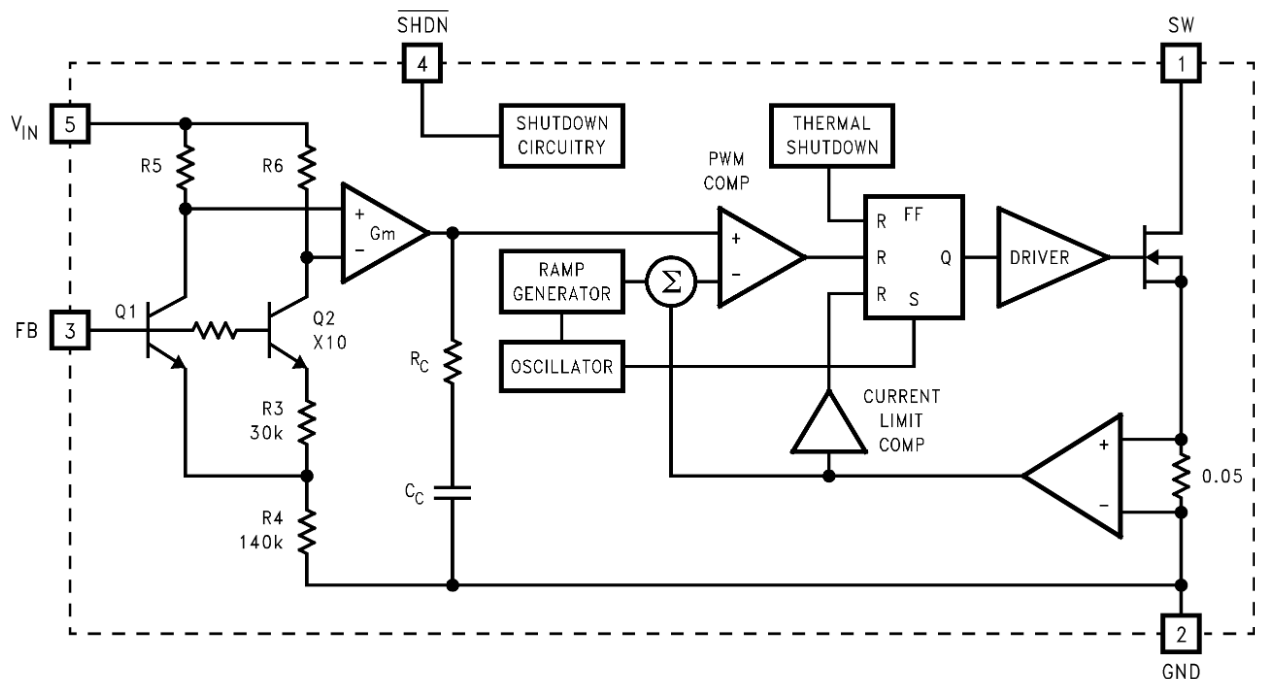

LM27313XMF/NOPB Typical application Circuitry

LM27313XMF/NOPB

The LM27313XMF/NOPB is part of Texas Instruments' LM27313 series, which are compact, high-frequency boost (step-up) voltage converters. These integrated circuits are designed to increase the voltage from a lower voltage source, making them suitable for battery-powered and other low-voltage applications.

1. Pin 1 (GND): This pin serves as the ground reference for the whole circuit. It must be fastened to the system's ground plane.

2. Pin 2 (SW): The switch pin is connected to the internal NMOS switch. An inductor should be connected between this pin and the output voltage node, which typically includes a Schottky diode and an output capacitor to provide a stable and smoothed output voltage.

3. Pin 3 (VIN): This pin is where the input voltage is supplied. Attach a bypass capacitor between this pin and GND to filter the input supply and provide clean power to the LM27313XMF/NOPB.

4. Pin 4 (FB): This feedback pin is used to set the output voltage when using an adjustable version like the LM27313XMF/NOPB. Connect a resistor divider from the output to this pin to adjust the output voltage as desired, based on the internal reference voltage.

5. Pin 5 (SHDN): The shutdown pin can be used to disable the chip and put it into a low-power state. Pulling this pin low turns off the regulator; pulling it high or leaving it floating enables the regulator.

6. Pin 6 (EN): The enable pin turns the IC on when driven high. When it's driven low, the IC is turned off. If always-on operation is required, this pin can be connected to the VIN.

When integrating the LM27313XMF/NOPB into your design, ensure that the external components such as the inductor, Schottky diode, and capacitors are selected according to the specifications for your desired output voltage and current. The PCB layout should feature short, wide traces for the switch node to minimize losses and ensure efficient operation. Also, pay attention to thermal management to keep the device within its operating temperature range, especially when the device is delivering high current. Adhering to the guidelines in the datasheet for the LM27313XMF/NOPB will help you create an effective and reliable boost converter circuit.
