Texas Instruments TPS54360DDA

Part No.:: TPS54360DDA

Manufacturer:: Texas Instruments

Package:: 8-PowerSOIC (0.154, 3.90mm Width)

Datasheet:: TPS54360DDA.pdf

Description:: IC REG BCK SPLIT RAIL ADJ 8SOPWR

In Stock:: 3843

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS54360DDA Specifications

Packaging:
Tube
Series:
Eco-Mode™
ProductStatus:
Not For New Designs
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck, Split Rail
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
60V
Voltage-Output(Min/Fixed):
0.8V
Voltage-Output(Max):
58.8V
Current-Output:
3.5A
Frequency-Switching:
100kHz ~ 2.5MHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TPS54360DDA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS54360DDA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS54360DDA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS54360DDA information

Views：

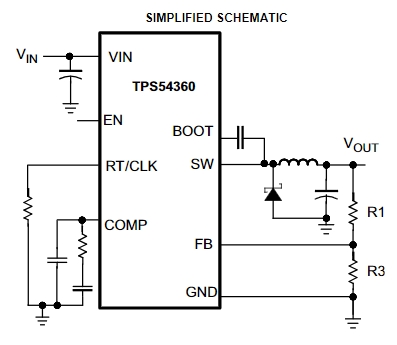

TPS54360DDA Typical application Circuitry

TPS54360DDA

The TPS54360DDA is another variant of the TPS54360 series of step-down (buck) converters from Texas Instruments. The primary function of these devices is to efficiently reduce a higher DC input voltage to a lower DC output voltage. The series is known for its wide input voltage range and robust performance.

Here's a general description of the TPS54360DDA and its typical usage in a circuit:

Features of the TPS54360DDA:

1. Wide Input Range: This IC can accept input voltages typically ranging from 4.5V to 60V, making it versatile for various applications.

2. Output Current: Designed to handle output currents up to 3.5A.

3. Adjustable Switching Frequency: The switching frequency can be adjusted from 100kHz to 2.5MHz, allowing designers to optimize performance based on the application's needs.

4. Integrated High-Side MOSFET: This reduces the need for external components and can simplify the overall circuit design.

5. Efficiency-Optimizing Features: Such as a power-saving mode for light-load conditions.

6. Protection Mechanisms: Including over-current, over-voltage, and thermal shutdown protection.

7. Soft-Start: Helps in gradually ramping up the output voltage, preventing inrush current and potential component stress during startup.

Typical Application Circuit Components:

1. Input Capacitor (Cin): This capacitor helps in suppressing voltage spikes and provides the AC current needed by the converter.

2. Bootstrap Capacitor (Cboot): Connected from the BOOT pin to the SW pin, it powers the high-side MOSFET driver.

3. Output Capacitor (Cout): Helps in smoothing out the output voltage.

4. Inductor (L): Works alongside the output capacitor to store energy and filter the output.

5. Feedback Resistors (R1 & R2): These define the output voltage of the converter based on the feedback mechanism.

6. Frequency Setting Resistor (Rt): Sets the operating frequency of the converter.

7. Soft-Start Capacitor (Css): Determines the soft-start ramp-up time.

Apart from these, additional components like diodes, bypass capacitors, and protection resistors might be present based on specific design requirements.

For a detailed understanding, application notes, recommended component values, and precise specifications, always refer to the official datasheet of the TPS54360DDA. Furthermore, as with all switch-mode power supplies, the PCB layout is vital. Proper layout ensures minimized noise, optimized thermal performance, and stable operation.
