Texas Instruments TPS54040ADGQR

Part No.:: TPS54040ADGQR

Manufacturer:: Texas Instruments

Package:: 10-PowerTFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: TPS54040ADGQR.pdf

Description:: IC REG BUCK ADJ 500MA 10MSOP

In Stock:: 2422

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS54040ADGQR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Eco-Mode™
ProductStatus:
Active
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
3.5V
Voltage-Input(Max):
42V
Voltage-Output(Min/Fixed):
0.8V
Voltage-Output(Max):
39V
Current-Output:
500mA
Frequency-Switching:
100kHz ~ 2.5MHz
SynchronousRectifier:
No
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TPS54040ADGQR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS54040ADGQR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS54040ADGQR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS54040ADGQR information

Views：

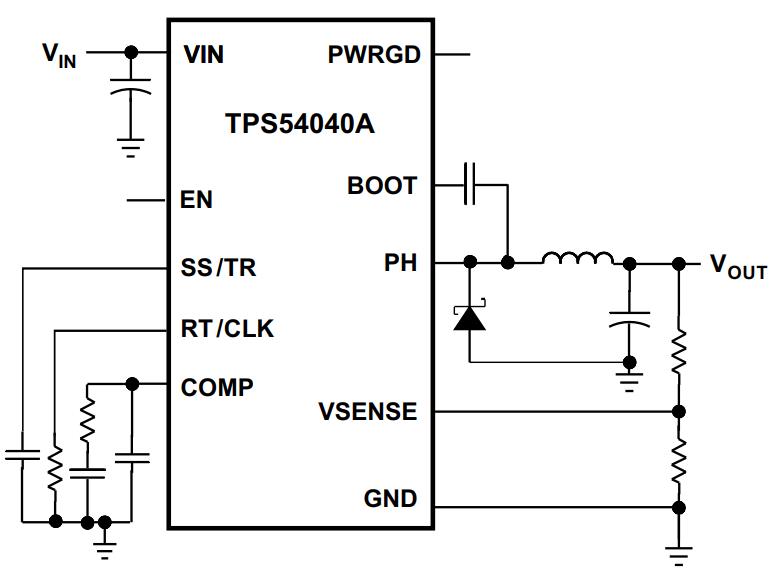

TPS54040ADGQR Typical application Circuitry

TPS54040ADGQR

The TPS54040ADGQR is a step-down (buck) regulator offered by Texas Instruments. It is characterized by its low power consumption, high efficiency and its ability to work over a broad input voltage range of 4.5 V to 42 V. This makes it an ideal component in power supply designs for various applications such as automotive, industrial and power modules.

Here's an outline of an application circuit for the TPS54040ADGQR, highlighting four key aspects:

1. Power Supply: The TPS54040ADGQR requires an input voltage range of 4.5V to 42V. A decoupling capacitor should be connected between the VIN (input voltage) and PGND (power ground) pins to provide a stable power supply.

2. Feedback Resistors: A resistive divider connected to the output voltage feeds back to the FB pin, allowing the device to regulate the output voltage. The resistor values are chosen based on the desired output voltage and the feedback voltage specified in the datasheet.

3. Inductor and Output Capacitor: The inductor and output capacitor form an LC filter for the output. Based on the desired output voltage, switching frequency, and load current, their values are selected. The inductor is connected to the SW pin, and the output capacitor is connected to the output voltage and ground.

4. Frequency Setting Resistor: A resistor connected to the RT/CLK pin sets the switching frequency of the regulator. Based on the desired frequency listed in the datasheet, the resistor value is selected.

This is only a general recommendation for a TPS54040ADGQR application circuit, so keep that in mind. The specific circuit design will vary depending on the requirements of your application. Therefore, always refer to the TPS54040ADGQR datasheet and relevant Texas Instruments' technical resources for comprehensive circuit design information.
