What is the Additional Feature ?

Name: TPS4H160BQPWPRQ1
Brand: Texas Instruments
SKU: TPS4H160BQPWPRQ1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TPS4H160BQPWPRQ1

Part No.:: TPS4H160BQPWPRQ1

Manufacturer:: Texas Instruments

Package:: 28-HTSSOP

Datasheet:: TPS4H160BQPWPRQ1.pdf

Description:: IC PWR SWTCH N-CHAN 1:1 28HTSSOP

In Stock:: 3582

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS4H160BQPWPRQ1 Specifications

Package/Case:
28-HTSSOP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
4
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
3.4V ~ 40V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
2.5A
RdsOn(Typ):
165mOhm
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Fixed), Over Temperature
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

TPS4H160BQPWPRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS4H160BQPWPRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS4H160BQPWPRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS4H160BQPWPRQ1 information

Views：

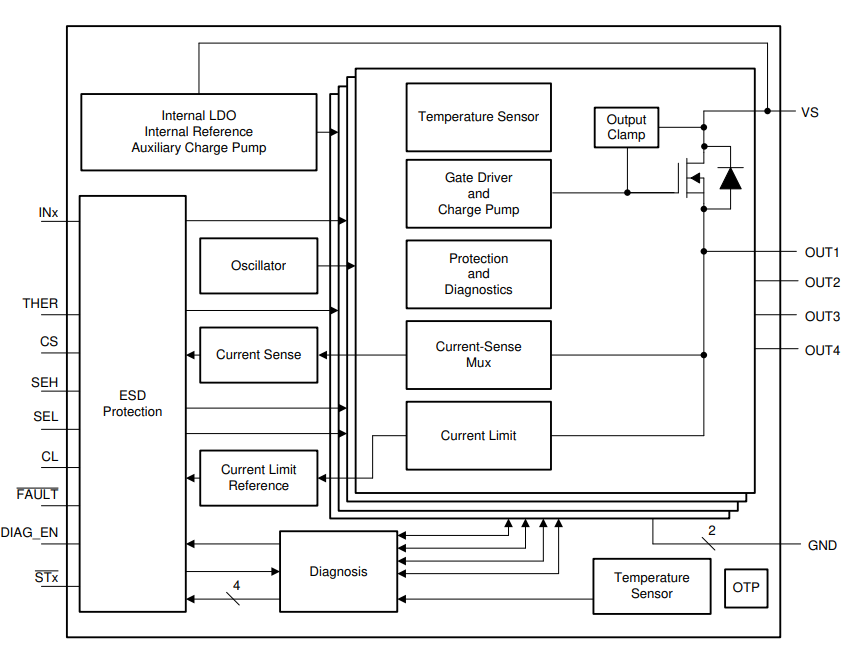

TPS4H160BQPWPRQ1 Typical application Circuitry

TPS4H160BQPWPRQ1 is a quad-channel high-side switch, specifically designed to control multiple loads with individual channel controls. These high-side switches are primarily used in automotive and industrial applications where multiple loads, such as motors, lamps, or solenoids, need to be controlled using microcontrollers or digital processors.

Application Scenarios:

The TPS4H160BQPWPRQ1 can be integrated into multiple application scenarios including automotive control systems, lighting systems, industrial automation equipment, and other systems where multiple loads require precise control.

Key Features:

1. Four independent high-side channels.

2. Wide input voltage range.

3. Over-current protection.

4. Thermal shutdown protection.

5. Individual channel diagnostics.

Application Example – Automotive Lighting System:

1. Input Power:

- The `VBAT` pin should be connected to the vehicle's battery or power source. This is the primary voltage supply for the TPS4H160BQPWPRQ1.

2. Grounding:

- Connect the `GND` pin securely to the vehicle's ground or common ground in the circuit.

3. Load Connections:

- Each of the four output pins (`OUT1`, `OUT2`, `OUT3`, and `OUT4`) should be connected to different lighting components, e.g., headlights, taillights, turn signals, and cabin lights, respectively.

4. Channel Control:

- The control pins (`IN1`, `IN2`, `IN3`, and `IN4`) can be interfaced with a microcontroller or digital control system. By providing appropriate logic signals to these pins, the respective channels can be turned ON or OFF.

5. Diagnostics:

- The `nFAULT` pin provides diagnostic feedback. If any issues like overcurrent or overheating are detected on any of the channels, this pin will notify the control system, ensuring safety and reliability.

Design Considerations:

1. Protection Mechanisms: While the TPS4H160BQPWPRQ1 does provide overcurrent and thermal protection, additional protection circuits like fuses can be used for enhanced security.

2. EMI/RFI Filtering: Especially in automotive applications, it's crucial to consider electromagnetic interference. Placing filtering capacitors or ferrite beads can be useful.

3. Cabling and Layout: Ensure that the wiring, especially for the load connections, is of adequate gauge and quality to handle the current without excessive voltage drop.

4. Heat Management: While the chip offers thermal shutdown, it's still wise to ensure good airflow or heat sinking if the switch is to operate near its maximum current ratings.

In essence, the TPS4H160BQPWPRQ1 is a versatile high-side switch suitable for various applications requiring precise multi-load control. Proper integration, along with consideration for protection and interference, ensures optimal and reliable performance.
