What is the Additional Feature ?

Name: TPS2560DRCR
Brand: Texas Instruments
SKU: TPS2560DRCR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TPS2560DRCR

Part No.:: TPS2560DRCR

Manufacturer:: Texas Instruments

Package:: 10-VSON (3x3)

Datasheet:: TPS2560DRCR.pdf

Description:: IC PWR SWITCH N-CHAN 1:2 10VSON

In Stock:: 2451

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS2560DRCR Specifications

Package/Case:
10-VSON (3x3)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:2
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
2.5V ~ 6.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
2.5A
RdsOn(Typ):
44mOhm
InputType:
Non-Inverting
Features:
Slew Rate Controlled, Status Flag
FaultProtection:
Current Limiting (Adjustable), Over Temperature, UVLO
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

TPS2560DRCR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS2560DRCR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS2560DRCR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS2560DRCR information

Views：

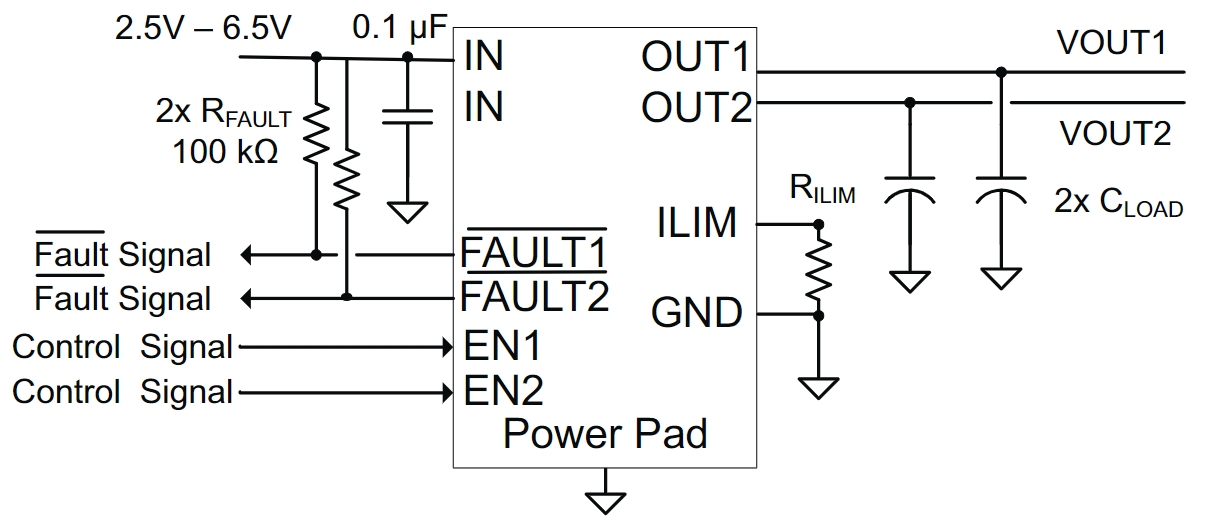

TPS2560DRCR Typical application Circuitry

TPS2560DRCR

The TPS2560DRCR is a specialized integrated circuit (IC) with distinct functionalities, suitable for a variety of applications.

Functionality of TPS2560DRCR

The TPS2560DRCR is primarily a dual-channel USB power switch and current limiting IC. It's designed for managing power distribution and providing overcurrent protection in USB ports.

Application Scenarios

1. USB Port Power Management: Used in computers and USB hubs for managing power to connected USB devices.

2. Battery Charging Applications: In portable devices for controlled power delivery and charging via USB ports.

3. Industrial Control Systems: To provide protected power to USB devices in industrial environments.

Parameter Characteristics

- Dual Independent Channels: Allows separate control of two USB ports.

- Adjustable Current Limiting: This feature permits various current limitations to be specified for every channel.

- Overcurrent and Short Circuit Protection: Guards against power-related problems for connected devices.

Detailed Circuit Connection for USB Port Power Management

Focusing on USB port power management in a computer:

1.Current Limit Setting

- Set Current Limit for Each Channel: Connect resistors from the ILIM1 and ILIM2 pins to GND. These resistors determine the current limit thresholds for each USB port.

2.Input and Output Connections

- Connect to Power Source: Link the VIN pin of the TPS2560DRCR to the 5V power supply, typical for USB applications.

- Load Connection: Attach each USB port to the OUT1 and OUT2 pins respectively.

3.Control Interface

- Enable Channels: The EN1 and EN2 pins control the on and off state of each channel. These can be connected to a microcontroller or switch for manual control.

4.Status Monitoring

- Fault Indication: Connect the FLT pin to a microcontroller or LED indicator. This pin signals fault conditions like overcurrent or thermal shutdown, providing real-time monitoring of port status.

Design Considerations

- Resistor Precision: Selecting precise resistor values for ILIM1 and ILIM2 is crucial for accurate current limiting.

- Power Supply Consistency: Ensure the power supply is stable and can handle the total current load of both USB ports.

- Thermal Management: Implement appropriate heat dissipation measures, as the TPS2560DRCR can generate heat during operation, especially when limiting high currents.

- PCB Layout: Design the PCB to minimize resistance and inductance in the traces, particularly important for maintaining stable power delivery and protection functionality.

In conclusion, the TPS2560DRCR is ideal for applications requiring dual-channel USB power management, such as in computers, charging devices, and industrial control systems. When designing circuits with this IC, it is essential to focus on accurate resistor selection, power supply stability, effective thermal management, and careful PCB layout. These considerations ensure the efficient and safe use of the TPS2560DRCR in managing and protecting USB power delivery systems.
