Texas Instruments TPS2552DBVR

Part No.:: TPS2552DBVR

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TPS2552DBVR.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 SOT23-6

In Stock:: 3154

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS2552DBVR Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
2.5V ~ 6.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1.5A
RdsOn(Typ):
85mOhm
InputType:
Non-Inverting
Features:
Slew Rate Controlled, Status Flag
FaultProtection:
Current Limiting (Adjustable), Over Temperature, UVLO
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TPS2552DBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS2552DBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS2552DBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS2552DBVR information

Views：

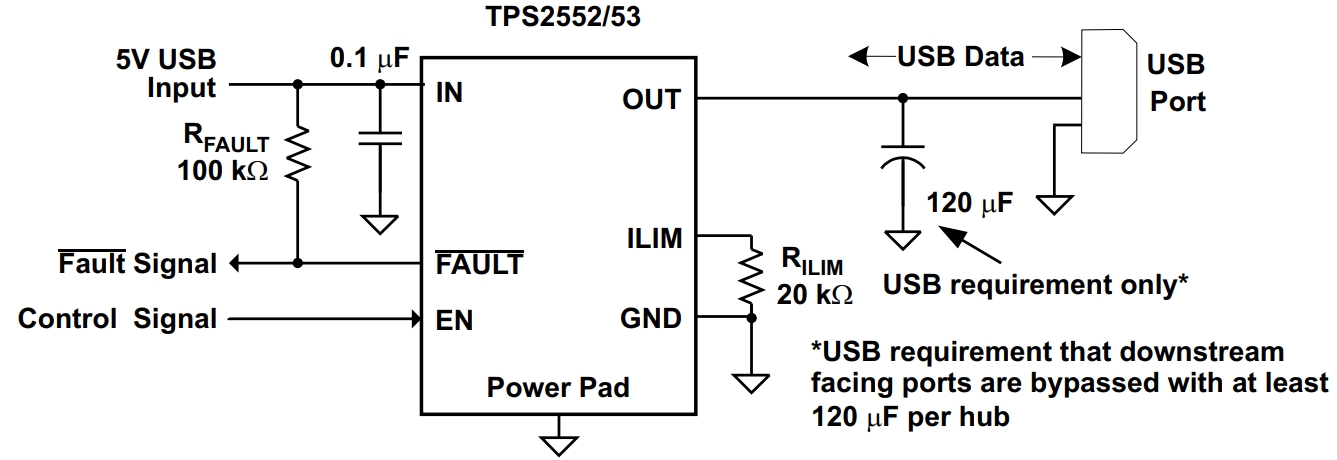

TPS2552DBVR Typical application Circuitry

TPS2552DBVR

The TPS2552DBVR is an integrated circuit designed for precise power distribution control. Because of its specific features and functionalities, this specialized IC is widely employed in many different electronic applications.

Capabilities of TPS2552DBVR

The TPS2552DBVR functions as a current-limited power switch with precise adjustment. This functionality is essential for protecting devices from excessive currents that can lead to damage or malfunction.

Application Scenarios

This IC is particularly useful in USB power delivery, battery charging circuits, and power management modules in consumer electronics, where accurate current limiting is crucial.

Key Parameter Features

- Adjustable Current Limit: Enables precise control of the current flow.

- Overcurrent Protection: Essential for safeguarding connected devices.

- Wide Operating Voltage Range: Accommodates various power levels.

- Quick Response Time: Reacts swiftly to overcurrent conditions.

- Low Power Consumption: Perfect for gadgets that run on batteries.

- Small Package: Ideal for applications with limited space.

Circuit Connection Example: USB Charging Circuit

Here's how the TPS2552DBVR can be integrated into a USB charging circuit.

1. Power Source Integration

- Vin Connection: Connect the input voltage (Vin) to pin 1 of the TPS2552DBVR. Ensure this voltage is within the IC's operating range.

2. Load Attachment

- Vout to USB Port: Connect pin 5 (Vout) to the power pin of a USB charging port.

3. Control Configuration

- Enable Pin Setup: Use pin 4 (EN) to control the switch, linking it to a microcontroller for automated control.

4. Stable Grounding

- Ground Connection: Pin 3 should be connected to the system ground.

5. Current Limit Setting

- Adjusting Current Limit: Place a resistor between pins 2 (ILIM) and 3 (GND) to set the desired current limit for charging.

6. Noise Reduction

- Decoupling Capacitor: Install a capacitor near the Vin pin to stabilize the power supply and reduce noise.

Design Considerations

When designing a circuit with the TPS2552DBVR, it's crucial to consider the power requirements of the USB device, the quality of the power supply, and the thermal management of the circuit, especially in compact or enclosed spaces.

In summary, the TPS2552DBVR is a versatile and efficient IC, ideal for applications requiring precise current limitation and overcurrent protection, such as USB charging circuits. Its ability to handle a wide voltage range, along with its rapid response to overcurrent situations and low power consumption, makes it an essential component in modern electronic designs. Proper attention to the current setting, power stability, and thermal considerations is vital for the effective integration of this IC in practical circuit applications.
