What is the Additional Feature ?

Name: TPS22964CYZPR
Brand: Texas Instruments
SKU: TPS22964CYZPR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TPS22964CYZPR

Part No.:: TPS22964CYZPR

Manufacturer:: Texas Instruments

Package:: 6-DSBGA

Datasheet:: TPS22964CYZPR.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 6DSBGA

In Stock:: 2260

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS22964CYZPR Specifications

Package/Case:
6-DSBGA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
1V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
3A
RdsOn(Typ):
13.3mOhm
InputType:
Non-Inverting
Features:
Load Discharge, Slew Rate Controlled
FaultProtection:
Reverse Current
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TPS22964CYZPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS22964CYZPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS22964CYZPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS22964CYZPR information

Views：

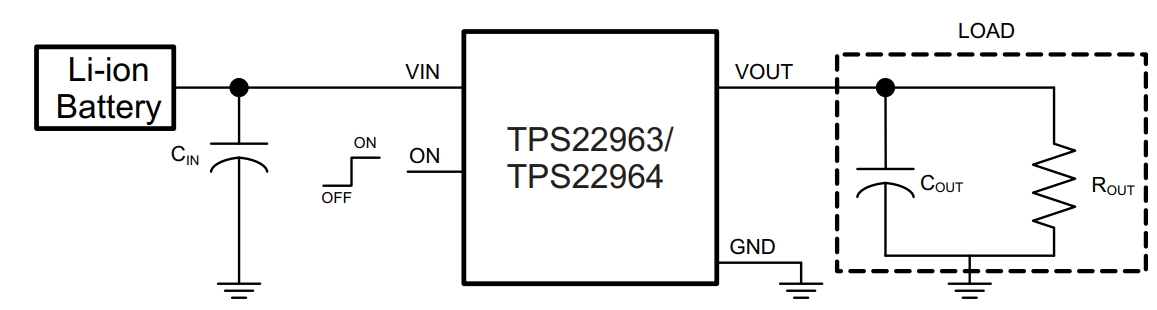

TPS22964CYZPR Typical application Circuitry

TPS22964CYZPR

The TPS22964CYZPR is a semiconductor device known for its specific functionality, adaptability in various application scenarios, and distinctive technical specifications.

Functionality of TPS22964CYZPR

The TPS22964CYZPR functions as a load switch. It is designed to efficiently control the connection and disconnection of a load (device or circuit) to a power source, effectively managing power distribution and minimizing power consumption when a load is not in use.

Application Scenarios

This chip is used in:

- Power Management for Consumer Electronics: Managing power in smartphones, tablets, and other portable devices.

- Industrial Systems: Controlling power distribution in industrial machinery.

- Battery-Powered Devices: Extending battery life by controlling power delivery.

- Automotive Applications: Managing power in automotive electrical systems.

Key Specifications

- Low On-Resistance (RDS(on)): Minimizes power loss during operation.

- Quick Switching: Connects and disconnects the load rapidly.

- Small Package Size: Ideal for applications where space is limited.

- Integrated Control Features: An easy-to-use enable function Example of Application: Smartphone Power Management

The TPS22964CYZPR in a smartphone is used to control the power supply to different parts of the device.

Circuit Connection Guide

1. Power Source Input (VIN Pin): Connect this pin to the main power source of the smartphone, like the battery.

2. Load Output (VOUT Pin): Attach this pin to the component or circuit within the smartphone that requires controlled power, such as the camera module.

3. Enable Control (EN Pin): Link this pin to a control signal, typically from a microcontroller, to turn the load switch on and off.

4. Ground Connection (GND Pin): This connection is necessary to create a single point of reference for the circuit as a whole.

5. Quick Output Discharge (QOD Pin): If rapid discharge of load capacitance is required when turning off, connect an external resistor to this pin.

6. Power Good Indicator (PG Pin): Optional connection to a status indicator, signaling when the load is successfully powered.

Design Considerations

When designing circuits with the TPS22964CYZPR, consider the following:

- Load Requirements: Recognize the power requirements of the particular component that needs to be managed.

- Control Signal Logic: Ensure compatibility between the control logic and the EN pin operation.

- Thermal Management: Design for heat dissipation, especially in compact smartphone interiors.

- Circuit Protection: Incorporate safeguards against overcurrent and electrostatic discharge (ESD).

- Efficiency Optimization: Utilize the low RDS(on) for efficient power transfer.

- Space Constraints: Use the compact package size in applications where space is at a premium.

- Reliability: Ensure the switch's reliability, given the frequent on/off operations in a smartphone.

- Power Good Signal: Consider using the PG pin for system diagnostics or user feedback.

By following these design principles and implementing the specified pin connections, the TPS22964CYZPR can be effectively utilized in smartphone applications to manage power distribution to various components, enhancing the overall power efficiency and battery life of the device.

TPS22964CYZPR FAQ

1. How to order TPS22964CYZPR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that TPS22964CYZPR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the TPS22964CYZPR. All suppliers must pass our qualification reviews before they can publish their products including TPS22964CYZPR on icwhale.com; we pay more attention to the channels and quality of TPS22964CYZPR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the TPS22964CYZPR price and inventory displayed accurate?

The price and inventory of TPS22964CYZPR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of TPS22964CYZPR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the TPS22964CYZPR we delivered, we will accept the replacement or return of the TPS22964CYZPR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of TPS22964CYZPR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
