Texas Instruments TPS22945DCKRG4

Part No.:: TPS22945DCKRG4

Manufacturer:: Texas Instruments

Package:: SC-70-5

Datasheet:: TPS22945DCKRG4.pdf

Description:: IC PWR SWITCH P-CHAN 1:1 SC70-5

In Stock:: 2183

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS22945DCKRG4 Specifications

Package/Case:
SC-70-5
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
P-Channel
Interface:
On/Off
Voltage-Load:
1.62V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
100mA
RdsOn(Typ):
400mOhm
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Over Temperature, UVLO
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

TPS22945DCKRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS22945DCKRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS22945DCKRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS22945DCKRG4 information

Views：

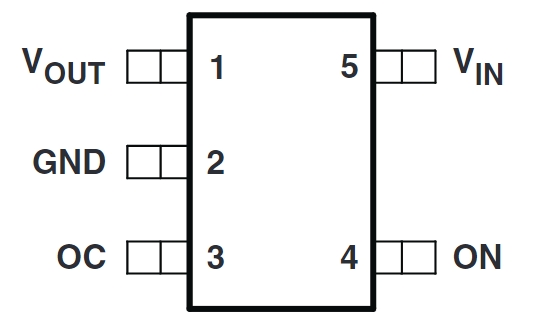

TPS22945DCKRG4 Typical application Circuitry

TPS22945DCKRG4

The TPS22945DCKRG4 is a specific model of an integrated circuit (IC) known for its distinct functionality and applicability in various scenarios. This section will explore its primary functions, typical application environments, key parameter features, and provide a detailed example of its circuit implementation in a specific scenario, along with crucial design considerations.

Functionality of TPS22945DCKRG4

The TPS22945DCKRG4 is primarily a low-input voltage, low rON load switch IC. It is designed for efficient power distribution and management in electronic circuits.

Application Scenarios

1. Portable Electronics: Used in smartphones, tablets, and other wearable devices for efficient power control.

2. Battery-Powered Applications: Suitable for power regulation in battery-operated gadgets.

3. Power Distribution Networks: Employed in sophisticated systems requiring precise power domain management.

Parameter Characteristics

- Low On-Resistance (rON): Ensures minimal voltage drop and power loss.

- Ultra-Low Quiescent Current: Ideal for battery-powered applications to extend battery life.

- Compact Package Size: Apt for space-constrained applications.

Detailed Circuit Connection for Portable Electronics

Focusing on power management in a portable electronic device:

Power Source Integration

- VIN Pin Connection: Attach the VIN pin of the TPS22945DCKRG4 to the device's power source, typically a battery or a regulated supply line.

Load Management

- VOUT Pin to Load: Connect the load, which could be a sensor, display, or microcontroller, to the VOUT pin.

Control Interface

- ON Pin for Switch Control: The ON pin is the control input that activates the switch. Applying a high logic level (relative to the device's logic standards) to this pin turns the switch on, enabling power flow from VIN to VOUT.

Pull-Down Resistor on ON Pin

- Defined State Assurance: Implementing a pull-down resistor on the ON pin ensures that the switch remains off unless actively driven high.

Design Considerations

- Compatibility with Voltage Ratings: Verify that the input voltage aligns with the TPS22945DCKRG4's specifications.

- Current Handling Capacity: Ensure the switch can handle the current requirements of the load.

- Thermal Management: Account for heat generation and implement appropriate cooling if necessary.

PCB Layout Optimization: Design the PCB layout to minimize parasitic resistances and inductances, which are crucial for maintaining stable and efficient power delivery.

In conclusion, the TPS22945DCKRG4 is optimally suited for applications requiring efficient power distribution and control, especially in portable electronics, battery-powered devices, and complex power distribution networks. Key considerations when designing circuits with this IC include ensuring compatibility with voltage ratings, understanding the current handling capacity, managing thermal aspects, and optimizing the PCB layout. These factors are essential for the effective and reliable utilization of the TPS22945DCKRG4 in various electronic applications.
