Name: TPS22916CYFPR
Brand: Texas Instruments
SKU: TPS22916CYFPR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TPS22916CYFPR

Part No.:: TPS22916CYFPR

Manufacturer:: Texas Instruments

Package:: 4-DSBGA

Datasheet:: TPS22916CYFPR.pdf

Description:: IC PWR SWITCH P-CHAN 1:1 4DSBGA

In Stock:: 3984

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS22916CYFPR Specifications

Package/Case:
4-DSBGA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
P-Channel
Interface:
-
Voltage-Load:
5.5V
Voltage-Supply(Vcc/Vdd):
1V ~ 5.5V
Current-Output(Max):
2A
RdsOn(Typ):
200mOhm
InputType:
Non-Inverting
Features:
Slew Rate Controlled
FaultProtection:
Reverse Current
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TPS22916CYFPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS22916CYFPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS22916CYFPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS22916CYFPR information

Views：

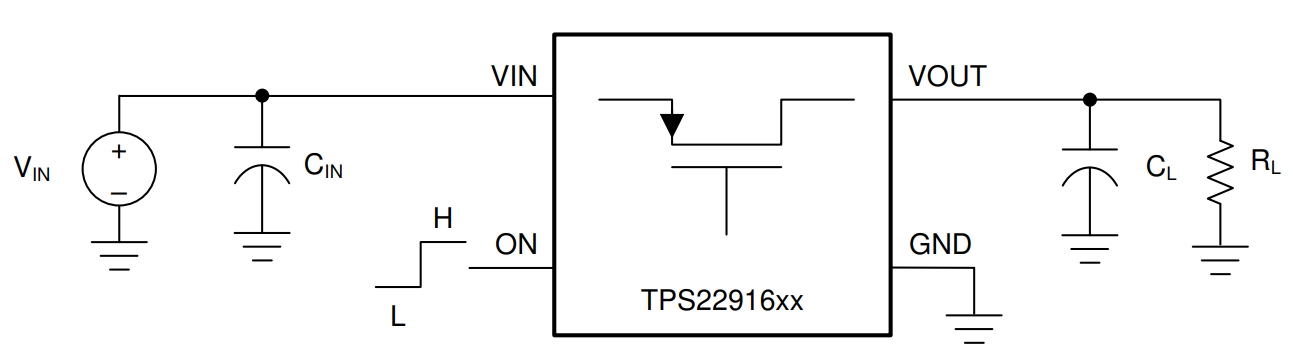

TPS22916CYFPR Typical application Circuitry

TPS22916CYFPR

The TPS22916CYFPR is an integrated circuit (IC) with distinct functionalities and a variety of application scenarios.

Functional Profile of TPS22916CYFPR

The TPS22916CYFPR is primarily utilized as a Power Management IC, specifically as a Load Switch. This IC plays a pivotal role in controlling the power supply to various components in an electronic system.

Application Scenarios

It is widely used in scenarios like Mobile Devices, Wearable Technology, and Smart Home Systems. Its efficiency in power management makes it particularly suitable for devices where power conservation and space efficiency are critical.

Key Specifications and Features

- High Efficiency: Ensures minimal power loss in operation.

- Ultra-Low Quiescent Current: This characteristic is crucial for battery-powered devices.

- Small Package Size: Makes it ideal for compact electronic assemblies.

Circuit Implementation: Application in a Wearable Device

Let's consider the TPS22916CYFPR in a wearable device's power management circuit.

1. Voltage Input: Connect the supply voltage (e.g., a lithium-ion battery) to the input pin (Pin 1). This pin is designated for the incoming power source.

2. Output to Load: Attach the load, which could be a sensor or microcontroller, to the output pin (Pin 5). This is where the controlled power is outputted.

3. Enabling the Switch: The enable pin (Pin 4) is crucial for controlling the switch's state. Applying a high logic level to this pin turns on the switch.

4. Grounding the Circuit: Pin 2 needs to be linked to the ground of the system. This guarantees the IC's stability and appropriate operation.

5. Voltage Regulation Stability: Adding a decoupling capacitor (e.g., 10 µF) between the input pin and ground can enhance stability.

Design Considerations

While designing with the TPS22916CYFPR, several factors should be taken into account:

- Load's Power Necessity: The load should not exceed the IC's capacity.

- Heat Dissipation: Adequate measures for cooling must be considered.

- Enable Pin Logic Compatibility: The logic level for the enable pin should match the controlling signal source.

This overview of the TPS22916CYFPR's functionality, application environments, and a detailed circuit implementation illustrates its importance in efficient power management, especially in compact electronic devices. Understanding these elements is crucial for designers integrating this IC into their projects.
