Texas Instruments TPS22915BYFPR

Part No.:: TPS22915BYFPR

Manufacturer:: Texas Instruments

Package:: 4-DSBGA

Datasheet:: TPS22915BYFPR.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 4DSBGA

In Stock:: 2846

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS22915BYFPR Specifications

Package/Case:
4-DSBGA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
1.05V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
2A
RdsOn(Typ):
37mOhm
InputType:
Non-Inverting
Features:
Load Discharge, Slew Rate Controlled
FaultProtection:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TPS22915BYFPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS22915BYFPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS22915BYFPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS22915BYFPR information

Views：

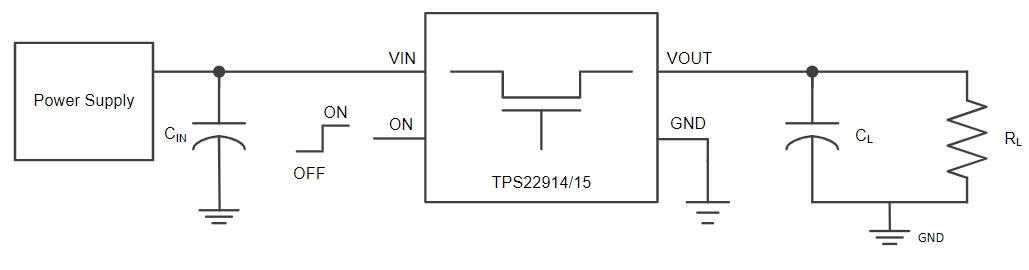

TPS22915BYFPR Typical application Circuitry

TPS22915BYFPR

The TPS22915BYFPR is a specialized integrated circuit (IC) chip, known for its distinct functionalities and suitability in various applications. Here, I'll discuss its primary functions, application environments, key parameter features, and provide a detailed circuit connection example for a specific application, including important design considerations.

Functionality of TPS22915BYFPR

The TPS22915BYFPR is mainly a low rON load switch IC. It is designed for efficient power distribution and control in electronic circuits, with a focus on minimizing power loss and managing load effectively.

Application Scenarios

1. Battery-Powered Devices: Ideal for smartphones, tablets, and wearable technology where efficient power management is crucial.

2. Power Distribution in Electronics: Suitable for managing power in various electronic devices, such as laptops and cameras.

3. Industrial Control Systems: Used in industrial environments for controlled power distribution to sensors and actuators.

Parameter Characteristics

- Low On-Resistance (rON): Reduces power loss and improves efficiency.

- Small Package Size: Well-suited for compact electronic devices.

- Controlled Slew Rate: Limits inrush current, beneficial for sensitive electronics.

Detailed Circuit Connection for Battery-Powered Device

Focusing on power management in a smartphone:

Power Source Connection

- VIN Pin Connection: Link the VIN pin of the TPS22915BYFPR to the device's battery or main power line.

Load Integration

- Connect Load to VOUT: Attach the smartphone's internal circuitry, like the processor or memory, to the VOUT pin.

Control Interface

- ON Pin Activation: Utilize the ON pin to control the power switch. Applying a high logic level turns the switch on, allowing power to flow from VIN to VOUT.

Pull-Down Resistor for ON Pin

- Stable OFF State: Incorporate a pull-down resistor on the ON pin to ensure the switch remains off when not in use.

Design Considerations

- Voltage Compatibility: The input voltage should be within the TPS22915BYFPR's operating range.

- Load Current: Ensure the switch's current capacity matches the load requirements.

- Heat Dissipation: Address potential heat generation, especially under high load conditions.

- PCB Layout Efficiency: Optimize the PCB layout to reduce parasitic elements and ensure stable operation.

In conclusion, the

TPS22915BYFPR is highly suitable for applications requiring efficient power distribution and control, particularly in battery-powered devices, electronic power distribution systems, and industrial control applications. When designing circuits with this IC, key considerations include ensuring voltage compatibility, matching load current requirements, managing heat dissipation, and optimizing the PCB layout. These factors are crucial for the effective and reliable use of the TPS22915BYFPR in various electronic applications.
