Texas Instruments TPS2052BDRBT

Part No.:: TPS2052BDRBT

Manufacturer:: Texas Instruments

Package:: 8-SON (3x3)

Datasheet:: TPS2052BDRBT.pdf

Description:: IC PWR SWITCH N-CHAN 1:2 8SON

In Stock:: 2258

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS2052BDRBT Specifications

Package/Case:
8-SON (3x3)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:2
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
2.7V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
70mOhm
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Fixed), Over Temperature, UVLO
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

TPS2052BDRBT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS2052BDRBT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS2052BDRBT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS2052BDRBT information

Views：

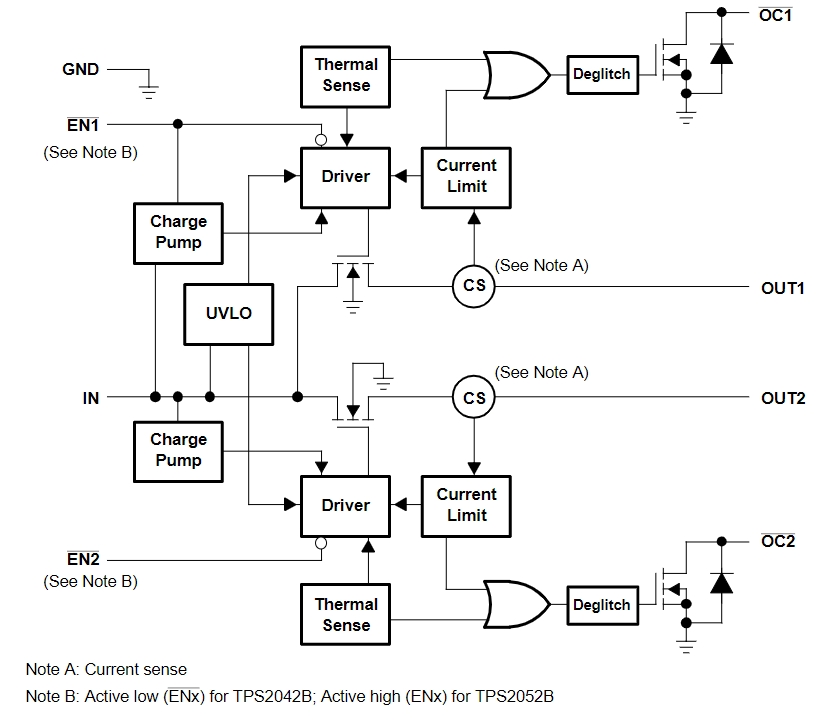

TPS2052BDRBT Typical application Circuitry

TPS2052BDRBT

The TPS2052BDRBT is an integrated circuit renowned for its specialized functionality and wide-ranging applications. This detailed exploration will focus on the TPS2052BDRBT's functions, common application scenarios, key parameters, an example of a specific circuit implementation using the TPS2052BDRBT .

Functionality

The TPS2052BDRBT is a dual-channel, current-limited power distribution switch. It is designed for applications requiring controlled and safe power distribution across two independent channels, highlighting precision and efficiency.

Application Scenarios

The TPS2052BDRBT is typically employed in dual USB port power distribution, multi-peripheral power management, and other electronic systems where independent management of two power channels is critical. The dual-channel capability of the TPS2052BDRBT makes it particularly useful for sophisticated power management setups.

Parameter Characteristics

Key features of the TPS2052BDRBT include its independent dual output channels, a wide operating voltage range, integrated overcurrent and thermal protection, and low on-resistance. These attributes ensure the TPS2052BDRBT's adaptability and reliability in diverse operational contexts.

Circuit Implementation with TPS2052BDRBT: Dual USB Port Power Management

Implementing the TPS2052BDRBT in a dual USB port power management circuit involves the following steps:

1. Voltage Inputs: Connect a 5V power source to Pins 1 (VIN1) and 8 (VIN2) of the TPS2052BDRBT, serving each channel.

2. Dual Output Channels: Attach Pin 5 (VOUT1) to the power line of the first USB port and Pin 4 (VOUT2) to the power line of the second USB port.

3. Control for Each Channel: Link Pins 2 (EN1) and 7 (EN2) to distinct control mechanisms, such as GPIOs on a microcontroller, for independent channel operation.

4. Overcurrent and Fault Reportin: Utilize Pins 3 (FAULT1) and 6 (FAULT2) to connect to a microcontroller, allowing individual status monitoring for each channel.

5. Grounding the TPS2052BDRBT: Ensure that Pin 9 (GND) is properly grounded to maintain the circuit's stability.

Design Considerations with TPS2052BDRBT

When designing circuits using the TPS2052BDRBT, it is essential to consider the power requirements of devices connected to each USB port, ensure stable voltage inputs for both channels, implement efficient thermal management, and utilize the TPS2052BDRBT's fault reporting features for safety. The selection of compatible external components and precise PCB layout are crucial for the TPS2052BDRBT's optimal performance.

The TPS2052BDRBT offers a robust solution for dual-channel power distribution in applications such as dual USB port power management. Its ability to independently control and protect each channel makes the TPS2052BDRBT a reliable choice for complex electronic systems. Careful attention to circuit layout and component selection using the TPS2052BDRBT is key to ensuring efficient, reliable, and safe operation.
