Texas Instruments TPS2052BDRBR

Part No.:: TPS2052BDRBR

Manufacturer:: Texas Instruments

Package:: 8-SON (3x3)

Datasheet:: TPS2052BDRBR.pdf

Description:: IC PWR SWITCH N-CHAN 1:2 8SON

In Stock:: 2400

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS2052BDRBR Specifications

Package/Case:
8-SON (3x3)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:2
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
2.7V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
70mOhm
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Fixed), Over Temperature, UVLO
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

TPS2052BDRBR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS2052BDRBR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS2052BDRBR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS2052BDRBR information

Views：

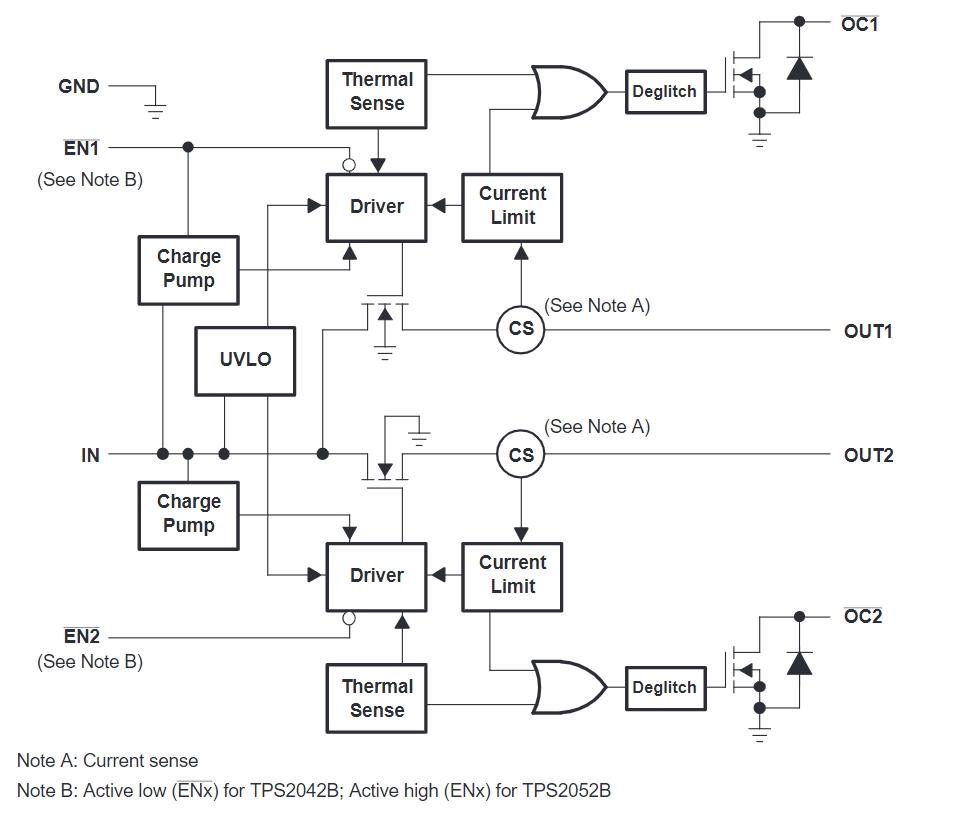

TPS2052BDRBR Typical application Circuitry

TPS2052BDRBR

The TPS2052BDRBR is an integrated circuit known for its distinct functionality and suitability for a range of applications. This in-depth overview will explore the functionality of the TPS2052BDRBR, its typical application scenarios, key parameters, an example of a specific circuit implementation using the TPS2052BDRBR.

Functionality

The TPS2052BDRBR is a dual-channel, current-limited power distribution switch. It is tailored for applications that demand controlled and safe power distribution across two independent channels, focusing on precision and operational efficiency.

Application Scenarios

The TPS2052BDRBR is commonly utilized in dual USB port power distribution, multi-peripheral power management, and in other electronic systems where managing two power channels independently is crucial. The dual-channel feature of the TPS2052BDRBR makes it particularly useful in complex power management solutions.

Parameter Characteristics

Noteworthy features of the TPS2052BDRBR include its independent dual output channels, broad operating voltage range, integrated overcurrent and thermal protection, and low on-resistance, ensuring the TPS2052BDRBR's adaptability and reliability in various operational environments.

Circuit Implementation with TPS2052BDRBR: Dual USB Port Power Management

Implementing the TPS2052BDRBR in a dual USB port power management circuit involves the following:

1. Voltage Inputs: Connect a 5V power supply to Pins 1 (VIN1) and 8 (VIN2) of the TPS2052BDRBR, each servicing a separate channel.

2. Dual Output Channels: Attach Pin 5 (VOUT1) to the first USB port's power line and Pin 4 (VOUT2) to the power line of the second USB port.

3. Control for Each Channel: Link Pins 2 (EN1) and 7 (EN2) to separate control mechanisms, like GPIOs on a microcontroller, for independent operation of each channel.

4. Overcurrent and Fault Reporting: Utilize Pins 3 (FAULT1) and 6 (FAULT2) for connections to a microcontroller, allowing individual status monitoring for each channel.

5. Grounding the TPS2052BDRBR: Ensure that Pin 9 (GND) is adequately grounded to maintain circuit stability.

Design Considerations with TPS2052BDRBR

In designing circuits with the TPS2052BDRBR, it's crucial to consider the power requirements of devices connected to each USB port, ensuring stable voltage inputs for both channels, effective thermal management, and making full use of the TPS2052BDRBR's dual fault reporting features for safety. The selection of external components compatible with the TPS2052BDRBR and precise PCB layout are essential for optimal performance.

The TPS2052BDRBR is an efficient solution for dual-channel power distribution, particularly in applications such as dual USB port power management. Its capability to independently control and protect each channel makes the TPS2052BDRBR a dependable choice for complex electronic systems. Meticulous attention to the circuit layout and component selection using the TPS2052BDRBR is key to ensuring efficient, reliable, and safe operation.
