Name: TPS2041BDBVR
Brand: Texas Instruments
SKU: TPS2041BDBVR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TPS2041BDBVR

Part No.:: TPS2041BDBVR

Manufacturer:: Texas Instruments

Package:: SOT-23-5

Datasheet:: TPS2041BDBVR.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 SOT23-5

In Stock:: 2593

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS2041BDBVR Specifications

Package/Case:
SOT-23-5
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
2.7V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
95mOhm
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Fixed), Over Temperature, UVLO
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

TPS2041BDBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS2041BDBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS2041BDBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS2041BDBVR information

Views：

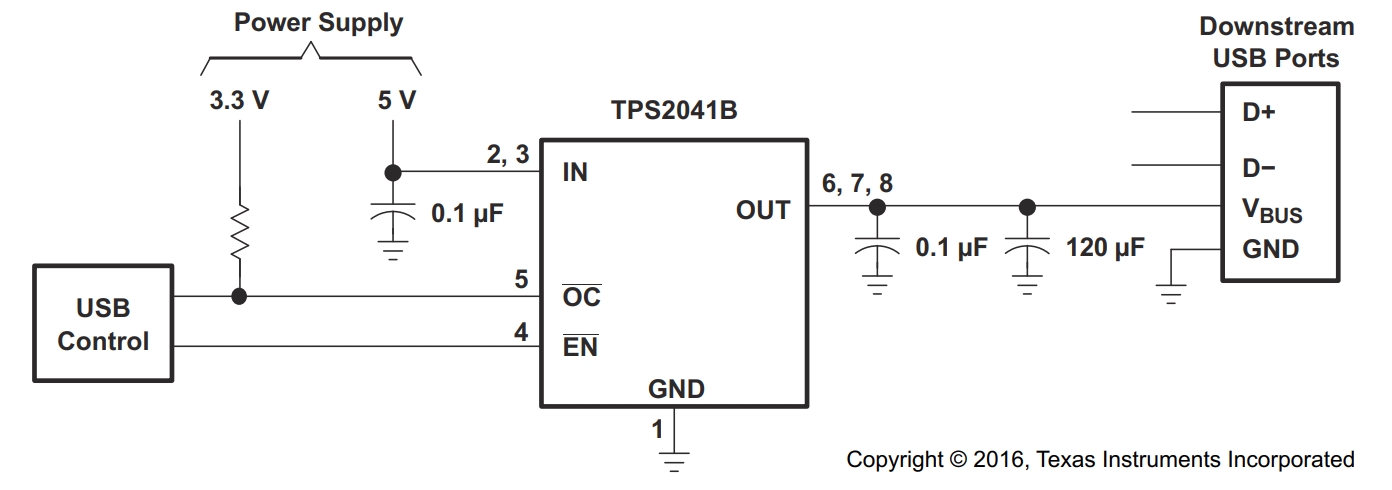

TPS2041BDBVR Typical application Circuitry

TPS2041BDBVR

The TPS2041BDBVR is a specialized integrated circuit (IC) with unique features and applications. Let's explore its function, application scenarios, key parameters, a detailed example of its circuit implementation, and design considerations.

Features of the TPS2041BDBVR

The TPS2041BDBVR is a power distribution switch with one channel and limited current. It's tailored for applications where precision current limiting is required, especially in USB power distribution.

Application Scenarios

This TPS2041BDBVR chip is frequently used in USB hubs, peripheral ports, and other applications where protected power distribution is necessary. It's highly suitable for systems needing overcurrent protection.

Parameter Characteristics

Notable parameters include its wide operating voltage range, built-in overcurrent and thermal protection, and low on-resistance. This IC is designed to operate efficiently and reliably under varying conditions.

Circuit Implementation: USB Power Distribution

Implementing TPS2041BDBVR in a USB power distribution circuit:

1. Voltage Input: Connect the system power source (typically 5V) to Pin 1 (VIN).

2. Power Output: Pin 5 (VOUT) connects to the USB port's power line.

3. Enable Control: Pin 2 (EN) is linked to a microcontroller or a switch for enabling or disabling the output.

4. Overcurrent and Fault Reporting:Pin 3 (FAULT) can be connected to a microcontroller for status indication.

5. Ground Connection:Pin 4 (GND) should be properly grounded for circuit stability.

Design Considerations

While designing with the TPS2041BDBVR, consider the power requirements of the USB device, ensure stable voltage input, implement proper heat dissipation, and utilize the fault reporting feature for enhanced safety. Component selection and PCB layout also play critical roles in the overall performance.

The TPS2041BDBVR is an effective solution for controlled power distribution in USB and other applications requiring precise current limiting and protection features. In the context of USB power distribution, attention to detail in circuit design is essential for ensuring efficient, reliable operation, and device safety.
