Texas Instruments TMS320C6657CZH25

Part No.:: TMS320C6657CZH25

Manufacturer:: Texas Instruments

Package:

Datasheet:: TMS320C6657CZH25.pdf

Description:: IC DSP FIX/FLOAT POINT 625FCBGA

In Stock:: 3762

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TMS320C6657CZH25 Specifications

Package/Case:
Packaging:
Tray
Series:
TMS320C66x
ProductStatus:
Active
Type:
Fixed/Floating Point
Interface:
DDR3, EBI/EMI, Ethernet, McBSP, PCIe, I²C, SPI, UART, UPP
ClockRate:
1.25GHz
Non-VolatileMemory:
ROM (128kB)
On-ChipRAM:
2.06MB
Voltage-I/O:
1.0V, 1.5V, 1.8V
Voltage-Core:
1.00V
OperatingTemperature:
0°C ~ 85°C (TC)
MountingType:
Surface Mount

TMS320C6657CZH25 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TMS320C6657CZH25 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TMS320C6657CZH25 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TMS320C6657CZH25 information

Views：

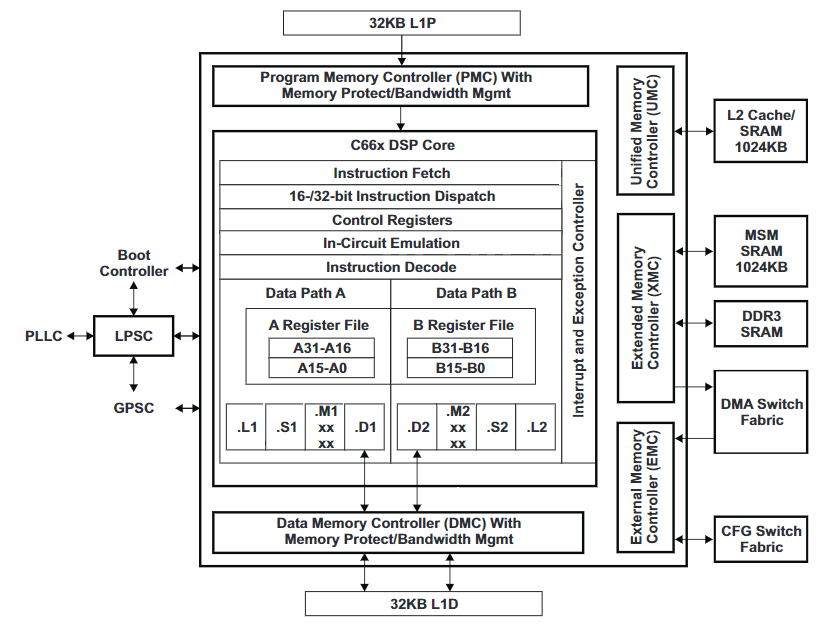

TMS320C6657CZH25 Typical application Circuitry

TMS320C6657CZH25

Texas Instruments produces the TMS320C6657CZH25, a digital signal processor (DSP) with Keystone Multicore Architecture. This DSP is highly complex and thus requires careful consideration when connecting its pins. Here is a basic guide to connecting some of its pins:

1. Power Pins: ADDS (Pins C1, E2, H?, J2, N3, R1, T1, V2, AA3, AC2) and VDDSHV (Pins R2, V3) are the supply voltage pins for the core logic and should be connected to a 1.1V power source. For I/O supply voltage, connect VDD18 (Pins M1, T2, AA1) to a 1.8V power source. Always connect all VSS (ground) pins to your system ground.

2. Boot Configuration Pins: TMS320C6657CZH25 has POSTCODE pins (Pins P3-P5) to select the boot mode on startup. According to your specific application, you'll need to connect these to VDD or GND.

3. EMIF16 Interface: A0-A14 (Various pins from D5-J5) are address pins for the external memory interface. D0-D15 (Various pins from A4-D6 and L4-P6) are the corresponding data pins. The exact connection will depend on the external memory being used.

4. Reset and Power Down: The TRST (Pin R6) is a test reset input and should be tied to a suitable logic level. Connect the RESET (Pin K6) to your system reset. The PDN (Pin U6) is a power down control pin which you can use to put the DSP in low power mode when needed.

5. JTAG Interface: The JTAG interface consists of TDI (Pin P6), TO (Pin N6), TCK (Pin M6), and TMS (Pin T6). These should be connected to your JTAG programmer/debugger.

6. SPI Interface: TMS320C6657CZH25 provides SPI interface which includes SPI_MOST (Pin V6), SPI_MISS (Pin W6), SPI_ELK (Pin Y6) and SPI_STE (Pin AA6).

7. External Clock Input: The CL KIN pin (Pin H?) should be connected to your external clock source.

Please note that this is a basic guide to understanding the function of various pins on the TMS320C6657CZH25. Given the complexity and versatility of this DSP, it is recommended to thoroughly read the official data sheet and technical reference manual to design an accurate and efficient connection scheme for your specific application. Remember to add necessary bypass and decoupling capacitors as per the data sheet of TMS320C6657CZH25.
