What is the Additional Feature ?

Name: TLV3701IDBVTG4
Brand: Texas Instruments
SKU: TLV3701IDBVTG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TLV3701IDBVTG4

Part No.:: TLV3701IDBVTG4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: TLV3701IDBVTG4.pdf

Description:: IC COMPARATR NANOPWR P-P SOT23-5

In Stock:: 2950

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV3701IDBVTG4 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
General Purpose
NumberofElements:
1
OutputType:
CMOS, Push-Pull, Rail-to-Rail
Voltage-SupplySingle/Dual(±):
2.7V ~ 16V, ±1.35V ~ 8V
Voltage-InputOffset(Max):
5mV @ 15V
Current-InputBias(Max):
250pA @ 15V
Current-Output(Typ):
10mA
Current-Quiescent(Max):
1µA
CMRRPSRR(Typ):
88dB CMRR, 105dB PSRR
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV3701IDBVTG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV3701IDBVTG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV3701IDBVTG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV3701IDBVTG4 information

Views：

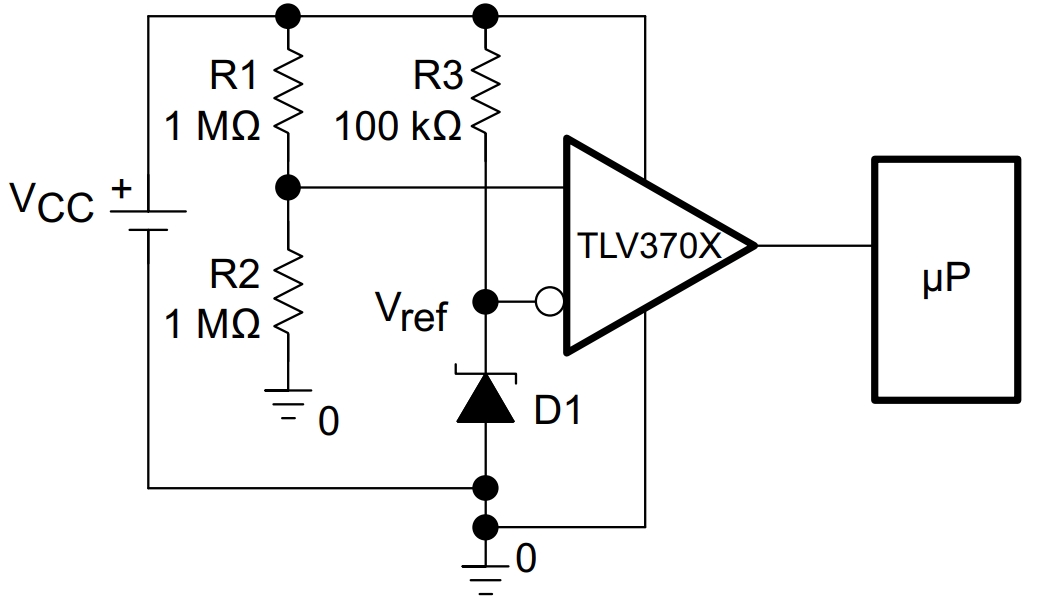

TLV3701IDBVTG4 Typical application Circuitry

TLV3701IDBVTG4

The TLV3701IDBVTG4 is a micropower comparator chip, notable for its low power consumption and push-pull output configuration. This component is designed for precision voltage comparison in a variety of applications where power efficiency and reliable performance are paramount.

Functionality of the TLV3701IDBVTG4

The TLV3701IDBVTG4 is adept at comparing two input voltages and providing a digital output signal, making it suitable for systems that require accurate and efficient voltage monitoring.

Application Scenarios

1. Battery-Powered Devices: Ideal for applications in portable electronics where power conservation is crucial.

2. Threshold Sensing in Industrial Automation: Suitable for monitoring and controlling processes based on specific voltage thresholds.

3. Automotive Systems: Used in vehicles for voltage monitoring and signal processing applications.

Key Specifications

- Micropower Operation: Minimizes power consumption, extending battery life in portable applications.

- Push-Pull Output: Eliminates the need for external pull-up resistors, simplifying circuit design.

- Wide Supply Voltage Range: Offers flexibility in accommodating different system voltages.

- High Input Impedance: Reduces loading on the input signal source.

Circuit Design: Threshold Sensing in an Industrial Automation System

Developing a circuit using the TLV3701IDBVTG4 for threshold sensing in an industrial automation system:

Step 1: Power Supply Connection

- Pin 5 (V+): Connect to a 5V power supply, standard in industrial control systems.

- Pin 4 (GND): Ground to provide a stable reference for the comparator.

Step 2: Setting Up Input Voltages

- Pin 2 (IN+): Attach to the control system's sensor output, which provides the signal to be monitored.

- Pin 3 (IN-): Link to a reference voltage source that defines the threshold for comparison.

Step 3: Configuring the Output

- Pin 1 (OUT): Direct the output to an industrial controller or alarm system, which responds based on the voltage comparison result.

Step 4: Reference Voltage Implementation

- Apply a precise and stable reference voltage at Pin 3 to accurately set the desired threshold level.

Step 5: Noise Mitigation

- Add a bypass capacitor near the power supply pins to reduce electrical noise and stabilize the operation.

Design Considerations

- Energy Efficiency: Essential in industrial automation systems to optimize power usage.

- Signal Reliability: Crucial for accurate voltage comparison and decision-making.

- Circuit Simplicity: Important to ensure ease of integration and maintenance.

- Environmental Stability: Necessary to maintain consistent performance under varying industrial conditions.

In conclusion, the TLV3701IDBVTG4 is highly suitable for threshold sensing in industrial automation systems, where energy efficiency, signal reliability, circuit simplicity, and environmental stability are key considerations. Designing circuits with the TLV3701IDBVTG4 involves a strategic approach to balance these factors, ensuring effective and reliable voltage monitoring in complex industrial environments.
