STMicroelectronics LM211DT

Part No.:: LM211DT

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM211DT.pdf

Description:: IC VOLTAGE COMPARATOR 8-SOIC

In Stock:: 11608

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM211DT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM211DT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM211DT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

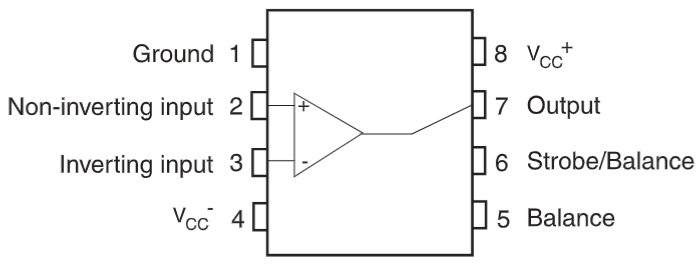

LM211DT Typical application Circuitry

LM211DT

LM211DT is a voltage comparator chip that is designed to provide fast and reliable comparison of input voltages. It is widely used in applications that require a decision to be made based on the comparison of two voltages, such as zero-crossing detectors, level shifters, and simple analog-to-digital converters.

Application Scenarios for LM211DT

- Zero-Crossing Detectors: In power electronics, for detecting the point where an AC signal crosses the zero-voltage level to control power switching devices.

- Window Comparators: For monitoring a signal to ensure it stays within a certain voltage range, often used in battery charging circuits to prevent overcharging.

- Level Shifters: In digital circuits, to translate signal levels from one voltage domain to another, ensuring compatibility between different logic families.

- Relay Drivers: To control the on/off state of relays based on a specific voltage threshold, used in various automation and control applications.

Parameter Features of LM211DT

- Fast Response Time: Ensures quick decision-making in applications where timing is critical.

- Wide Supply Voltage Range: Compatible with a broad range of supply voltages, accommodating diverse application requirements.

- Differential Input Voltage Range: Capable of handling a wide range of differential input voltages, making it suitable for various comparison tasks.

- Output Stage: Can directly drive loads, including relays and lamps, simplifying circuit design.

Application Example: Overvoltage Protection Circuit

Designing an Overvoltage Protection Circuit Using LM211DT

To create a circuit that disconnects a load when the input voltage exceeds a certain threshold, using the LM211DT, follow these detailed instructions, focusing on key pin connections and design considerations:

- Power Supply Connection: Connect the positive supply voltage to the Vcc pin of LM211DT and the negative supply or ground to the GND pin. Ensure the supply voltage is within the chip's specified range.

- Voltage Threshold Setting: Use a voltage divider with two resistors connected from Vcc to ground. Tap the midpoint and connect it to the inverting input (−) of LM211DT. This sets your reference threshold voltage.

- Input Voltage Sensing: Connect the non-inverting input (+) of LM211DT to the point in the circuit where the voltage needs to be monitored. When the sensed voltage exceeds the threshold, the output of LM211DT will change state.

- Output Configuration: Connect the output of LM211DT to the control gate of a MOSFET or to the base of a transistor, which in turn controls the connection of the load. A resistor may be needed in series with the base/gate for current limiting.

- Protective Diode: Place a flyback diode across the load, especially if it's inductive, to protect the LM211DT and switching transistor from voltage spikes when the load is disconnected.

Design Considerations for LM211DT

When designing with LM211DT, consider the following:

- Hysteresis: Adding positive feedback through a resistor between the output and the non-inverting input (+) can introduce hysteresis, preventing oscillations near the threshold voltage.

- Input Bias Current: Consider the effect of input bias current on the voltage divider at the inverting input, as it might slightly shift the threshold voltage.

- Output Load: Ensure the output load, whether a relay, LED, or transistor base, does not exceed the current driving capability of the LM211DT.

- Noise Immunity: Use bypass capacitors near the power supply pins to filter out noise and provide stable operation.

By carefully implementing these guidelines, the LM211DT can be effectively utilized in an overvoltage protection circuit, providing a reliable means to safeguard sensitive electronic equipment from damaging voltage levels.

LM211DT information

LM211DT Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
1
OutputType:
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
Voltage-SupplySingle/Dual(±):
5V ~ 30V, ±2.5V ~ 15V
Voltage-InputOffset(Max):
3mV @ ±15V
Current-InputBias(Max):
0.1µA @ ±15V
Current-Output(Typ):
50mA
Current-Quiescent(Max):
6mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount
