Texas Instruments TLV3701IDBVT

Part No.:: TLV3701IDBVT

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: TLV3701IDBVT.pdf

Description:: IC OUT COMPARATR NANOPWR SOT23-5

In Stock:: 3252

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV3701IDBVT Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
1
OutputType:
CMOS, Push-Pull, Rail-to-Rail
Voltage-SupplySingle/Dual(±):
2.7V ~ 16V, ±1.35V ~ 8V
Voltage-InputOffset(Max):
5mV @ 15V
Current-InputBias(Max):
250pA @ 15V
Current-Output(Typ):
10mA
Current-Quiescent(Max):
1µA
CMRRPSRR(Typ):
88dB CMRR, 105dB PSRR
PropagationDelay(Max):
-
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV3701IDBVT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV3701IDBVT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV3701IDBVT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV3701IDBVT information

Views：

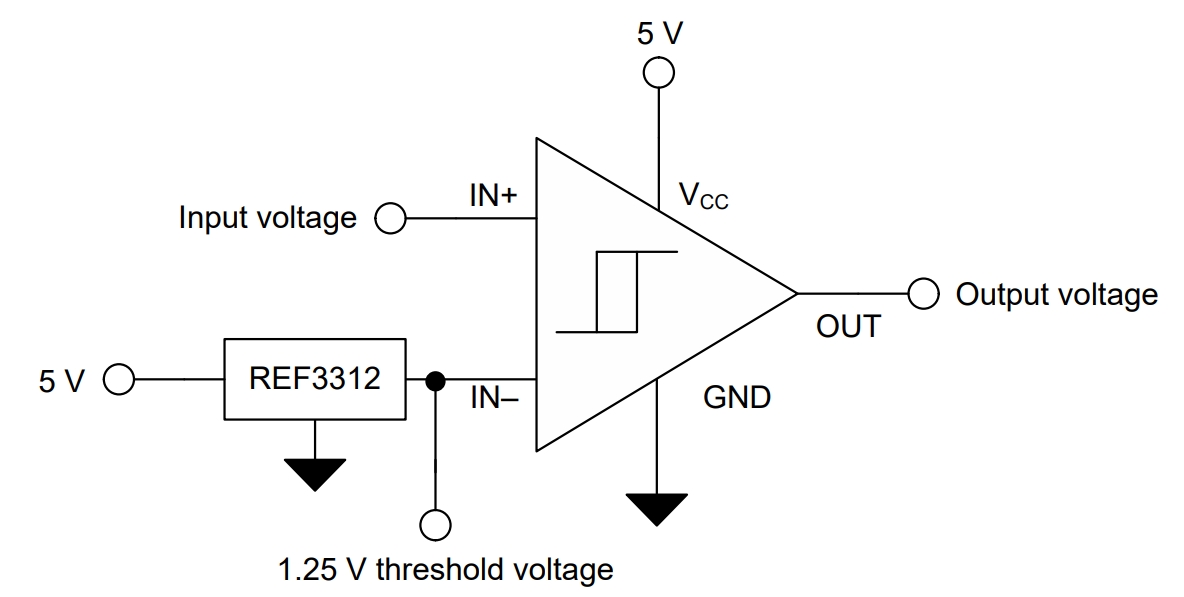

TLV3701IDBVT Typical application Circuitry

TLV3701IDBVT

The TLV3701IDBVT is a micropower, push-pull output comparator known for its low power consumption and wide supply voltage range. This chip is particularly designed for applications requiring efficient voltage comparison with minimal power draw.

Functionality of the TLV3701IDBVT

The TLV3701IDBVT excels at comparing two input voltages and generating a corresponding digital output, which is crucial in systems that need to monitor and respond to varying voltage levels.

Application Scenarios

1. Battery-Powered Systems: Ideal for low-power devices like wearables and portable electronics.

2. Threshold Detection in Sensor Networks: Suitable for detecting specific voltage levels in environmental monitoring systems.

3. Automotive Electronics: Used in car systems for voltage monitoring and signal processing.

Key Specifications

- Micropower Operation: Ensures low power usage, extending battery life in portable devices.

- Push-Pull Output: Provides a robust digital output without needing a pull-up resistor.

- Wide Supply Voltage Range: Compatible with various system voltage levels.

- High Input Impedance: Minimizes loading on the signal source.

Circuit Design: Voltage Threshold Detection in Sensor Networks

Designing a circuit using the TLV3701IDBVT for voltage threshold detection in an environmental sensor network:

Step 1: Power Supply Connection

- Pin 5 (V+): Connect to a 3V power source, typical in sensor network systems.

- Pin 4 (GND): Ground to establish a stable operation point.

Step 2: Input Voltage Setup

- Pin 2 (IN+): Attach to the sensor output, which provides the voltage to be monitored.

- Pin 3 (IN-): Connect to a reference voltage that sets the desired threshold for detection.

Step 3: Output Configuration

- Pin 1 (OUT): Route to a microcontroller or signal processing unit, which will act upon the detection of the threshold crossing.

Step 4: Reference Voltage Application

- Apply a stable reference voltage at Pin 3 to accurately set the detection threshold.

Step 5: Noise Reduction

- Implement a decoupling capacitor near the power supply pins to minimize noise and enhance signal stability.

Design Considerations

- Power Efficiency: Critical in battery-operated sensor networks to maximize operational lifespan.

- Signal Accuracy: Vital for reliable voltage detection and system responsiveness.

- System Compatibility: Important for seamless integration with the sensor network's architecture.

- Environmental Robustness: Necessary to ensure stable performance under varying conditions.

In summary, the TLV3701IDBVT is highly effective in applications like voltage threshold detection in sensor networks, where power efficiency, signal accuracy, system compatibility, and environmental robustness are key. Designing circuits with the TLV3701IDBVT involves careful planning to ensure these aspects are well-addressed, guaranteeing effective and reliable performance in energy-sensitive and precision-critical applications.
