Texas Instruments TLV3502AIDR

Part No.:: TLV3502AIDR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TLV3502AIDR.pdf

Description:: IC COMPARATOR R-R HI-SPD 8-SOIC

In Stock:: 5000

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV3502AIDR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, Push-Pull, Rail-to-Rail, TTL
Voltage-SupplySingle/Dual(±):
2.7V ~ 5.5V, ±1.35V ~ 2.75V
Voltage-InputOffset(Max):
6.5mV @ 5.5V
Current-InputBias(Max):
10pA @ 5.5V
Current-Output(Typ):
-
Current-Quiescent(Max):
5mA
CMRRPSRR(Typ):
70dB CMRR, 100dB PSRR
PropagationDelay(Max):
10ns
Hysteresis:
6mV
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV3502AIDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV3502AIDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV3502AIDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV3502AIDR information

Views：

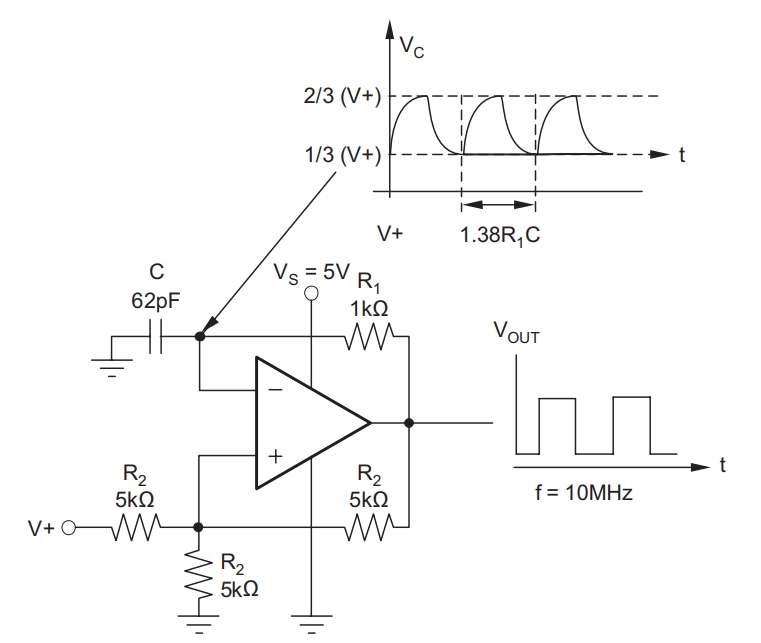

TLV3502AIDR Typical application Circuitry

TLV3502AIDR

The TLV3502AIDR is a high-speed, dual-channel comparator, renowned for its rapid response time and low power consumption. This component is specifically designed for applications that require fast and accurate voltage comparison, making it an essential component in various high-speed signal processing systems.

Functionality of the TLV3502AIDR

The TLV3502AIDR specializes in comparing two input voltages on each of its channels and swiftly providing digital outputs. This functionality is critical in applications where rapid signal processing and decision-making are required.

Application Scenarios

1. Pulse Generation in Digital Communication: Ideal for generating precise timing pulses in telecommunication systems.

2. Edge Detection in Robotics: Suitable for sensing signal transitions in robotic control systems.

3. Automotive Electronics: Used in applications such as anti-lock braking systems, where quick response is crucial.

Key Specifications

- Dual High-Speed Channels: Enables quick comparison of multiple signals.

- Low Power Consumption: Essential for energy-efficient operation, particularly in battery-powered systems.

- Fast Propagation Delay: Minimizes the lag between the input signal and the comparator's output.

- Rail-to-Rail Input: Allows for a wide range of input signal levels.

Circuit Design: Edge Detection in Robotic Control System

Creating a circuit with the TLV3502AIDR for edge detection in a robotic control system:

Step 1: Power Supply Connection

- Pin 8 (VDD): Connect to a standard 5V power source used in robotic systems.

- Pin 4 (GND): Ground to establish a stable reference for the comparator.

Step 2: Signal Input Configuration

- Pin 2 (IN1-) and Pin 3 (IN1+): Attach these to the output of sensors detecting environmental parameters or robotic positioning.

- Pin 5 (IN2-) and Pin 6 (IN2+): Connect to additional sensors for monitoring different aspects or areas of the robot.

Step 3: Output to Control Unit

- Pin 1 (OUT1) and Pin 7 (OUT2): Route the outputs to the robot's central processing unit, which will interpret the signals to make real-time decisions.

Step 4: Reference Voltage Application

- Implement stable reference voltages at IN1- and IN2- (Pins 2 and 5) to set precise comparison thresholds.

Step 5: Noise Reduction Measures

- Include bypass capacitors near the power supply pins to minimize electrical noise and enhance signal clarity.

Design Considerations

- Signal Accuracy: Critical for reliable edge detection in robotic applications.

- Response Speed: Vital in systems where real-time reaction is necessary.

- System Robustness: Important to ensure stable performance under varying operational conditions.

- Integration with Robotics Systems: Necessary for seamless compatibility with other components in robotic control circuits.

In conclusion, the TLV3502AIDR is highly effective in applications like edge detection in robotic control systems, where signal accuracy, response speed, system robustness, and integration with robotics systems are key. Designing circuits with the TLV3502AIDR involves a detailed approach to ensure these factors are effectively managed, resulting in reliable and efficient performance in fast-paced, high-precision environments.
