Texas Instruments TLV3502AIDCNRG4

Part No.:: TLV3502AIDCNRG4

Manufacturer:: Texas Instruments

Package:: SOT-23-8

Datasheet:: TLV3502AIDCNRG4.pdf

Description:: IC COMPARATOR R-R HI-SPD SOT23-8

In Stock:: 2726

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV3502AIDCNRG4 Specifications

Package/Case:
SOT-23-8
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, Push-Pull, Rail-to-Rail, TTL
Voltage-SupplySingle/Dual(±):
2.7V ~ 5.5V, ±1.35V ~ 2.75V
Voltage-InputOffset(Max):
6.5mV @ 5.5V
Current-InputBias(Max):
10pA @ 5.5V
Current-Output(Typ):
-
Current-Quiescent(Max):
5mA
CMRRPSRR(Typ):
70dB CMRR, 100dB PSRR
PropagationDelay(Max):
10ns
Hysteresis:
6mV
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV3502AIDCNRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV3502AIDCNRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV3502AIDCNRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV3502AIDCNRG4 information

Views：

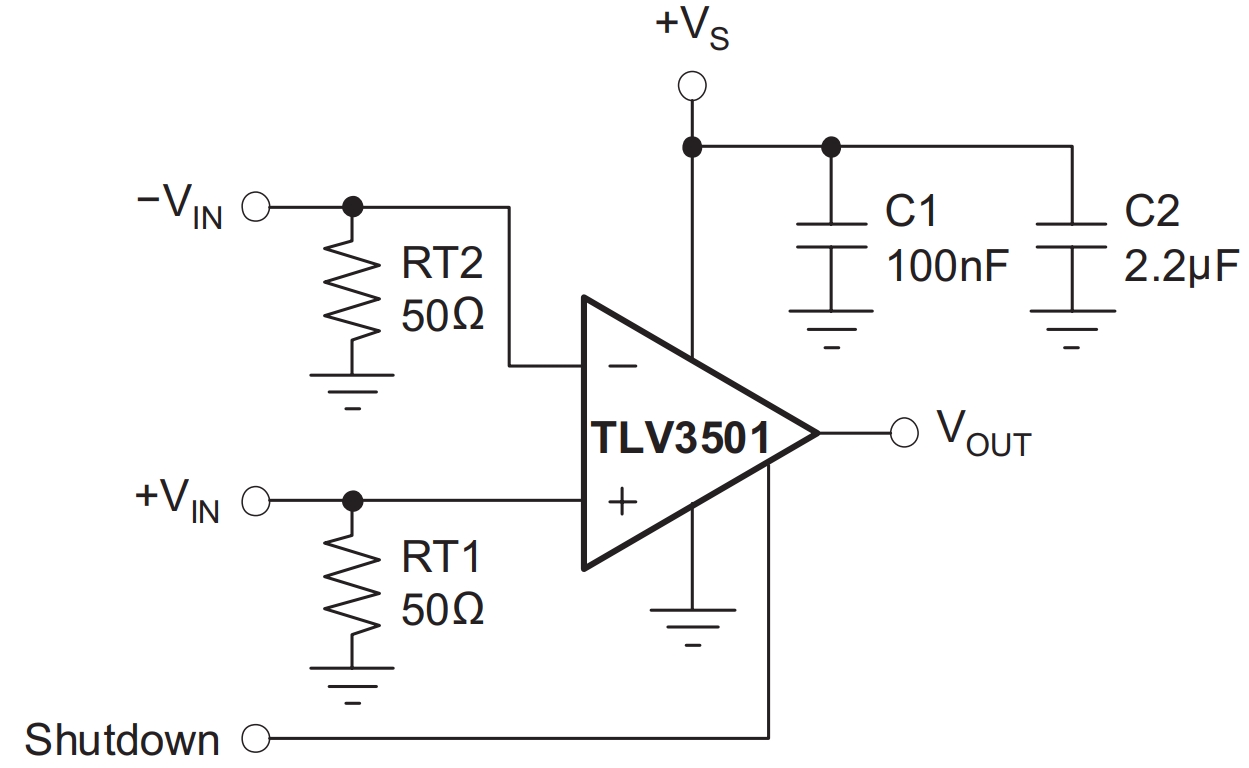

TLV3502AIDCNRG4 Typical application Circuitry

TLV3502AIDCNRG4

The TLV3502AIDCNRG4 is a high-speed, dual-channel comparator known for its rapid response and low power consumption. This chip is ideal for applications that demand fast voltage comparisons, such as precise timing circuits, edge detection in digital signal processing, and various control systems in industrial and automotive applications.

Functionality of the TLV3502AIDCNRG4

The TLV3502AIDCNRG4 excels in comparing two input voltages on each channel and quickly outputting a digital signal based on the comparison. It is adept at processing high-speed signals with minimal delay.

Application Scenarios

1. High-Speed Data Acquisition Systems: Suitable for capturing and processing fast-changing signals in scientific instruments.

2. Pulse Detection in Communication Devices: Ideal for detecting signal edges in digital communication systems.

3. Automotive Sensor Systems: Used for quick response systems like anti-lock braking and collision detection.

Key Specifications

- Dual High-Speed Channels: Allows simultaneous comparison of two independent signals.

- Low Power Operation: Critical for efficiency, especially in battery-powered or energy-sensitive systems.

- Fast Propagation Delay: Minimizes the time between signal input and comparator response.

- Rail-to-Rail Input Capability: Enables a wide input signal range.

Circuit Design: Digital Communication System Pulse Detector

Developing a circuit using the TLV3502AIDCNRG4 for pulse detection in a digital communication system:

Step 1: Power Supply Connection

- Pin 8 (VDD): Connect to a 5V power source typically used in digital systems.

- Pin 4 (GND): Ground to establish a stable reference.

Step 2: Signal Input Configuration

- Pin 2 (IN1-) and Pin 3 (IN1+): Attach these to the output of a digital signal source, such as a data transmission line.

- Pin 5 (IN2-) and Pin 6 (IN2+): Connect to another signal line for monitoring a different pulse or data stream.

Step 3: Output to Processing Unit

- Pin 1 (OUT1) and Pin 7 (OUT2): Lead these to a microcontroller or digital processor that interprets the comparator's output for further action or analysis.

Step 4: Reference Voltage Setup

- Apply stable reference voltages to IN1- and IN2- (Pins 2 and 5) to set precise thresholds for the signal comparison.

Step 5: Noise Reduction

- Implement bypass capacitors near the power pins to filter out power supply noise and stabilize the operation.

Design Considerations

- Signal Precision: Essential for accurate pulse detection in communication systems.

- Response Time: Critical for systems requiring real-time signal processing.

- System Stability: Important to ensure consistent performance under varying conditions.

- Integration with Digital Circuitry: Necessary for compatibility with other components in digital communication systems.

In conclusion, the TLV3502AIDCNRG4 is highly effective in digital communication systems for pulse detection, where signal precision, response time, system stability, and integration with digital circuitry are crucial. Designing with the TLV3502AIDCNRG4 requires a comprehensive approach to adequately address these key factors, ensuring optimal functionality and reliability in high-speed signal processing applications.
