Texas Instruments TLV3492AIDCNR

Part No.:: TLV3492AIDCNR

Manufacturer:: Texas Instruments

Package:: SOT-23-8

Datasheet:: TLV3492AIDCNR.pdf

Description:: IC COMPARATOR 2 GEN PUR SOT23-8

In Stock:: 3407

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV3492AIDCNR Specifications

Package/Case:
SOT-23-8
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
CMOS, Push-Pull, Rail-to-Rail
Voltage-SupplySingle/Dual(±):
1.8V ~ 5.5V
Voltage-InputOffset(Max):
15mV @ 5.5V
Current-InputBias(Max):
10pA @ 5.5V
Current-Output(Typ):
-
Current-Quiescent(Max):
1.2µA
CMRRPSRR(Typ):
74dB CMRR, 69.12dB PSRR
PropagationDelay(Max):
13.5µs
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV3492AIDCNR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV3492AIDCNR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV3492AIDCNR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV3492AIDCNR information

Views：

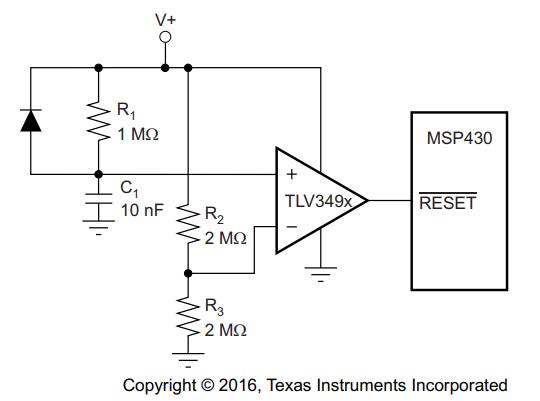

TLV3492AIDCNR Typical application Circuitry

The TLV3492AIDCNR is a dual nano-power voltage comparator from Texas Instruments. This device is designed for systems requiring extremely low current consumption.

Features of TLV3492AIDCNR:

- Ultra-Low Power Consumption: With a quiescent current of 210 nA per channel at 25°C, this device is ideal for battery-powered applications.

- Wide Supply Voltage Range: The TLV3492AIDCNR operates over a supply voltage range of 1.8 V to 5.5 V, providing flexibility for various application requirements.

- Push-Pull Outputs: The comparator features push-pull output stages, which can directly drive a load without needing pull-up resistors.

- Low Input Offset Voltage: It features a low input offset voltage of 1 mV, allowing for precise voltage comparison.

The TLV3492AIDCNR is widely used in battery management systems, power supply control circuits, and alarm and monitoring systems. We will concentrate on its use in a power supply control circuit in this post.

Implementing TLV3492AIDCNR in a Power Supply Control Circuit:

1. Power Supply Pins (VDD, GND): Connect the VDD pin to the supply voltage and the GND pin to the system ground.

- Power Supply Filtering: Decoupling capacitors should be attached close to the power supply pins to reduce noise.

2. Input Pins: The comparator's non-inverting and inverting inputs are represented by IN+ and IN-, respectively.

- Voltage Monitoring: Connect the IN+ pin to the monitored voltage. The IN-pin can be connected to a reference voltage.

3. Output Pin (OUT): This is where the comparator output is located. - Output to Load: Connect the OUT pin to the load that needs to be controlled based on the comparator's result.

4. Second Comparator: The TLV3492AIDCNR features a second comparator that can be utilized in a similar manner for additional monitoring or control tasks.

Design Considerations with the TLV3492AIDCNR:

- Stable Power Supply: The TLV3492AIDCNR requires a stable power supply for reliable operation. A well-regulated supply is crucial.

- Protection from Transients: Given the sensitive nature of the input pins, care must be taken to protect the comparator from input voltage transients.

- Board Layout: Proper board layout techniques should be employed to minimize noise and ensure good signal integrity.

- Temperature Considerations: Operating temperature range should be considered while deploying this device as its performance may vary with temperature.

In conclusion, the TLV3492AIDCNR is a highly versatile component due to its ultra-low power consumption and wide supply voltage range. When carefully implemented in a power supply control circuit, this component offers an efficient and effective solution for voltage comparison and control tasks.
