Texas Instruments TLV3202AQDGKRQ1

Part No.:: TLV3202AQDGKRQ1

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: TLV3202AQDGKRQ1.pdf

Description:: IC COMP PUSH-PULL 8-VSSOP

In Stock:: 3978

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV3202AQDGKRQ1 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
Push-Pull
Voltage-SupplySingle/Dual(±):
2.7V ~ 5.5V
Voltage-InputOffset(Max):
5mV @ 5V
Current-InputBias(Max):
50pA @ 5V
Current-Output(Typ):
-
Current-Quiescent(Max):
50µA
CMRRPSRR(Typ):
70dB CMRR, 85dB PSRR
PropagationDelay(Max):
50ns
Hysteresis:
1.2mV
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV3202AQDGKRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV3202AQDGKRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV3202AQDGKRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV3202AQDGKRQ1 information

Views：

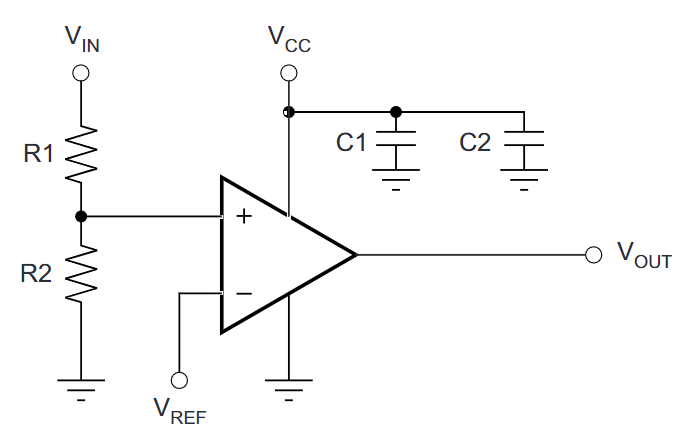

TLV3202AQDGKRQ1 Typical application Circuitry

TLV3202AQDGKRQ1

The TLV3202AQDGKRQ1 is a dual micropower comparator that is commonly found in automotive and industrial applications. It is distinguished by its low voltage operation and small form factor. Here, we'll explore a connection guide for this specific device, focusing on its essential pins and functionalities.

1. Supply Voltage (V+) Pin: For the TLV3202AQDGKRQ1, the power supply pin needs to be connected to a source voltage ranging from 2.7V to 5.5V. It's advisable to use decoupling capacitors close to this pin to filter noise.

2. Ground (GND) Pin: This pin of the TLV3202AQDGKRQ1 must be firmly connected to the system's ground. A robust ground connection guarantees stability and correct operation.

3. Input Pins (IN+ and IN-): The TLV3202AQDGKRQ1 comparator has two input pins per channel for the positive (IN+) and negative (IN-) terminals. Depending on the specific comparison function, these can be connected to various signal sources or reference voltages.

4. Output Pins (OUT): The output pins of the TLV3202AQDGKRQ1 represent the result of the comparison. These pins can be connected to digital inputs of other devices, microcontrollers, or logic gates.

5. Reference Voltage (REF): For some applications, the TLV3202AQDGKRQ1 might require a stable reference voltage connected to one of the input pins (either IN+ or IN-). A reference voltage can be generated by a voltage reference IC or a resistive divider network.

6. Hysteresis Control: If you want to set a custom hysteresis level, you may need to create a feedback loop by connecting a resistor network between the output and input pins. The TLV3202AQDGKRQ1 allows for this kind of configuration to prevent false triggering due to noise.

7. Power-down (PD) Pin: Some versions of TLV3202AQDGKRQ1 may have a power-down control pin that allows for shutting down the device when not in use. This helps in energy conservation.

8. Bypass Capacitors: As a standard practice, it's wise to place bypass capacitors close to the power supply pin of the TLV3202AQDGKRQ1 to maintain signal integrity.

9. Special Functions: Depending on the application, the TLV3202AQDGKRQ1 might be employed in various special functions like window comparators or level shifters. The connection of these configurations will vary based on the desired functionality.

10. Thermal Management: Though not a high-power device, ensuring proper thermal management for TLV3202AQDGKRQ1 is still vital, especially in automotive applications where temperature variations can be significant.

In conclusion, integrating the TLV3202AQDGKRQ1 into your design requires attention to its key pins, including power, ground, inputs, outputs, and any specific function pins. Always adhere to the manufacturer's guidelines and data sheet for the TLV3202AQDGKRQ1 to guarantee reliable performance in your specific application.
