Texas Instruments TLV1702AIDGK

Part No.:: TLV1702AIDGK

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: TLV1702AIDGK.pdf

Description:: IC COMPARATOR DUAL 8VSSOP

In Stock:: 3943

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV1702AIDGK Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
2
OutputType:
Open Collector
Voltage-SupplySingle/Dual(±):
2.2V ~ 36V, ±1.1V ~ 18V
Voltage-InputOffset(Max):
3.5mV
Current-InputBias(Max):
0.015µA
Current-Output(Typ):
20mA
Current-Quiescent(Max):
75µA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
560ns
Hysteresis:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV1702AIDGK this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV1702AIDGK price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV1702AIDGK to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV1702AIDGK information

Views：

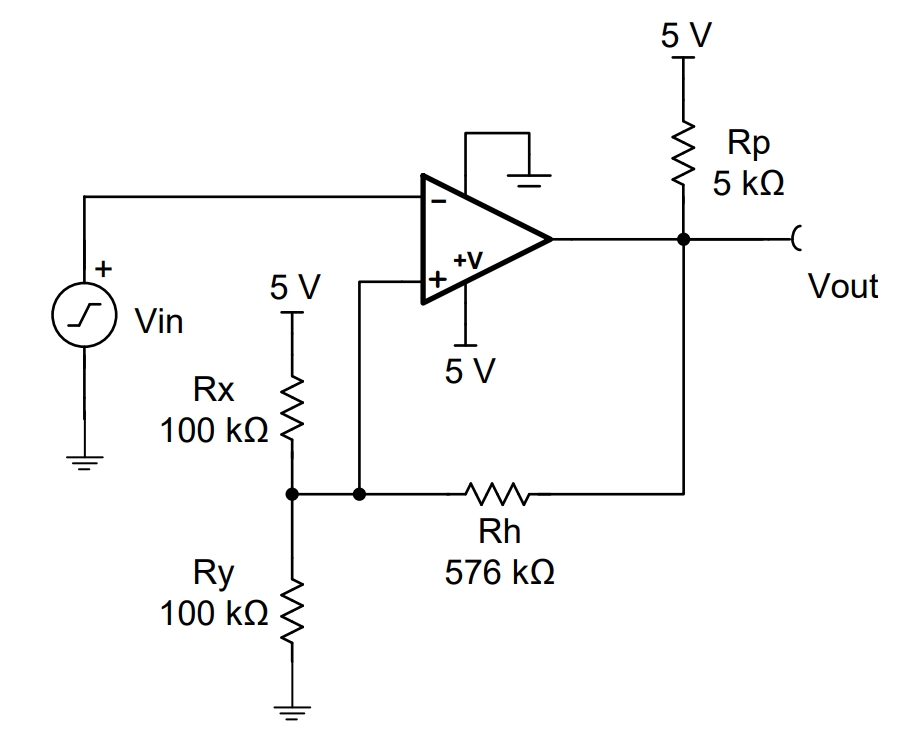

TLV1702AIDGK Typical application Circuitry

TLV1702AIDGK

The TLV1702AIDGK is a dual-channel comparator chip, recognized for its precision and versatility in various electronic applications.

Functionality of TLV1702AIDGK:

- Dual Comparators: Contains two independent comparator circuits.

- Voltage Level Comparison: Compares input voltages against a set reference.

- Broad Supply Voltage Range: Adaptable to a variety of power conditions.

- Low Power Operation: Suitable for energy-conscious applications.

Application Scenarios:

1. Overcurrent Protection Circuits

2. Motor Control Systems

3. Digital Signal Level Detection

4. Voltage Monitoring in Power Supplies

Key Parameter Features:

- Rapid Signal Response: Ideal for timely operations.

- Wide Input Voltage Range: Accommodates different signal levels.

- Low Input Offset Voltage: Enhances comparator accuracy.

- Operational Temperature Flexibility: Functions in various environmental conditions.

Application Circuit Design – Overcurrent Protection:

1. Sensing Current Input:

- Pin 3 (IN+ Channel 1): Connect to the TLV1702AIDGK shunt resistor's high side.

- Pin 2 (IN- Channel 1): Attach to the TLV1702AIDGK shunt resistor's low side.

2. Output Configuration:

- Pin 1 (OUT Channel 1): Connects to a control circuit or alarm system.

3. Power Supply Connections:

- Pin 8 (VDD): Link to the positive power supply.

- Pin 4 (GND): Ground the circuit.

4. Reference Voltage Setting:

- Precision Reference: Use for accurate overcurrent threshold.

5. Noise Management:

- Decoupling Capacitors at VDD: Crucial for reducing power supply noise.

6. Circuit Stability:

- Careful Layout Planning: To minimize interference and ensure stability.

Design Considerations:

- Sensitivity and Accuracy: Key for effective overcurrent detection.

- Energy Efficiency: Important in continuous monitoring applications.

- Circuit Integrity: Ensure robustness in various operating conditions.

Designing an overcurrent protection circuit with the TLV1702AIDGK requires attention to sensitivity, power management, and noise reduction. These factors are essential to ensure that the comparator reliably detects overcurrent conditions while maintaining energy efficiency, a critical aspect in power monitoring systems.
