Name: TLE8102SGXT
Brand: Infineon Technologies
SKU: TLE8102SGXT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies TLE8102SGXT

Part No.:: TLE8102SGXT

Manufacturer:: Infineon Technologies

Package:: PG-DSO-12-11

Datasheet:

Description:: IC PWR SWITCH N-CHAN 1:1 DSO-12

In Stock:: 2501

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLE8102SGXT Specifications

Package/Case:
PG-DSO-12-11
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:1
OutputConfiguration:
Low Side
OutputType:
N-Channel
Interface:
SPI
Voltage-Load:
4.5V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
-
RdsOn(Typ):
180mOhm
InputType:
-
Features:
-
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TLE8102SGXT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLE8102SGXT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLE8102SGXT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLE8102SGXT information

Views：

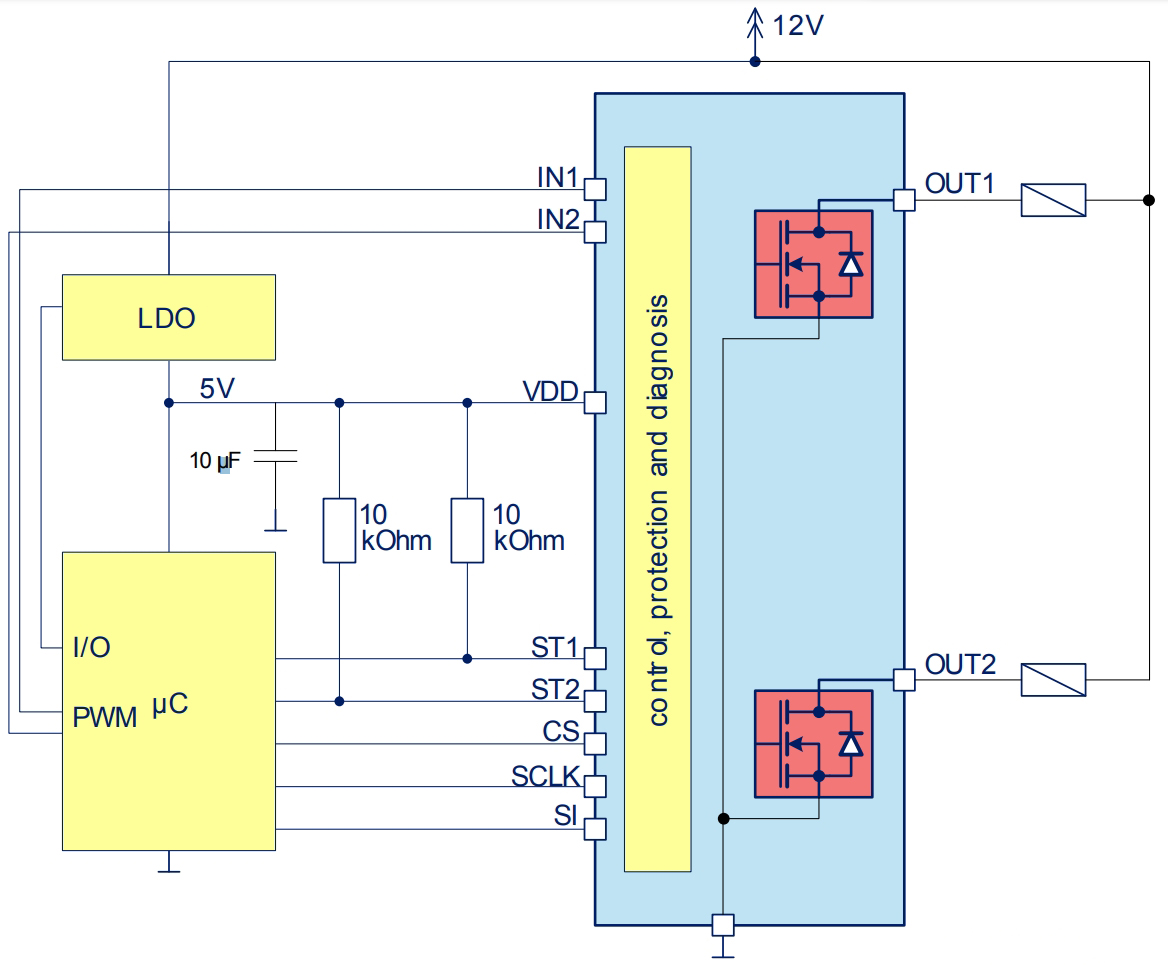

TLE8102SGXT Typical application Circuitry

TLE8102SGXT

The TLE8102SGXT is a part of a specialized family of integrated circuits designed for driving and controlling automotive actuators, such as solenoids and motors. It stands out for its robust design and efficiency in managing power within automotive applications. This integrated circuit is specifically engineered to deliver high-performance control and drive capabilities, making it an essential component in vehicle power management systems. It is frequently used in applications that require precise actuator control, including fuel injection systems, HVAC controls, and various types of motors and relays within the automotive sector.

1. Power Supply Connections: The TLE8102SGXT requires a stable power supply connection, typically connected to a designated VDD pin, along with a ground connection to a VSS pin. These connections are fundamental to the IC's operation, ensuring that the TLE8102SGXT receives the necessary power for its functions.

2. Output Channels: The device features output channels (e.g., OUT1, OUT2) connected to the actuators or motors it is designed to drive. These outputs are crucial for the operational deployment of the TLE8102SGXT, allowing it to directly control and power various automotive actuators.

3. Input Control Interfaces: Control signals are fed into the TLE8102SGXT through specific input pins. These inputs dictate the operation of the output channels, enabling precise control over the actuators or loads. The IC's design allows for direct input signal integration, facilitating responsive and accurate control.

4. Diagnostic and Status Feedback: The TLE8102SGXT is equipped with diagnostic feedback features, which are accessible through certain pins. These features enable the monitoring of the IC's operational status and the diagnosis of potential issues, which is vital for maintaining reliable performance in automotive environments.

5. Thermal and Load Monitoring: Ensuring operational safety, the TLE8102SGXT includes thermal monitoring and load detection capabilities. These functions are critical for preventing overheating and detecting load anomalies, thereby enhancing the reliability and longevity of the IC in demanding automotive applications.

By leveraging these key connection points and understanding the operational characteristics of the TLE8102SGXT, one can effectively integrate this IC into automotive systems, ensuring efficient control and driving of actuators and motors, which is crucial for modern vehicle functionalities.
