Texas Instruments TL432BQDBZRG4

Part No.:: TL432BQDBZRG4

Manufacturer:: Texas Instruments

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: TL432BQDBZRG4.pdf

Description:: IC VREF SHUNT ADJ 0.5% SOT23-3

In Stock:: 2720

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL432BQDBZRG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
ReferenceType:
Shunt
OutputType:
Adjustable
Voltage-Output(Min/Fixed):
2.495V
Voltage-Output(Max):
36 V
Current-Output:
100 mA
Tolerance:
±0.5%
TemperatureCoefficient:
-
Noise-01Hzto10Hz:
-
Noise-10Hzto10kHz:
-
Voltage-Input:
-
Current-Supply:
-
Current-Cathode:
700 µA
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

TL432BQDBZRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL432BQDBZRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL432BQDBZRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL432BQDBZRG4 information

Views：

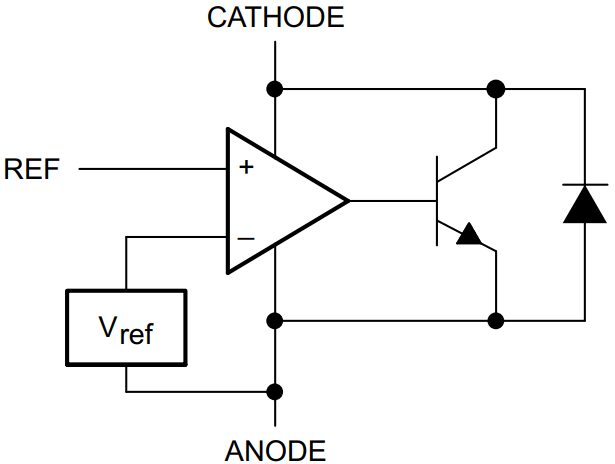

TL432BQDBZRG4 Typical application Circuitry

TL432BQDBZRG4

The TL432BQDBZRG4 is an adjustable precision shunt voltage regulator integrated circuit, part of Texas Instruments' TL432 series. This series is widely recognized for its versatility and reliability in providing a stable reference voltage in various applications, including power supplies, battery management systems, and voltage monitoring circuits. The TL432BQDBZRG4 stands out for its precision in voltage regulation, low output noise, and stability over a wide range of temperatures and operational conditions.

1. Understanding TL432 Series and TL432BQDBZRG4: The TL432BQDBZRG4, within the TL432 series, functions as a three-terminal adjustable shunt regulator. Its design allows it to maintain a stable voltage reference, which is crucial in applications requiring consistent and precise voltage regulation.

2. Pin Configuration and Connection Methodology: The TL432BQDBZRG4 is commonly available in a SOT-23 package and includes three pins: Anode (A), Cathode (K), and Reference (R). The Anode (A) pin is typically connected to the negative side of the power supply or the ground. The Cathode (K) pin connects to the output where the reference voltage is required, often through a resistor to the positive power supply. The Reference (R) pin is used to adjust the output voltage and is usually connected to a voltage divider network or directly to the Cathode (K) for setting the reference voltage.

3. Supply Voltage and Grounding: Connecting the Anode (A) pin to the ground or negative power supply provides a reference point for the regulator.

4. Setting Up Reference Voltage: The Cathode (K) pin's connection to the positive supply through a resistor determines the reference voltage. The Reference (R) pin, linked either directly to the Cathode or via a voltage divider, allows fine-tuning of this voltage.

5. Circuit Design Considerations: When incorporating the TL432BQDBZRG4 into a circuit, it's essential to calculate the resistor values correctly to set the desired reference voltage. The device is commonly used in feedback loops in power supplies for stable voltage regulation.

6. Handling and Operational Guidelines: Careful handling of the TL432BQDBZRG4 is crucial to prevent electrostatic discharge damage. It is also important to operate this IC within its specified voltage and temperature ranges to ensure accuracy and reliability.

In conclusion, the TL432BQDBZRG4 is an integral component in electronic systems where precise voltage regulation is required. Effective use involves understanding its pin layout, correctly configuring the power supply and reference voltage, considering circuit design specifics, and adhering to proper handling and operational standards. These practices ensure the TL432BQDBZRG4 functions effectively as a reliable and adjustable voltage regulator.
