Analog Devices Inc. ADR421ARMZ-REEL7

Part No.:: ADR421ARMZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC VREF SERIES 0.12% 8MSOP

In Stock:: 3997

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADR421ARMZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
XFET®
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.12%
TemperatureCoefficient:
10ppm/°C
Noise-01Hzto10Hz:
1.75µVp-p
Noise-10Hzto10kHz:
-
Voltage-Input:
4.5V ~ 18V
Current-Supply:
600µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADR421ARMZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADR421ARMZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADR421ARMZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADR421ARMZ-REEL7 information

Views：

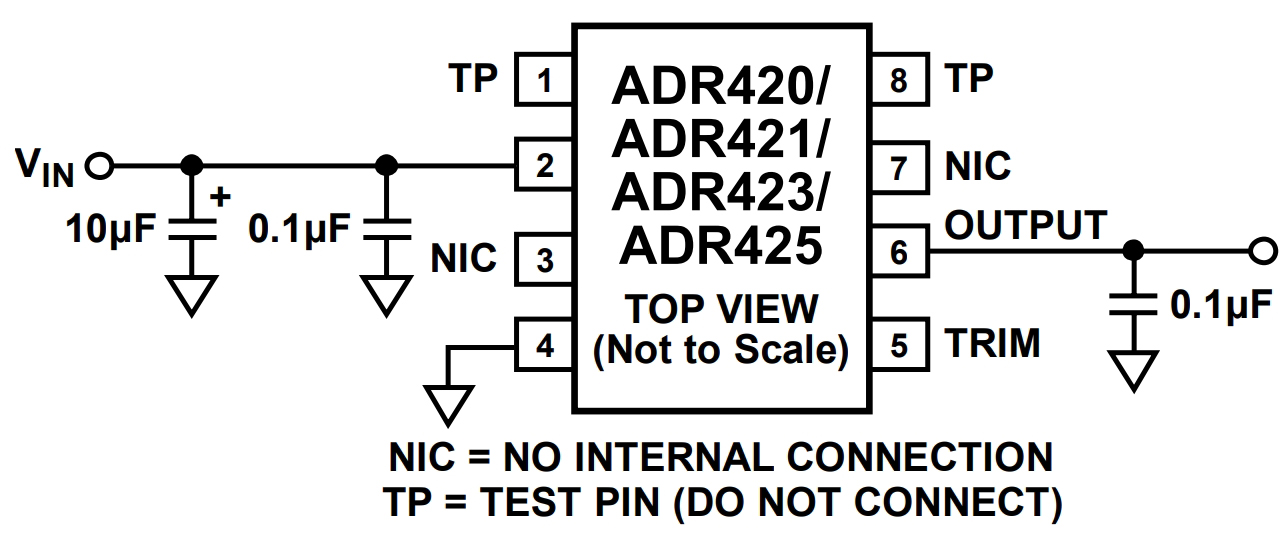

ADR421ARMZ-REEL7 Typical application Circuitry

ADR421ARMZ-REEL7

The ADR421ARMZ-REEL7 is a voltage reference chip, known for its precision and stability. This chip is a key component in various electronic applications where an accurate and stable voltage reference is crucial. Let's delve into its functionalities, application scenarios, parameter features, and an example of how it can be integrated into a specific circuit application:

Functionality of ADR421ARMZ-REEL7

1. Accurate Voltage Reference: The ADR421ARMZ-REEL7 primarily serves as a precise voltage reference source, crucial in applications where voltage accuracy is paramount.

2. Low Noise and Temperature Drift: This chip is designed to have minimal noise and temperature drift, ensuring stable performance under varying conditions.

3. Flexible Operating Range: It is capable of functioning across a wide range of input voltages and temperatures.

Application Scenarios

1. High-Precision Instrumentation: In devices such as laboratory equipment and precision meters where accurate measurements are critical.

2. Data Acquisition Systems: Serving as the reference voltage for high accuracy data conversion in DACs (Digital-to-Analog Converters) and ADCs (Analog-to-Digital Converters).

3. Industrial Control Systems: In control circuits where a consistent and accurate reference voltage is essential for proper functioning.

Parameter Features

1. Output Voltage: Typically provides a stable output of 2.5 V.

2. Stable Performance: Maintains consistent output across different supply voltages and temperatures.

3. Wide Supply Voltage Range: Functions well across a wide range of input voltages.

Application Example: Integration in a Precision Meter

Here's a detailed integration method for the ADR421ARMZ-REEL7 in a precision meter circuit.

Circuit Integration

1. Power Input: Connect the V_IN pin of ADR421ARMZ-REEL7 to a clean and stable power source. A regulated 5 V to 15 V power supply is ideal.

2. Reference Voltage Provision: Link the V_OUT pin of ADR421ARMZ-REEL7 to the reference input of the precision meter's measurement circuit, such as an ADC.

3. Grounding for Stability: The GND pin should be connected to the system's ground plane to ensure operational stability.

Design Considerations

1. Stable Input Power: The power supply to ADR421ARMZ-REEL7 must be consistent and free from significant fluctuations to ensure accurate output voltage.

2. Noise Reduction: Implement filtering capacitors near the input and output pins to minimize electrical noise and stabilize the reference voltage.

3. Temperature Management: Though the ADR421ARMZ-REEL7 compensates for temperature variations, a stable thermal environment can enhance its performance.

4. PCB Layout Considerations: Design the PCB to minimize trace lengths and shield the chip from electromagnetic interference, especially important in precision measurement applications.

In conclusion, the ADR421ARMZ-REEL7 plays a vital role in electronic circuits requiring a precise and stable voltage reference. Its integration in a precision meter circuit highlights its importance in ensuring accurate and reliable measurements in sensitive electronic equipment.
