lmages are for reference only See Product Specifications
Micro Commercial Co TL431KA-TP
- Part No.:
- TL431KA-TP
- Manufacturer:
- Micro Commercial Co
- Package:
- TO-236-3, SC-59, SOT-23-3
- Datasheet:
-
TL431KA-TP.pdf
- Description:
- IC REG PROGRAMMABLE PREC SOT-23
- In Stock:
- 3341
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431KA-TP Specifications
- Packaging:Tape & Reel (TR)
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Programmable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±0.5%
- TemperatureCoefficient:50ppm/°C
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:1 mA
- OperatingTemperature:-40°C ~ 125°C
- MountingType:Surface Mount
TL431KA-TP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431KA-TP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431KA-TP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431KA-TP information
Views：

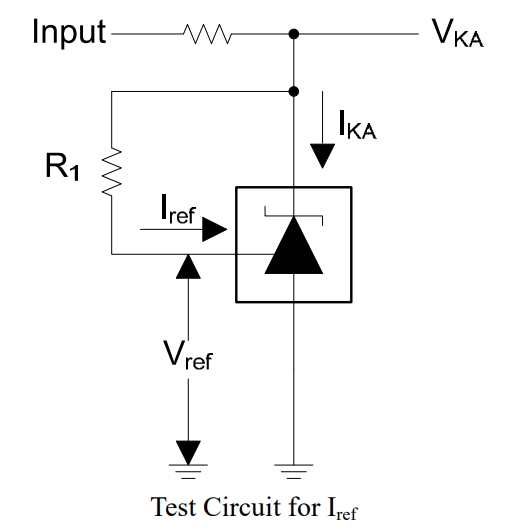

TL431KA-TP Typical application Circuitry
The TL431KA-TP is an integrated circuit known for its functionality as an adjustable precision shunt regulator. It's a popular choice in electronic designs for its adaptability and accuracy in voltage regulation.
Function of TL431KA-TP
This chip serves as a programmable voltage reference, akin to an adjustable Zener diode. It allows setting specific output voltages within a broad range, suitable for various electronic circuits.
Application Scenarios
The TL431KA-TP is typically used in:
1. Power Supply Regulation: To maintain stable and adjustable output voltages.
2. Reference Voltage Source in Measurement Instruments: Providing a stable benchmark voltage for precision devices.
3. Overvoltage Protection Systems: To protect electronic systems from voltage spikes.
Characteristic Parameters
Key features of the TL431KA-TP include:
- Adjustable Voltage Output Range: Typically from 2.5 to 36 volts.
- Stable Performance in Diverse Conditions: Reliable operation under different environmental conditions.
- Precision Voltage Regulation: Suitable for applications requiring strict voltage control.
Circuit Example: Power Supply Regulation
Implementing the TL431KA-TP in a power supply regulation circuit:
1. Essential Components
- TL431KA-TP shunt regulator
- Resistors for voltage setting (R1, R2)
- Power supply circuitry
2. Pin Configuration
- Pin 1: Reference (Ref)
- Pin 2: Anode
- Pin 3: Cathode
3. Circuit Assembly Instructions
- R1 is connected between the Reference (Pin 1) and the Anode (Pin 2).
- R2 links from the Reference (Pin 1) to the Cathode (Pin 3), functioning as the output.
4. Voltage Setting Method
- Apply the formula Vout = Vref * (1 + R1/R2) to determine appropriate values for R1 and R2 for the desired output voltage.
5. Design Considerations
- Voltage Regulation Accuracy: Crucial for maintaining stable voltage output in power supplies.
- Thermal Management: Important to monitor the IC's temperature in high-load conditions.
- Component Selection: Using high-quality resistors with a low tolerance for precise voltage control.
6. Adjusting for Specific Requirements
- Adjust R1 and R2 to achieve the necessary output voltage for the power supply.
Circuit Design Considerations
Designing circuits with the TL431KA-TP requires considering factors like maximum cathode current, the effect of temperature on performance, load stability, and the precision of resistors.
In conclusion, the TL431KA-TP, as an adjustable precision shunt regulator, is effective in applications like power supply regulation, as a reference voltage source in measurement instruments, and overvoltage protection systems. Its adjustable voltage range, stable performance, and precision make it a valuable choice. Essential considerations in circuit design include regulation accuracy, thermal management, and the use of high-quality components. The TL431KA-TP is a vital component for achieving stable and precise voltage control in various electronic systems.
