Texas Instruments TL431IPK
- Part No.:
- TL431IPK
- Manufacturer:
- Texas Instruments
- Package:
- TO-243AA
- Datasheet:
-
TL431IPK.pdf
- Description:
- IC VREF SHUNT ADJ 2.2% SOT89-3
- In Stock:
- 3081
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431IPK Specifications
- Packaging:Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Adjustable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±2.2%
- TemperatureCoefficient:-
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:1 mA
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Surface Mount
TL431IPK this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431IPK price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431IPK to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431IPK information
Views：

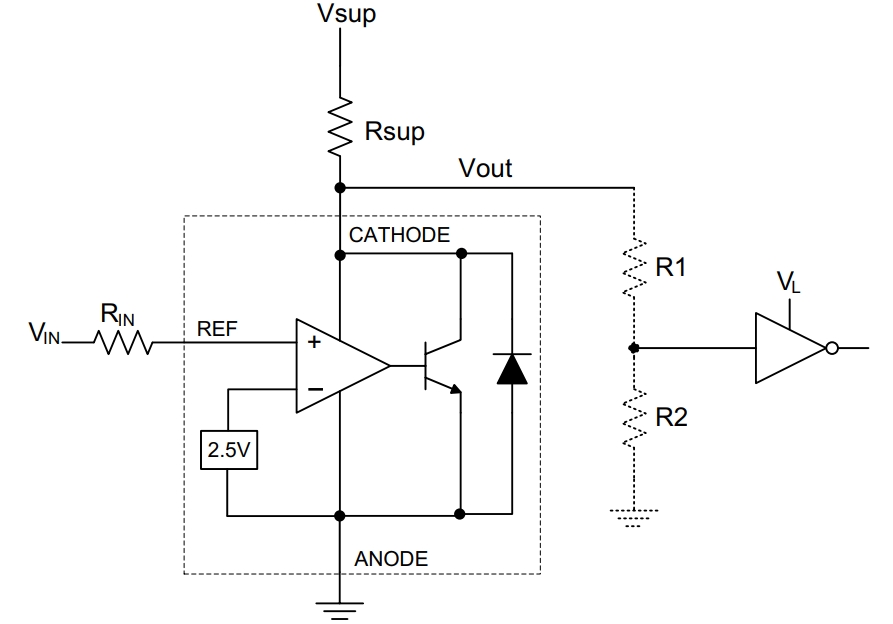

TL431IPK Typical application Circuitry
The TL431IPK is an integrated circuit recognized for its role as an adjustable precision shunt regulator. It is a versatile component used extensively for voltage regulation in various electronic applications.
Function of TL431IPK
This chip operates as a programmable voltage reference, functioning similarly to an adjustable Zener diode. It allows for the setting of specific output voltage within a broad range, making it adaptable for diverse electronic circuits.
Application Scenarios
The TL431IPK is typically used in:
1. Voltage Regulation in Power Supplies: To maintain stable and adjustable output voltages.
2. Reference Voltage in Analog-to-Digital Converters: Offering a stable voltage reference for accurate data conversion.
3. Overvoltage Protection Circuits: Preventing excessive voltage in electronic systems.
Characteristic Parameters
Key features of the TL431IPK include:
- Adjustable Voltage Output Range: Typically adjustable from 2.5 to 36 volts.
- Stable Performance in Different Environments: Reliable operation under various temperature conditions.
- Precision Voltage Regulation: Ideal for applications requiring stringent voltage control.
Circuit Example: Power Supply Voltage Regulation
Implementing the TL431IPK in a power supply voltage regulation circuit:
1. Required Components
- TL431IPK shunt regulator
- Resistors for voltage setting (R1, R2)
- Power supply components
2. Pin Configuration
- Pin 1: Anode
- Pin 2: Cathode
- Pin 3: Reference (Ref)
3. Circuit Assembly Instructions
- R1 is connected between the Reference (Pin 3) and the Anode (Pin 1).
- R2 links from the Reference (Pin 3) to the Cathode (Pin 2), acting as the output.
4. Voltage Setting Method
- Apply the formula Vout = Vref * (1 + R1/R2) to calculate R1 and R2 for the desired output voltage.
5. Design Considerations
- Voltage Regulation Accuracy: Critical for maintaining stable output in power supplies.
- Thermal Management: Important to monitor the IC's temperature, particularly in high-power situations.
- Component Quality: Selecting high-grade, low-tolerance resistors for accurate voltage regulation.
6. Adjusting for Specific Needs
- Fine-tune R1 and R2 to achieve the required output voltage for the power supply.
Circuit Design Considerations
Designing with the TL431IPK involves considering factors such as maximum cathode current, the impact of ambient temperature on performance, load stability, and the accuracy of the resistors.
In summary, the TL431IPK, as an adjustable precision shunt regulator, is particularly effective in applications like voltage regulation in power supplies, providing reference voltage for analog-to-digital converters, and in overvoltage protection circuits. Its adjustable voltage range, stable performance, and precision regulation are key attributes. Key considerations in circuit design include ensuring regulation accuracy, effective thermal management, and using high-quality components. The TL431IPK is a vital component for achieving stable and precise voltage control in various electronic systems.
