Texas Instruments TL431ILPE3
- Part No.:
- TL431ILPE3
- Manufacturer:
- Texas Instruments
- Package:
- TO-226-3, TO-92-3 (TO-226AA)
- Datasheet:
-
TL431ILPE3.pdf
- Description:
- IC VREF SHUNT ADJ 2.2% TO92-3
- In Stock:
- 3447
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431ILPE3 Specifications
- Packaging:Bulk
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Adjustable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±2.2%
- TemperatureCoefficient:-
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:1 mA
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Through Hole
TL431ILPE3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431ILPE3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431ILPE3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431ILPE3 information
Views：

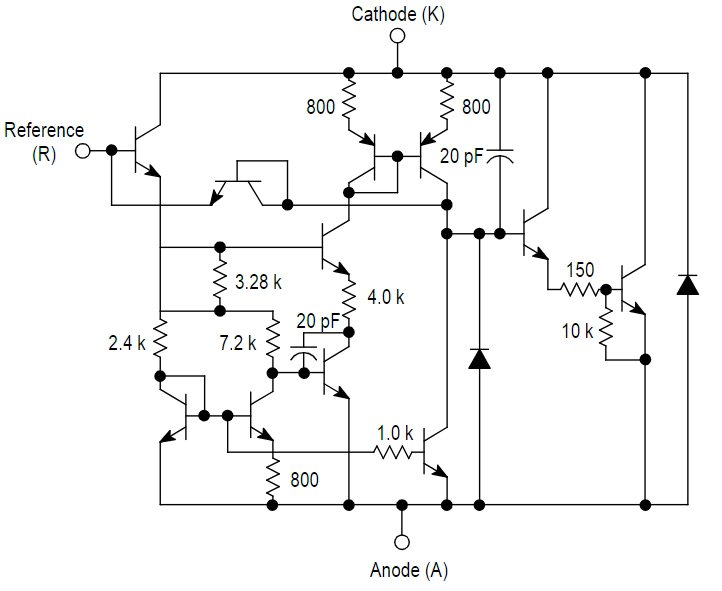

TL431ILPE3 Typical application Circuitry
Precision shunt regulator IC TL431ILPE3 is well-known for its dependability and adaptability in a wide range of electrical applications.
Application Scenarios of TL431ILPE3
1. Adjustable Voltage Power Supplies: Commonly used to regulate the output voltage.
2. Voltage Reference in Analog Circuits: Provides a stable reference voltage.
3. Battery Chargers: Ensures consistent charging voltage.
4. Voltage Monitoring: Ideal in circuits requiring precise voltage thresholds.
Parameter Characteristics of TL431ILPE3
- Adjustable Voltage Range: Typically from 2.5V to 36V.
- Low Dynamic Output Impedance: Ensures consistent performance under varying loads.
- Temperature Stability: Maintains accuracy across a wide range of temperatures.
- High Precision: Key for applications requiring exact voltage control.
Application Example of TL431ILPE3: Adjustable Voltage Power Supply
1.Setting Output Voltage
- Resistor Network Configuration: Attach a resistor network to the REF pin (pin 2) to set the desired output voltage.
- Voltage Calculation: The values of the resistors in the network that are attached to the REF pin determine the output voltage.
2.Connecting to Power Supply
- Anode and Cathode Connections: Link the Anode (pin 1) to the input voltage and the Cathode (pin 3) to the output load.
- Feedback Loop: Properly connect the REF pin to the feedback network of the power supply.
3.Load Regulation and Stability
- Load Testing: Examine output voltage stability across different load conditions.
- Circuit Stability Enhancement: Use capacitors as necessary for stabilizing output.
4.Thermal Management
- Heat Dissipation Requirements: Incorporate appropriate heat sinking if the IC dissipates considerable power.
- Operating Temperature Range: For best results, operate within the IC's designated temperature range.
Design Considerations of TL431ILPE3
1. Component Accuracy: Select high-precision resistors for setting the output voltage.
2. Thermal Considerations: Manage heat effectively to prevent overheating.
3. Circuit Testing: Validate the circuit's performance under various load and temperature scenarios.
4. Noise Reduction: Implement strategies to minimize electrical noise, particularly in the feedback loop.
In summary, the TL431ILPE3 serves as a critical component in applications requiring accurate voltage regulation. Designing circuits with this IC necessitates a focus on precise component selection, effective thermal management, thorough testing under different conditions, and strategies to reduce electrical noise for ensuring the circuit's effectiveness and reliability.
