What is the Additional Feature ?

Name: TL431IDBZR,215
Brand: Nexperia USA Inc.
SKU: TL431IDBZR,215
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. TL431IDBZR,215

Part No.:: TL431IDBZR,215

Manufacturer:: Nexperia USA Inc.

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: TL431IDBZR,215.pdf

Description:: IC VREF SHUNT ADJ 2% TO236AB

In Stock:: 3096

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL431IDBZR,215 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
ReferenceType:
Shunt
OutputType:
Adjustable
Voltage-Output(Min/Fixed):
2.495V
Voltage-Output(Max):
36 V
Current-Output:
100 mA
Tolerance:
±2%
TemperatureCoefficient:
-
Noise-01Hzto10Hz:
-
Noise-10Hzto10kHz:
-
Voltage-Input:
-
Current-Supply:
-
Current-Cathode:
1 mA
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TL431IDBZR,215 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431IDBZR,215 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431IDBZR,215 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL431IDBZR,215 information

Views：

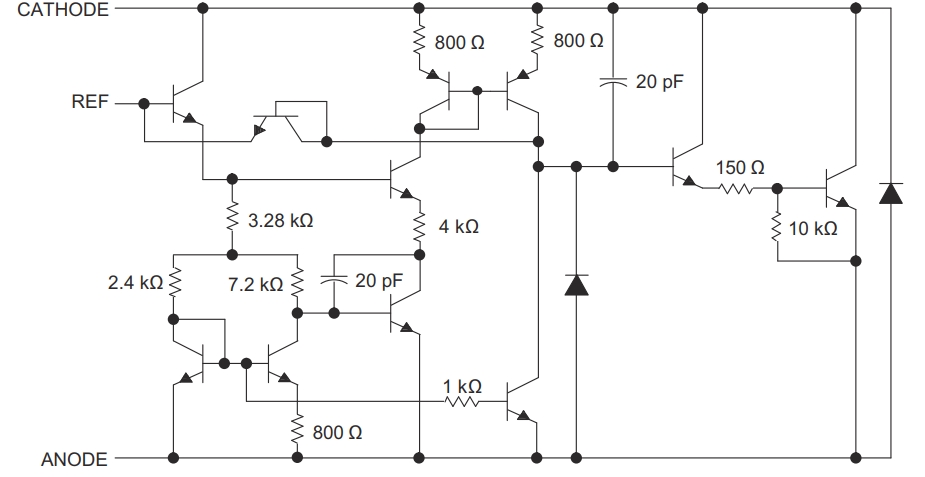

TL431IDBZR,215 Typical application Circuitry

TL431IDBZR,215

The TL431IDBZR,215 is an integrated circuit functioning as an adjustable precision shunt regulator. It's widely recognized for its versatility and precision in regulating voltages for various electronic applications.

Function of TL431IDBZR,215

This chip operates as a programmable voltage reference, similar to an adjustable Zener diode. It enables users to set a specific output voltage within a defined range, making it highly adaptable for a range of electronic circuits.

Application Scenarios

The TL431IDBZR,215 is typically used in:

1. Power Supply Regulation: To stabilize and control output voltages.

2. Voltage Reference in Analog Circuits: Providing a stable voltage reference for accurate circuit operation.

3. Overvoltage Protection Systems: Ensuring voltage levels in circuits stay within safe limits.

Characteristic Parameters

Key features of the TL431IDBZR,215 include:

- Adjustable Voltage Output Range: Typically from 2.5 to 36 volts.

- Stable Performance Across Temperature Variations: Reliable operation in various environmental conditions.

- Precision Voltage Regulation: Ideal for applications requiring strict voltage control.

Circuit Example: Power Supply Regulation

Implementing the TL431IDBZR,215 in a power supply regulation circuit:

1. Necessary Components

- TL431IDBZR,215 shunt regulator

- Resistors for voltage setting (R1, R2)

- Power supply components

2. Pin Configuration

- Pin 1: Reference (Ref)

- Pin 2: Anode

- Pin 3: Cathode

3. Circuit Assembly Process

- R1 is connected from the Reference (Pin 1) to the Anode (Pin 2).

- R2 links from the Reference (Pin 1) to the Cathode (Pin 3), also serving as the output.

4. Voltage Setting Procedure

- Apply the formula Vout = Vref * (1 + R1/R2) to calculate appropriate values for R1 and R2 for the desired output voltage.

5. Design Considerations

- Regulation Accuracy: Essential for maintaining stable voltage in the power supply.

- Thermal Management: Monitoring the IC's temperature, especially in high-load conditions.

- Component Selection: Precision resistors with low tolerance are crucial for accurate voltage regulation.

6. Fine-Tuning for Specific Requirements

- Adjust R1 and R2 to obtain the necessary output voltage for the power supply.

Circuit Design Considerations

Designing with the TL431IDBZR,215 requires attention to factors such as maximum cathode current, the impact of temperature on performance, load stability, and the precision of the resistors used.

In summary, the TL431IDBZR,215, serving as an adjustable precision shunt regulator, is particularly effective in applications like power supply regulation, voltage reference in analog circuits, and overvoltage protection systems. Its adjustable voltage range, stable performance, and precision regulation are key attributes. Essential considerations in circuit design include ensuring regulation accuracy, effective thermal management, and using high-quality components. The TL431IDBZR,215 is a vital component in achieving stable and precise voltage control in various electronic systems.
