Texas Instruments TL431BQDBZR
- Part No.:
- TL431BQDBZR
- Manufacturer:
- Texas Instruments
- Package:
- TO-236-3, SC-59, SOT-23-3
- Datasheet:
-
TL431BQDBZR.pdf
- Description:
- IC VREF SHUNT ADJ 0.5% SOT23-3
- In Stock:
- 2662
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431BQDBZR Specifications
- Packaging:Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Adjustable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±0.5%
- TemperatureCoefficient:-
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:700 µA
- OperatingTemperature:-40°C ~ 125°C (TA)
- MountingType:Surface Mount
TL431BQDBZR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431BQDBZR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431BQDBZR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431BQDBZR information
Views：

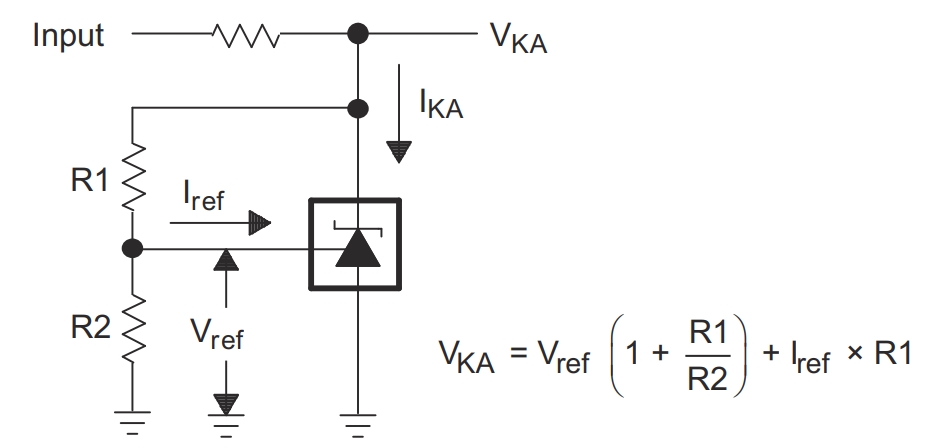

TL431BQDBZR Typical application Circuitry
The TL431BQDBZR is an integrated circuit that functions as an adjustable precision shunt regulator. This component is notably used for its ability to provide stable and precise voltage regulation in a variety of electronic applications.
Function of TL431BQDBZR
This chip operates as a programmable voltage reference, similar to an adjustable Zener diode. It allows users to set a specific output voltage within a defined range, making it highly adaptable for different electronic circuits.
Application Scenarios
The TL431BQDBZR is commonly utilized in:
1. Power Supply Regulation: To maintain a stable and adjustable output voltage.
2. Reference Voltage in Analog-to-Digital Converters (ADCs): Providing a stable reference voltage for accurate conversion.
3. Protection Circuits: In applications such as overvoltage or undervoltage protection.
Characteristic Parameters
Key features of the TL431BQDBZR include:
- Adjustable Voltage Output Range: Capable of providing outputs from 2.5 to 36 volts.
- Stable Performance Across Temperature Ranges: Ensures reliable operation under various environmental conditions.
- High Precision: Suitable for applications requiring strict voltage control.
Circuit Example: Power Supply Regulation
Here's how to incorporate the TL431BQDBZR in a power supply regulation circuit:
1. Essential Components
- TL431BQDBZR shunt regulator
- Resistors for voltage setting (R1, R2)
- Power supply components
2. Pin Configuration
- Pin 1: Reference (Ref)
- Pin 2: Anode
- Pin 3: Cathode
3. Circuit Assembly
- R1 should be connected between Ref (Pin 1) and Anode (Pin 2).
- R2 links from Ref (Pin 1) to Cathode (Pin 3), serving as the output.
4. Voltage Setting Process
- The formula Vout = Vref * (1 + R1/R2) is used to calculate the necessary values for R1 and R2 to achieve the desired output voltage.
5. Design Considerations
- Voltage Regulation Accuracy: Crucial for stable power supply operation.
- Thermal Management: Monitor the IC's temperature, especially in high-load conditions.
- Component Selection: High-quality, low-tolerance resistors are recommended for precise voltage control.
6. Adjusting for Application Needs
- Fine-tune R1 and R2 to customize the output voltage according to the power supply requirements.
Circuit Design Considerations
In designing circuits with the TL431BQDBZR, it's important to consider factors such as maximum cathode current, the impact of ambient temperature on performance, stability under different load conditions, and the precision of the resistors used.
In conclusion, the TL431BQDBZR, functioning as an adjustable precision shunt regulator, is particularly effective in applications such as power supply regulation, providing reference voltage for ADCs, and in protection circuits. Its features like adjustable output range, temperature stability, and precision regulation make it a valuable choice. Key considerations in circuit design include regulation accuracy, thermal management, and the use of high-quality components. The TL431BQDBZR is a crucial component for achieving stable and accurate voltage control in various electronic systems.
