lmages are for reference only See Product Specifications

Nexperia USA Inc. TL431AIDBZR,215

Part No.:: TL431AIDBZR,215

Manufacturer:: Nexperia USA Inc.

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: TL431AIDBZR,215.pdf

Description:: IC VREF SHUNT ADJ 1% TO236AB

In Stock:: 3753

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL431AIDBZR,215 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
ReferenceType:
Shunt
OutputType:
Adjustable
Voltage-Output(Min/Fixed):
2.495V
Voltage-Output(Max):
36 V
Current-Output:
100 mA
Tolerance:
±1%
TemperatureCoefficient:
-
Noise-01Hzto10Hz:
-
Noise-10Hzto10kHz:
-
Voltage-Input:
-
Current-Supply:
-
Current-Cathode:
600 µA
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TL431AIDBZR,215 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431AIDBZR,215 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431AIDBZR,215 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL431AIDBZR,215 information

Views：

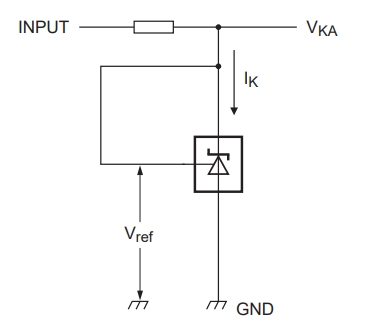

TL431AIDBZR,215 Typical application Circuitry

TL431AIDBZR,215

The TL431AIDBZR,215 is an integrated circuit known for its adjustable precision shunt regulator functionality. It is highly regarded in the electronics industry for its versatility and reliability in various applications.

Function of TL431AIDBZR,215

This chip acts as a programmable voltage reference, similar to an adjustable Zener diode. It enables setting a precise output voltage within a specified range, making it highly adaptable for different electronic circuits.

Application Scenarios

The TL431AIDBZR,215 is utilized in:

1. Voltage Regulation in Consumer Electronics: To ensure stable voltage supply in devices like televisions and radios.

2. Reference Voltage Source in Test Equipment: Providing a stable reference in measurement devices.

3. Power Management Circuits: In systems requiring tight voltage control for optimal operation.

Characteristic Features

The TL431AIDBZR,215 is characterized by:

- Adjustable Output Voltage: Ranging from 2.5 to 36 volts.

- Stable Performance across Temperature Ranges: Reliable operation under various environmental conditions.

- Precision Voltage Control: Suitable for applications where exact voltage regulation is necessary.

Circuit Implementation: Voltage Regulation in Consumer Electronics

A detailed circuit setup using the TL431AIDBZR,215 for voltage regulation:

1. Essential Components for the Circuit

- TL431AIDBZR,215 shunt regulator

- Resistors (R1, R2) for setting voltage

2. Pin Configuration of the IC

- Pin 1: Reference (Ref)

- Pin 2: Anode

- Pin 3: Cathode

3. Circuit Assembly Steps

- Link R1 from Ref (Pin 1) to Anode (Pin 2).

- Connect R2 between Ref (Pin 1) and Cathode (Pin 3), which also serves as the output.

4. Determining the Voltage Settings

- Calculate the values for R1 and R2 using the equation Vout = Vref * (1 + R1/R2) to set the desired output voltage.

5. Key Points in Designing

- Accuracy in Voltage Regulation: Essential for ensuring device functionality and safety.

- Thermal Management: Monitor the IC's temperature, particularly in high-power applications.

- Resistor Selection: High-precision resistors are crucial for maintaining accurate voltage settings.

6. Fine-Tuning for Application Specifics

- Adjust R1 and R2 values to tailor the output voltage to the specific requirements of the consumer electronics.

Designing Considerations

When designing circuits with the TL431AIDBZR,215, it's important to account for the maximum cathode current, the impact of temperature on the IC's performance, stability under variable loads, and the accuracy of the associated resistors.

In conclusion, the TL431AIDBZR,215 is a versatile shunt regulator ideal for voltage regulation in consumer electronics, as a reference in test equipment, and in power management circuits. Its capabilities include an adjustable voltage range, temperature stability, and precision voltage control. Key considerations in designing include voltage regulation accuracy, thermal management, and precision in component choice. The TL431AIDBZR,215 stands out for its ability to provide stable and accurate voltage regulation in a variety of electronic applications.
