Texas Instruments TL431AIDBVRG4

Part No.:: TL431AIDBVRG4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: TL431AIDBVRG4.pdf

Description:: IC VREF SHUNT ADJ 1% SOT23-5

In Stock:: 3919

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL431AIDBVRG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
ReferenceType:
Shunt
OutputType:
Adjustable
Voltage-Output(Min/Fixed):
2.495V
Voltage-Output(Max):
36 V
Current-Output:
100 mA
Tolerance:
±1%
TemperatureCoefficient:
-
Noise-01Hzto10Hz:
-
Noise-10Hzto10kHz:
-
Voltage-Input:
-
Current-Supply:
-
Current-Cathode:
700 µA
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TL431AIDBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431AIDBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431AIDBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL431AIDBVRG4 information

Views：

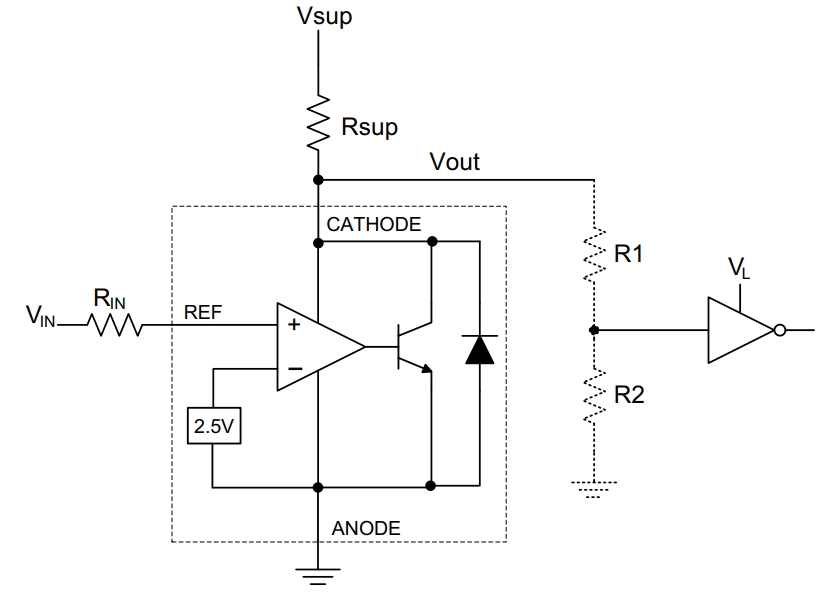

TL431AIDBVRG4 Typical application Circuitry

TL431AIDBVRG4

The TL431AIDBVRG4 is a programmable precision shunt regulator, known for its versatility and precision in regulating voltages in various electronic applications.

Functional Capabilities of TL431AIDBVRG4

This chip operates as an adjustable voltage reference, similar to a programmable Zener diode, enabling the customization of the output voltage as per requirement.

Application Environments

The TL431AIDBVRG4 is widely used in:

1. Adjustable Voltage Regulators: To create a stable voltage supply.

2. Battery Chargers: For managing the charging voltage and current.

3. Voltage Monitoring Circuits: Ensuring that voltage levels in a system stay within safe limits.

Key Parameters

Distinctive features of the TL431AIDBVRG4 include:

- Variable Output Voltage: Adjustable range from 2.5 to 36 volts.

- Stable Performance in Varied Conditions: Reliable across different temperature ranges.

- Low Noise Operation: Ideal for applications where minimal electrical interference is crucial.

Circuit Design: Battery Charger

Implementing the TL431AIDBVRG4 in a battery charger circuit involves the following steps:

1. Necessary Components

- TL431AIDBVRG4 shunt regulator

- Resistors (R1, R2) for setting the desired voltage

2. Pin Configuration

- Pin 1: Anode

- Pin 2: Cathode

- Pin 3: Reference (Ref)

3. Detailed Circuit Setup

- Connect R1 from the Reference (Pin 3) to the Anode (Pin 1).

- Link R2 between the Reference (Pin 3) and the Cathode (Pin 2), also acting as the output.

4. Voltage Determination

- Calculate R1 and R2 values using the formula Vout = Vref * (1 + R1/R2) for the required charging voltage.

5. Design Considerations

- Voltage Accuracy: Crucial for ensuring proper battery charging.

- Thermal Management: Monitor the regulator's temperature in high-power scenarios.

- Component Selection: Use precision resistors for accurate voltage regulation.

6. Adjustment for Specific Requirements

- Fine-tune R1 and R2 to set the exact charging voltage needed.

Designing with TL431AIDBVRG4

Considerations for circuit design include the regulator's maximum cathode current, the impact of environmental temperature, stability under different loads, and the precision of resistors.

To summarize, the TL431AIDBVRG4 serves as an effective adjustable precision shunt regulator, suitable for applications in adjustable voltage regulators, battery chargers, and voltage monitoring circuits. Its characteristics like adjustable voltage range, temperature stability, and low noise make it a preferred choice. Designing with this component requires a focus on voltage accuracy, thermal management, and high-quality component selection. The TL431AIDBVRG4 is a valuable component for maintaining voltage integrity in sophisticated electronic systems.
