lmages are for reference only See Product Specifications
Texas Instruments TL431AIDBVR
- Part No.:
- TL431AIDBVR
- Manufacturer:
- Texas Instruments
- Package:
- SC-74A, SOT-753
- Datasheet:
-
TL431AIDBVR.pdf
- Description:
- IC VREF SHUNT ADJ 1% SOT23-5
- In Stock:
- 3644
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431AIDBVR Specifications
- Packaging:Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Adjustable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±1%
- TemperatureCoefficient:-
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:700 µA
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Surface Mount
TL431AIDBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431AIDBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431AIDBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431AIDBVR information
Views：

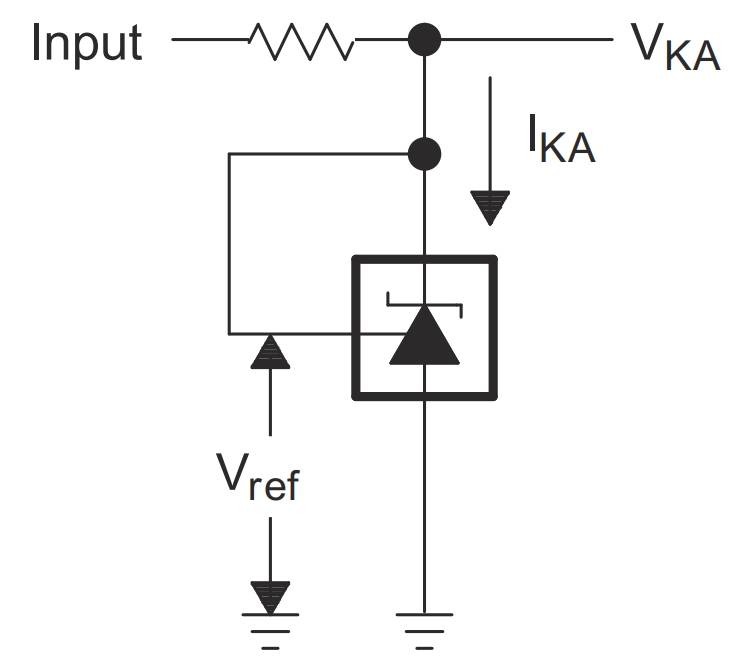

TL431AIDBVR Typical application Circuitry
The TL431AIDBVR is a programmable precision shunt regulator chip, esteemed for its adaptability and precision in a variety of electronic applications.
Operational Role of TL431AIDBVR
This chip functions as an adjustable voltage reference, akin to a programmable Zener diode, allowing for custom output voltage settings.
Application Scenarios
TL431AIDBVR is extensively employed in:
1. Power Supply Regulation: For stable and adjustable voltage output.
2. Voltage Monitoring: In systems requiring precise voltage thresholds.
3. Reference Source in Measurement Equipment: Offering a stable voltage reference for accurate measurements.
Characteristic Parameters
The TL431AIDBVR is distinguished by:
- Adaptable Output Voltage Range: Can be set from 2.5 to 36 volts.
- Stable Performance Across Temperature Shifts: Reliable operation in varying thermal conditions.
- Low Noise Profile: Suitable for noise-sensitive electronic environments.
Application Circuit: Power Supply Regulation
An in-depth application of the TL431AIDBVR in a power supply regulation circuit is as follows.
1. Essential Circuit Components
- TL431AIDBVR shunt regulator
- Voltage-setting resistors (R1, R2)
- Basic power supply elements
2. Pin Configuration
- Pin 1: Anode
- Pin 2: Cathode
- Pin 3: Reference (Ref)
3. Circuit Assembly Instructions
- Connect R1 from Ref (Pin 3) to Anode (Pin 1).
- Link R2 from Ref (Pin 3) to Cathode (Pin 2), which is also the output point.
4. Setting the Output Voltage
- Use the formula Vout = Vref * (1 + R1/R2) to determine R1 and R2 for the desired output voltage.
5. Design Considerations
- Voltage Stability: Ensure consistent output under various load conditions.
- Thermal Management: Monitor the TL431AIDBVR's temperature in high-current settings.
- Component Selection Accuracy: Choose resistors with low tolerance for precise voltage regulation.
6. Output Voltage Calibration
- Adjust R1 and R2 for fine-tuning the output voltage as needed.
Circuit Design Implications
When designing with the TL431AIDBVR, it's crucial to consider factors like maximum cathode current, ambient temperature effects, stability under different load conditions, and the accuracy of the resistors.
To summarize, the TL431AIDBVR is an adaptable shunt regulator, ideal for power supply regulation, voltage monitoring, and as a reference in measurement equipment. Its features include an adjustable output voltage range, temperature stability, and a low noise profile. Key design aspects involve voltage stability, thermal management, and component selection accuracy.
