lmages are for reference only See Product Specifications
ON Semiconductor TL431ACLPRAG
- Part No.:
- TL431ACLPRAG
- Manufacturer:
- ON Semiconductor
- Package:
- TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Datasheet:
-
TL431ACLPRAG.pdf
- Description:
- IC VREF SHUNT ADJ 1% TO92-3
- In Stock:
- 370
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431ACLPRAG Specifications
- Packaging:Tape & Reel (TR),Cut Tape (CT)
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Adjustable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±1%
- TemperatureCoefficient:50ppm/°C Typical
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:1 mA
- OperatingTemperature:0°C ~ 70°C (TA)
- MountingType:Through Hole
TL431ACLPRAG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431ACLPRAG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431ACLPRAG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431ACLPRAG information
Views：

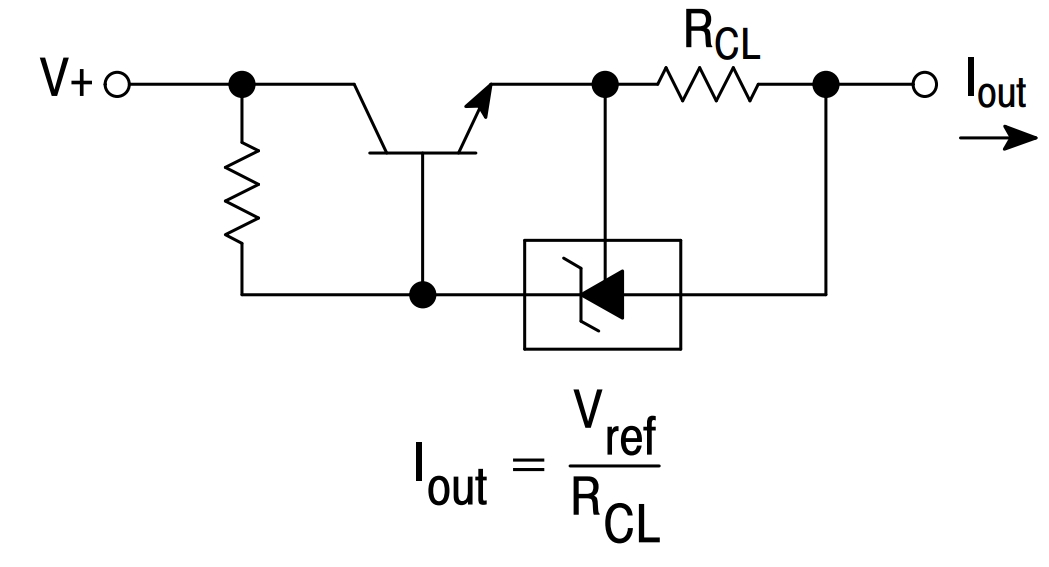

TL431ACLPRAG Typical application Circuitry
The TL431ACLPRAG is an adjustable precision shunt regulator, notable for its adaptability and precision in diverse electronic circuits.
Principal Function of TL431ACLPRAG
This chip operates as an adjustable voltage reference, offering the versatility of a Zener diode but with the ability to set specific output voltages.
Typical Usage Scenarios
The TL431ACLPRAG is effectively utilized in:
1. Adjustable Voltage Power Supplies: For precise control of output voltages.
2. Voltage Monitoring in Industrial Systems: Ensuring consistent voltage levels in complex machinery.
3. Precision Reference in Laboratory Equipment: Providing stable reference voltages for accurate measurements.
Characteristic Features
Key specifications of the TL431ACLPRAG include:
- Adaptable Voltage Output Range: Capable of adjustment from 2.5 to 36 volts.
- Stable Operation Across Diverse Temperatures: Reliable performance in various thermal conditions.
- Optimal Noise Reduction: Suitable for environments where electronic noise is a concern.
Application Circuit: Adjustable Voltage Power Supply
A comprehensive application of the TL431ACLPRAG in an adjustable voltage power supply is described here.
1. Essential Circuit Elements
- TL431ACLPRAG shunt regulator
- Resistors for voltage adjustment (R1, R2)
- Core components of the power supply
2. Pin Designation
- Pin 1: Reference (Ref)
- Pin 2: Anode
- Pin 3: Cathode
3. Methodical Circuit Assembly
- Attach R1 from the Ref (Pin 1) to the Anode (Pin 2).
- Connect R2 from the Ref (Pin 1) to the Cathode (Pin 3), which serves as the output.
4. Voltage Setting Technique
- Utilize the formula Vout = Vref * (1 + R1/R2) to calculate R1 and R2 for the desired output voltage.
5. Design Aspects to Focus
- Regulation Accuracy: Ensure stable voltage delivery under various load conditions.
- Thermal Management: Be mindful of the TL431ACLPRAG's heat output in high-load applications.
- Component Selection Precision: Opt for resistors with a low tolerance for accurate voltage regulation.
6. Calibration of Output Voltage
- Adjust R1 and R2 values for precise tuning of the output voltage.
Considerations in Circuit Design
Designing with the TL431ACLPRAG require attention to its maximum cathode current, effects of temperature fluctuations, stability with varying loads, and the accuracy of the resistors used.
In conclusion, the TL431ACLPRAG is a versatile shunt regulator, ideal for adjustable voltage power supplies, voltage monitoring in industrial systems, and as a precision reference in laboratory equipment. Its adjustable output voltage range, temperature stability, and noise reduction are significant features. Key design considerations include regulation accuracy, thermal management, and precision in component selection.
