Texas Instruments TL431ACLPR
- Part No.:
- TL431ACLPR
- Manufacturer:
- Texas Instruments
- Package:
- TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Datasheet:
-
TL431ACLPR.pdf
- Description:
- IC VREF SHUNT ADJ 1% TO92-3
- In Stock:
- 2371
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431ACLPR Specifications
- Packaging:Tape & Reel (TR),Cut Tape (CT)
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Adjustable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±1%
- TemperatureCoefficient:-
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:600 µA
- OperatingTemperature:0°C ~ 70°C (TA)
- MountingType:Through Hole
TL431ACLPR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431ACLPR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431ACLPR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431ACLPR information
Views：

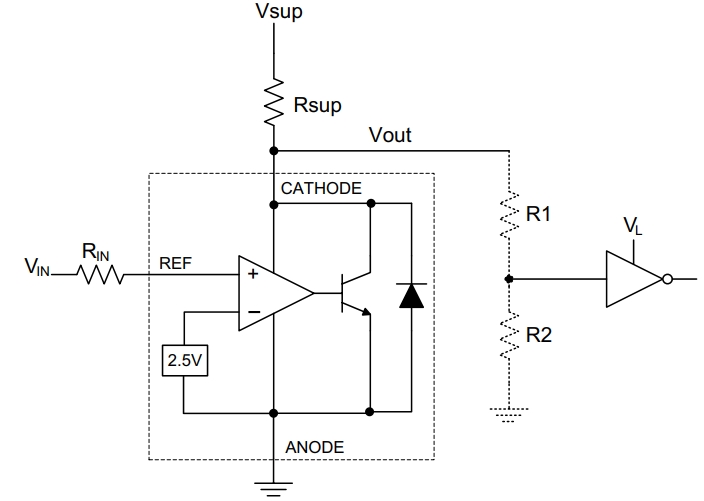

TL431ACLPR Typical application Circuitry
The TL431ACLPR is a widely used, adjustable precision shunt regulator integrated circuit.
Functionality of TL431ACLPR
This component functions as a programmable voltage reference or regulator, akin to an adjustable Zener diode, offering tailored output voltage levels.
Application Environments
Common uses of the TL431ACLPR include:
1. Regulatory Mechanism in Power Supplies: For maintaining a consistent output voltage.
2. Voltage Sensing in Safety Systems: Monitoring and regulating critical voltages.
3. Reference Voltage Source in Calibration Equipment: Providing a stable benchmark voltage.
Characteristic Parameters
Noteworthy features of the TL431ACLPR involve:
- Adjustability in Output Voltage: Ranges from 2.5 volts to 36 volts.
- Stable Performance Across Temperatures: Reliable operation in varying thermal conditions.
- Reduced Noise Output: Suitable for applications sensitive to electrical noise.
Application Circuit: Power Supply Regulation
An illustrative application using the TL431ACLPR is in power supply regulation.
1. Key Circuit Components
- TL431ACLPR shunt regulator
- Resistors for voltage setting (R1, R2)
- Power supply elements
2. Pin Arrangement
- Pin 1: Reference (Ref)
- Pin 2: Anode
- Pin 3: Cathode
3. Detailed Circuit Assembly
- Connect R1 from the Ref (Pin 1) to Anode (Pin 2).
- Attach R2 between the Ref (Pin 1) and the Cathode (Pin 3), which acts as the output point.
4. Adjusting the Output Voltage
- Calculate the values for R1 and R2 using Vout = Vref * (1 + R1/R2) to set the desired output voltage.
5. Circuit Design Focus
- Consistent Voltage Output: Ensure stable voltage across different load conditions.
- Heat Management: Monitor the temperature of the TL431ACLPR, especially under heavy load.
- Component Accuracy: Use precision resistors for more accurate voltage control.
6. Output Voltage Calibration
- Modify the values of R1 and R2 to fine-tune the output voltage as necessary.
Design Considerations in Circuitry
When designing with the TL431ACLPR, it's important to consider its maximum cathode current capacity, temperature effects on performance, load stability, and the precision of the resistors utilized.
To summarize, the TL431ACLPR is an adjustable precision shunt regulator, primarily utilized in power supply regulation, voltage sensing in safety systems, and as a reference in calibration equipment. Its adjustable output voltage, temperature stability, and low noise operation are key attributes. Design considerations encompass consistent voltage output, heat management, and component accuracy.
