ON Semiconductor TL431ACLPG
- Part No.:
- TL431ACLPG
- Manufacturer:
- ON Semiconductor
- Package:
- TO-226-3, TO-92-3 Long Body
- Datasheet:
-
TL431ACLPG.pdf
- Description:
- IC VREF SHUNT ADJ 1% TO92-3
- In Stock:
- 2747
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
TL431ACLPG Specifications
- Packaging:Bulk,Bulk
- Series:-
- ProductStatus:Active
- ReferenceType:Shunt
- OutputType:Adjustable
- Voltage-Output(Min/Fixed):2.495V
- Voltage-Output(Max):36 V
- Current-Output:100 mA
- Tolerance:±1%
- TemperatureCoefficient:50ppm/°C Typical
- Noise-01Hzto10Hz:-
- Noise-10Hzto10kHz:-
- Voltage-Input:-
- Current-Supply:-
- Current-Cathode:1 mA
- OperatingTemperature:0°C ~ 70°C (TA)
- MountingType:Through Hole
TL431ACLPG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL431ACLPG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL431ACLPG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
TL431ACLPG information
Views：

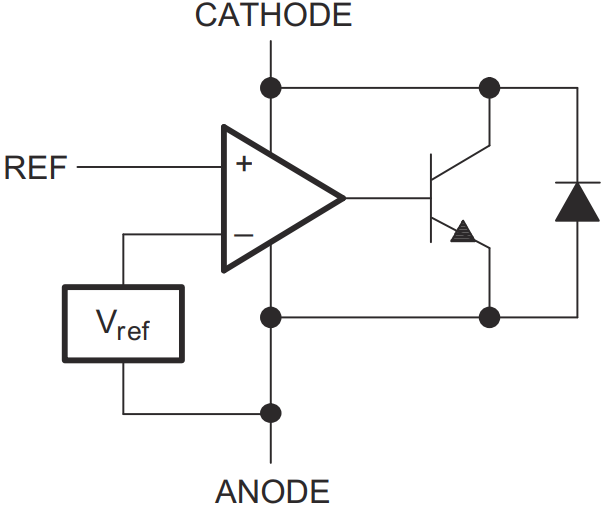

TL431ACLPG Typical application Circuitry
The TL431ACLPG is a precision programmable reference voltage source that is part of the TL431 family, widely used in a variety of electronic applications. This component is essential for voltage regulation and monitoring, particularly suited for power supplies, battery chargers, and similar circuits.
1. Voltage Reference Characteristics: The three-terminal adjustable shunt regulator, model number TL431ACLPG, has a defined thermal stability over relevant temperature ranges for vehicles, businesses, and the military. The output voltage may be changed to any value between Vref, or roughly 2.5V, and 36V by using two external resistors.
2. Pin Configuration and Connection Guide: The TL431ACLPG comes in a TO-92 package and has three pins: Anode (A), Cathode (K), and Reference (R). The Anode connects to the power source, the Cathode to the load, and the Reference pin is used to set the output voltage. By connecting a resistive divider from the output to the Reference pin, the output voltage may be controlled. The ratio of these resistors determines the output voltage according to the formula Vout = Vref * (1 + R1/R2), where R1 connects between the Reference and the Cathode, and R2 connects between the Reference and the Anode.
3. Operational Dynamics: The TL431ACLPG functions by comparing the reference voltage (determined by the resistors R1 and R2) to a 2.5V internal bandgap reference. By controlling the current flowing through the shunt regulator, this comparison enables it to sustain a steady output voltage throughout a broad variety of input voltages and load situations.
4. Current and Power Dissipation Considerations: It's crucial to consider the current through the TL431ACLPG and its power dissipation. The device can handle continuous cathode currents up to 100 mA. The amount of power dissipated by the gadget is dependent on the voltage across and current through it. Exceeding maximum ratings can lead to device failure.
5. PCB Layout and Mounting Considerations: For effective functioning, the TL431ACLPG should be mounted on a PCB with careful consideration for trace layout. Ensure minimal trace lengths to reduce noise and interference. Adequate spacing and grounding are necessary for stable operation. A further consideration is thermal management, as power dissipation can cause temperatures to rise.
6. Safety and Handling Precautions: The TL431ACLPG, like all semiconductor devices, should be handled with care. Static discharge can damage the device, and overcurrent situations should be avoided. Proper soldering techniques and ESD precautions are necessary during the installation process.
In summary, the TL431ACLPG is an integral component in precision voltage regulation tasks, offering flexibility and reliability. Understanding its pin configuration, voltage setting mechanism, current handling capabilities, PCB layout considerations, and handling precautions is essential for leveraging its full potential in various electronic applications. Proper application of the TL431ACLPG ensures precise control and stability in the circuits it is incorporated into.
