Name: TIP122
Brand: NTE Electronics, Inc
SKU: TIP122
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NTE Electronics, Inc TIP122

Part No.:: TIP122

Manufacturer:: NTE Electronics, Inc

Package:: TO-220-3

Datasheet:: TIP122.pdf

Description:: TRANS NPN DARL 100V 5A TO220

In Stock:: 3201

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TIP122 Specifications

Packaging:
Bag
Series:
-
ProductStatus:
Active
TransistorType:
NPN - Darlington
Current-Collector(Ic)(Max):
5 A
Voltage-CollectorEmitterBreakdown(Max):
100 V
VceSaturation(Max)@IbIc:
4V @ 20mA, 5A
Current-CollectorCutoff(Max):
500µA
DCCurrentGain(hFE)(Min)@IcVce:
1000 @ 3A, 3V
Power-Max:
2 W
Frequency-Transition:
-
OperatingTemperature:
-65°C ~ 150°C (TJ)
MountingType:
Through Hole

TIP122 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TIP122 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TIP122 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TIP122 information

Views：

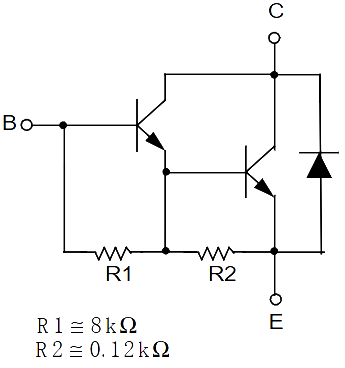

TIP122 Typical application Circuitry

TIP122

The TIP122 is a Darlington power transistor that is NPN. It is designed primarily for applications requiring high current and/or high voltages, characterized by its ability to amplify or switch higher amounts of electrical power.

Application Scenarios

The TIP122 is frequently used in power switching applications such as in motor control, audio amplifiers, and power regulators. Its high current handling capability makes it suitable for driving inductive loads like motors and relays.

Parameter Characteristics

Key features of the TIP122 include a high collector current rating, high collector-emitter voltage, and a Darlington pair configuration that provides high current gain. These features make the TIP122 ideal for handling high-power applications efficiently.

Circuit Implementation with TIP122: Motor Control Application

Implementing the TIP122 in a motor control circuit involves:

1. Collector Connection: Attach the motor's positive lead to the Collector (C) of the TIP122.

2. Emitter Connection: Connect the Emitter (E) to the ground or negative side of the power supply.

3. Base Drive: Link the Base (B) to a microcontroller or another control circuit, often via a current-limiting resistor.

4. Flyback Diode with TIP122: To shield the TIP122 from voltage spikes brought on by the inductive load, use a diode between the motor terminals.

5. Power Supply Considerations: Ensure the power supply can provide sufficient current for the motor and that the voltage is within the TIP122's operating range.

Design Considerations with TIP122

When designing circuits with the TIP122, consider the current and voltage requirements of the load, the control signal for the base, heat dissipation needs, and protection against inductive kickback. Component compatibility and PCB layout precision are essential for the TIP122's optimal performance.

For high-power switching applications, like motor control in a variety of devices, the TIP122 is a reliable option. The TIP122 is a solid option for driving heavy loads because to its effective amplification and strong current and voltage handling capabilities. To ensure effective, dependable, and safe functioning, careful planning is essential during the circuit design process. This includes selecting the right components and laying them out using the TIP122.
