What is the Additional Feature ?

Name: TCS34725FN
Brand: ams
SKU: TCS34725FN
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ams TCS34725FN

Part No.:: TCS34725FN

Manufacturer:: ams

Package:

Datasheet:: TCS34725FN.pdf

Description:: IC COLOR CONV LIGHT-DGTL 6-DFN

In Stock:: 3960

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TCS34725FN Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
Output:
I²C
Resolution(Bits):
16 b
Features:
Gain Control, Interrupt, Sleep Mode
Voltage-Supply:
2.7 V ~ 3.6 V
Current-Supply(Max):
330µA @ 3V
OperatingTemperature:
-30°C ~ 70°C

TCS34725FN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TCS34725FN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TCS34725FN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TCS34725FN information

Views：

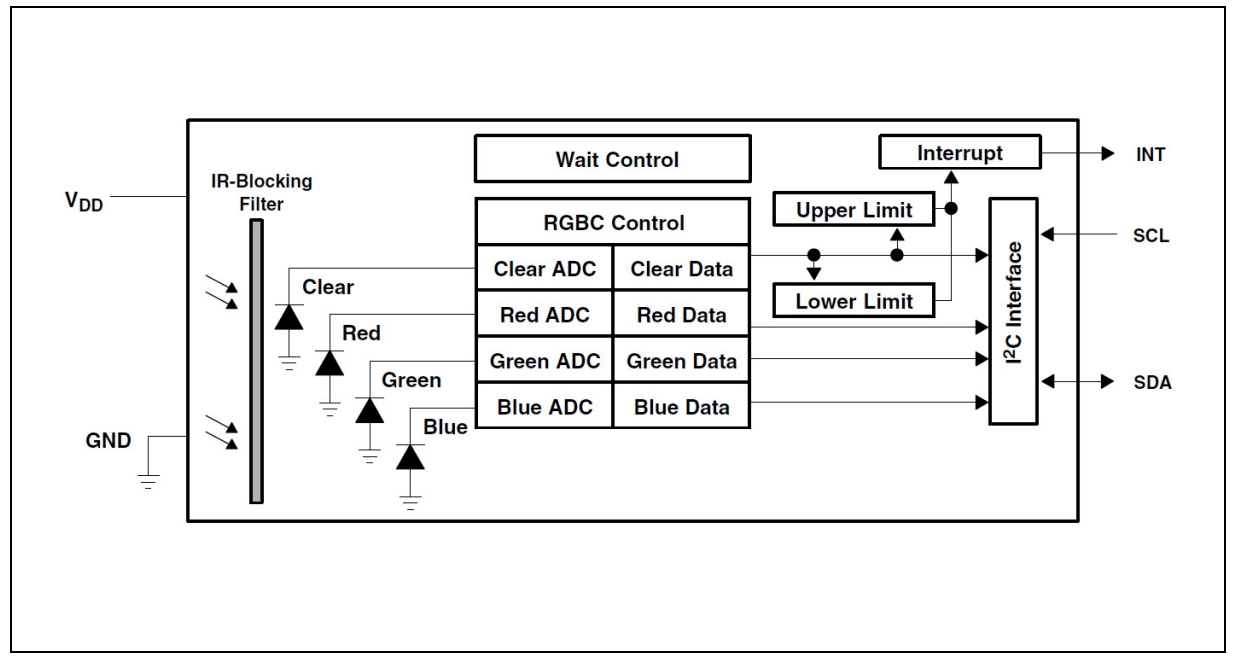

TCS34725FN Typical application Circuitry

TCS34725FN

The TCS34725FN is a color sensor IC featuring a digital light-to-frequency converter. This chip is widely used for precise color sensing and ambient light measurement. It integrates an RGB (Red, Green, Blue) and clear light sensing element, an analog-to-digital converter, and digital signal output capability. This sensor finds applications in various scenarios requiring color detection and differentiation, such as in consumer electronics, ambient light sensing for display backlight control, and in industrial settings for product color sorting and matching.

Functional Role and Common Applications

- Color Detection and Measurement: The TCS34725FN is used for detecting and measuring color in a wide range of environments.

- Use in Consumer Electronics and Industrial Applications: Ideal for applications in devices like smartphones, tablets, or in industrial color sorting and quality control systems.

Key Specifications

- RGB and Clear Light Sensing: Equipped with RGB color sensors and a clear light sensor for a wide range of light wavelength detection.

- Integrated ADC: Features an integrated analog-to-digital converter for processing the sensor signals.

Circuit Implementation: Ambient Light Sensing for Display Control

- Pin Connection and Configuration:

1. VDD (Pin 1): Connect to a 3.3V power supply.

2. GND (Pin 2): Connect to the system ground.

3. SCL (Pin 3): Connect to the serial clock line of an I2C bus.

4. SDA (Pin 4): Connect to the serial data line of an I2C bus.

5. LED (Pin 5): Connect to a GPIO pin on the microcontroller for controlling the onboard LED.

6. INT (Pin 6): Connect to an interrupt pin on the microcontroller.

Design Considerations

- Stable Power Supply for TCS34725FN: Ensure a clean and stable power source to avoid sensor reading errors.

- I2C Communication Interface: Integrate with an I2C bus for communication with a microcontroller or processor.

- Ambient Light Conditions: Consider the placement of the sensor to avoid interference from external light sources.

- Interrupt Handling: Implement an efficient interrupt service routine for handling the INT signal.

In an application like display backlight control, the TCS34725FN can be used to measure ambient light and adjust the display brightness accordingly. The design focuses on providing a stable power supply, establishing reliable I2C communication, accounting for ambient light conditions, and handling interrupts efficiently. This setup demonstrates the TCS34725FN's utility in enhancing user experience in consumer electronics through intelligent ambient light sensing.
