STMicroelectronics STMPS2141STR

Part No.:: STMPS2141STR

Manufacturer:: STMicroelectronics

Package:: SOT-23-5

Datasheet:: STMPS2141STR.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 SOT23-5

In Stock:: 3629

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STMPS2141STR Specifications

Package/Case:
SOT-23-5
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
2.7V ~ 5.5V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
90mOhm
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

STMPS2141STR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STMPS2141STR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STMPS2141STR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STMPS2141STR information

Views：

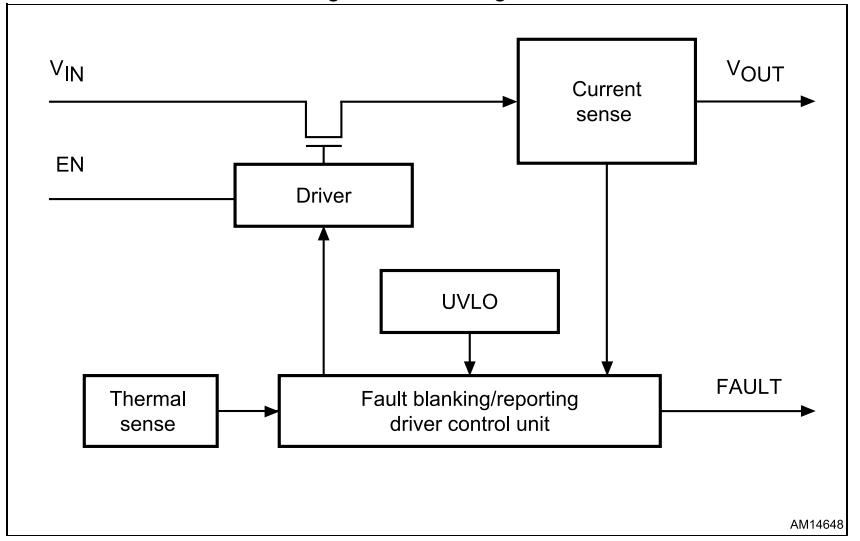

STMPS2141STR Typical application Circuitry

STMPS2141STR

The STMPS2141STR is a power distribution switch primarily used to manage power in electronic equipment. This integrated circuit is designed to provide overcurrent protection and controlled power distribution to downstream circuits.

Application Scenarios

1. USB Power Management: Commonly used for controlling power delivery in USB hubs and ports.

2. Portable Devices: Integrated into battery-powered portable devices for power management and distribution.

3. Overcurrent Protection: Employed in circuits that require protection against excessive current that could damage components.

Parameter Features

- Current Limiting Capability: Provides accurate current limitation to guard against situations where an overcurrent occurs.

- Low R_DS(ON): Features low on-resistance, minimizing power loss and heat generation.

- Fast Response Time: Quickly responds to overcurrent and short-circuit conditions, enhancing circuit safety.

Operating Voltage Range: It can be used in a variety of applications due to its suitability for a broad range of operating voltages.

Circuit Design Example: USB Power Management

Objective: Implement the STMPS2141STR in a USB hub for controlled power distribution and overcurrent protection.

Circuit Description and Components:

1. Power Input Connection:

- Connect the power source (e.g., 5V from a USB port) to the Input (Vin, Pin 1) of the STMPS2141STR.

- Ensure this connection is capable of handling the expected power load.

2. Controlled Power Output:

- Connect the Output (Vout, Pin 4) to the USB hub's power distribution line.

- This setup controls the power delivered to each USB port.

3. Enable Pin Usage:

- The Enable (EN, Pin 2) can be connected to a logic control circuit or directly to the input voltage for always-on operation.

- Logic control allows for turning the power switch on or off as needed.

4. Overcurrent and Thermal Protection:

- The STMPS2141STR will automatically shut off in response to overcurrent or excessive temperature, protecting the circuit.

- The Fault (Fault, Pin 3) output can be connected to a microcontroller to signal when a fault condition occurs.

Design Considerations:

- Input Voltage: Ensure that the power source voltage matches the operating voltage range of the STMPS2141STR.

- Load Requirements: Calculate the total current requirements of the USB devices to ensure they are within the current limit of the chip.

- Circuit Protection: Depending on the particular application environment, add more protection elements as needed.

- PCB Layout: Minimize trace lengths and optimize layout for efficient heat dissipation.

In summary, the STMPS2141STR power distribution switch is crucial in applications like USB power management, where controlled power delivery and overcurrent protection are required. When designing circuits with this IC, considerations should include input voltage compatibility, load requirements, additional circuit protection mechanisms, and efficient PCB layout for heat management, ensuring safe and reliable operation in electronic devices.
