STMicroelectronics STM32F103RET6

STM32F103RET6 is a popular microcontroller known for its high efficiency, rich peripherals, and reliability. It's widely used in embedded systems, including Arduino projects. This article covers its pin configuration, common applications, and how to use it in Arduino development.

Table of Contents

• 1. Overview of STM32F103RET6
• 2. STM32F103RET6 Pinout and package
• 3. STM32F103RET6 block diagram
• 4. Characteristics of STM32F103RET6
• 5. Application of STM32F103RET6
• 6. STM32F103RET6 development board
• 7. Arduino and STM32F103RET6
• 8. Circuit design and schematic diagram
• 9. Sum up
• Frequently Asked Questions

1. Overview of STM32F103RET6

The STM32F103RET6 is a model in the ARM Cortex-M3 microcontroller family from STMicroelectronics. It uses a 32-bit processor, has high computing power, low power consumption, and supports a wealth of peripheral interfaces, making it an ideal choice for developing a variety of embedded applications. The chip has 144 pins and is equipped with a variety of I/O interfaces, such as GPIO, USART, SPI, I2C, etc., supporting higher flexibility and scalability.

2. STM32F103RET6 Pinout and package

The STM32F103RET6's pin configuration is very rich and suitable for a variety of peripheral connections. The pin design is compact and provides developers with a large number of features to choose from. Its pin arrangement is ideal for embedded development, especially for development boards.

2.1 Pin function

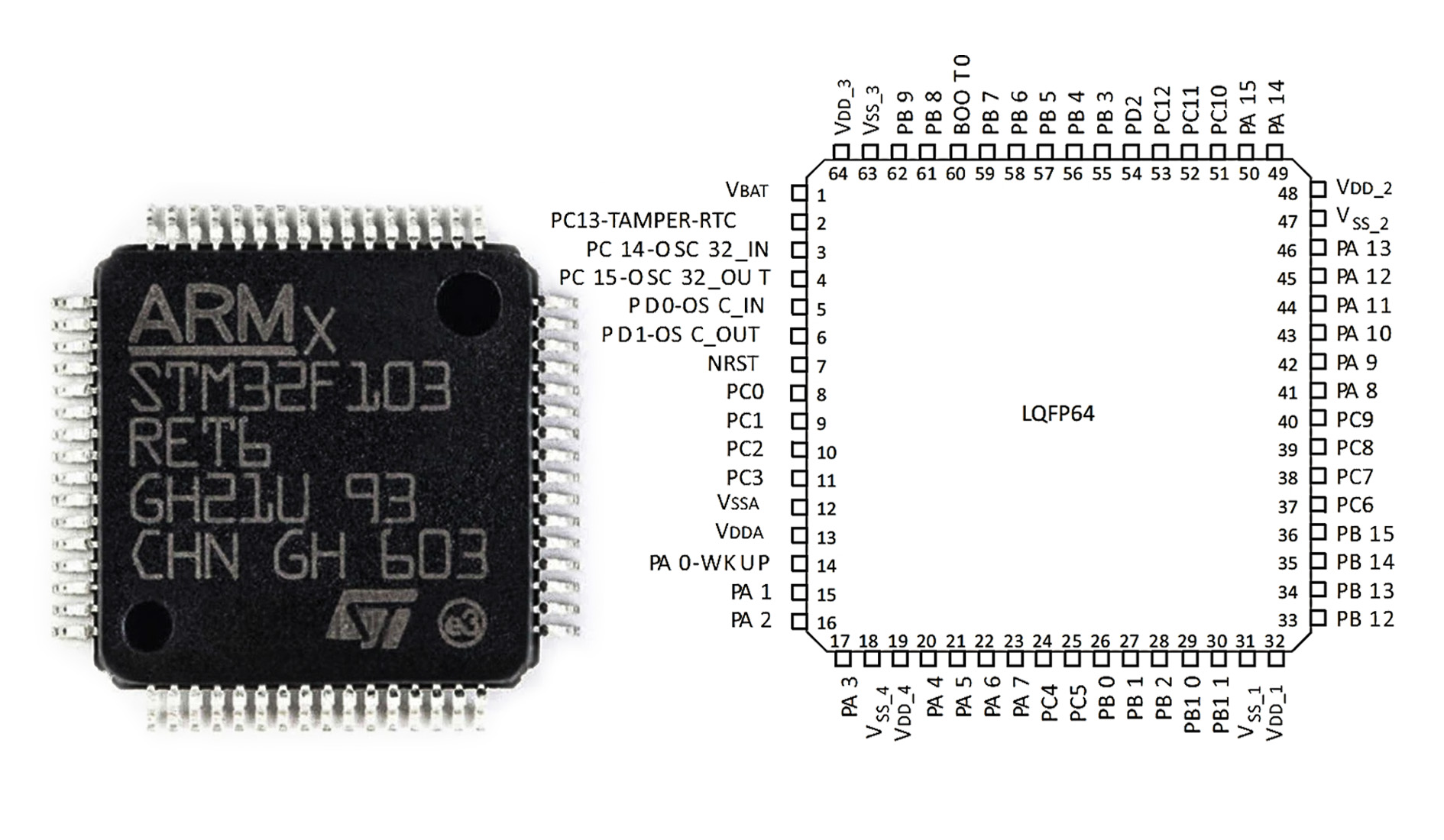

STM32F103RET6 pinout

The pin design of the STM32F103RET6 allows for a high degree of flexibility during development. Here is a brief description of the pin function:

The detailed STM32F103RET6 pin arrangement can be obtained by consulting its datasheet or reference manual. Pin diagrams show the specific functions of each pin to help developers make the right choices when designing hardware.

2.2 Package of STM32F103RET6

The STM32F103RET6 has the Package type LQFP-64 (Low-profile Quad Flat Package 64 pin) and its footprint characteristics are as follows:

STM32F103RET6 package

STM32F103RET6 footprint

Pin spacing: 0.8mm

Package size: 10mm x 10mm.

When designing the PCB, ensure that the pad size matches the package and that the pins are correctly connected to the circuit.

3. STM32F103RET6 block diagram

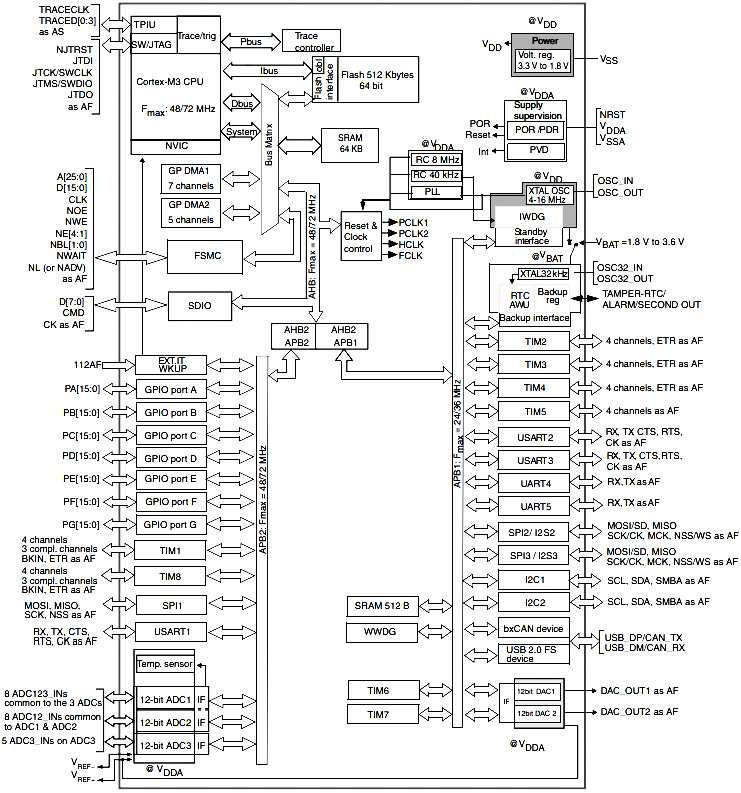

STM32F103RET6 block diagram

4. Characteristics of STM32F103RET6

5. Application of STM32F103RET6

The STM32F103RET6 can be used in a wide range of fields, such as embedded systems, robot control, industrial automation, medical devices, and consumer electronics. Its strong peripheral support enables it to play a role in a variety of applications.

Embedded control systems : can be used in industrial control, smart home and automation equipment. Its multiple communication protocols (such as UART, SPI, I2C) enable efficient interaction with sensors, actuators, and other peripherals.

Robotics and Automation : In the robot control system, the STM32F103RET6 can achieve motor control, sensor data acquisition, and path planning. Its high-precision PWM output and 12-bit ADC are ideal for real-time control tasks.

Consumer electronics : can be used for smart home appliances, smart watches, sports equipment and other consumer electronic products. Its low-power mode is ideal for battery-powered portable devices.

Medical devices : The chip has a wide range of applications in medical devices, especially for blood sugar monitoring, temperature and humidity monitoring, and portable diagnostic devices. The STM32F103RET6's high precision simulation capabilities and low power consumption make it ideal for applications that require high precision and long operating hours.

Automotive electronics : It is also used in the automotive field, such as in vehicle navigation systems, sensor data acquisition, and vehicle communication systems. It supports the CAN protocol and can meet the needs of the vehicle network.

Communication equipment : Because STM32F103RET6 provides rich serial communication interfaces (such as USART, SPI), it is widely used in wireless communication, data acquisition systems and Internet of Things devices.

6. STM32F103RET6 development board

The STM32F103RET6 development board is an evaluation board based on the chip, usually equipped with standard development tools and interfaces, so that developers can quickly get up and start programming and development.

6.1 Common development boards:

Blue Pill Development Board : This is a development board based on the STM32F103C8T6, which is widely popular due to its small size and low price. Although it has slightly different functions from the STM32F103RET6 chip, it is used in a similar way. The Blue Pill development board is often used for rapid prototyping and Arduino projects.

Mini STM32 Development Board : This development board is usually used for more high-end development needs, provides more pins and features, and is suitable for projects requiring more complex circuits.

These boards support a variety of programming options, including programming via USB, launching the loader using the bootloader, and even debugging through an external debugger.

6.2 Advantages of the development board:

Ease of use : The development board integrates all the necessary peripherals and interfaces, and developers can implement multiple functions through simple pin connections.

Open Source resources : Many development boards offer open source hardware designs and software libraries that allow developers to implement their projects faster.

Support Arduino IDE : By using the STM32 bootloader, developers can use the Arduino IDE to program the STM32F103RET6, reducing the learning curve during development.

7. Arduino and STM32F103RET6

STM32F103RET6 Arduino

Although the STM32F103RET6 is not a native Arduino microcontroller, thanks to the STM32's open source development environment and tools, users can connect the STM32F103RET6 to an Arduino-compatible development board and program it through the Arduino IDE. Using the STM32 development board combined with Arduino allows developers to take advantage of Arduino's extensive libraries and tools to quickly develop hardware and software.

7.1 Programming STM32F103RET6 with Arduino

To program the STM32F103RET6 in an Arduino environment, you first need to support the STM32 series microcontrollers by installing the corresponding hardware package. After installation, developers can control the STM32F103RET6 by writing Arduino code just as they would with a traditional Arduino development board.

Installing the STM32 core library : In the Arduino IDE, install the support library for the STM32 board through the manager.

Select development board and port : Select the type of development board corresponding to STM32F103RET6 and select the correct port.

Uploader : By using the STM32 bootloader, you can upload programs directly to the development board via USB or serial port.

With these steps, developers can write and debug STM32F103RET6 projects on the Arduino IDE.

8. Circuit design and schematic diagram

8.1 Circuit design

When designing a circuit based on STM32F103RET6, problems such as power management, signal integrity and peripheral connection must be considered. The footprint package of the chip is usually LQFP (large size square package) for easy welding and layout.

8.2 Schematic diagram

When designing the circuit, you can refer to the schematic diagram of the STM32F103RET6 for connection. The diagram details how each pin is connected and its functions to help developers make the correct hardware design.

8.3 Design considerations

When designing STM32F103RET6 circuits, developers should consider the following factors:

Power Management : Ensure a stabilized power supply and appropriate decoupling capacitors to ensure stable chip operation.

Clock source : Select an appropriate external crystal oscillator to ensure the stability of the system clock.

Pin configuration : Select the appropriate I/O pin configuration according to the project needs to avoid pin conflicts.

9. Sum up

The STM32F103RET6 is a powerful microcontroller suitable for a variety of embedded systems and development projects. By making proper use of its rich peripherals and pin configurations, developers can develop efficiently on the Arduino platform, but also for more complex industrial and consumer applications. When using the STM32F103RET6, refer to its datasheet, reference manual, and schematic diagram for a better understanding of its hardware architecture and performance. The STM32F103RET6 provides reliable support for both basic projects and advanced development.

Frequently Asked Questions

1. What programming languages does STM32F103RET6 support?

Support C and C++, can be developed through STM32CubeIDE, Keil and other tools.

2. How to debug STM32F103RET6?

Use the ST-Link debugger to debug through the SWD interface.

3. Does STM32F103RET6 support RTOS?

Yes, commonly used RTOS such as FreeRTOS can run on STM32F103RET6.

4. What is the memory size of STM32F103RET6?

64KB flash memory and 20KB SRAM.

5. How to optimize STM32F103RET6 performance?

Use DMA, optimized timers, and memory management.

6. What is the price of STM32F103RET6?

Around $3 to $5, the exact price varies depending on the quantity purchased and the supplier.
