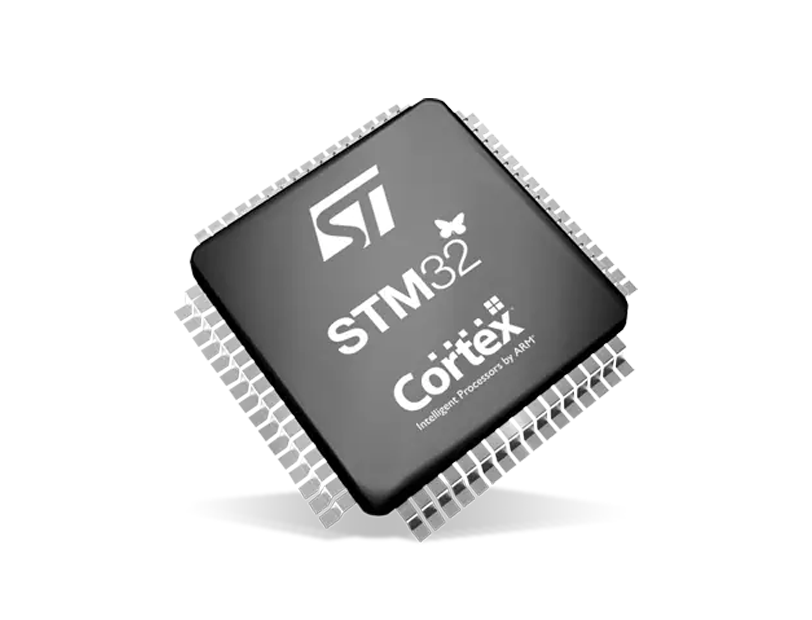

STM32 Embedded System Microcontroller

The STM32 is a series of 32-bit microcontrollers from STMicroelectronics based on the ARM Cortex-M kernel. It has high performance, low power consumption and abundant peripheral interfaces, and is widely used in embedded system development. STM32 integrates processor, memory and a variety of input and output interfaces, which is suitable for many fields such as consumer electronics and industrial control.

STM32 Microcontroller Core Feature

High integration: Built-in common peripherals (such as ADC, DAC, PWM, UART, etc.) to reduce external components and simplify design.
Low Power Consumption: The STM32L4 and STM32L0 series are suitable for battery powered devices for extended battery life.
Security Features: STM32U5 and STM32H7 provide hardware encryption and secure startup, suitable for applications with high security requirements.
Development support: STM32CubeIDE, STM32CubeMX and other tools and development boards to simplify the development process.

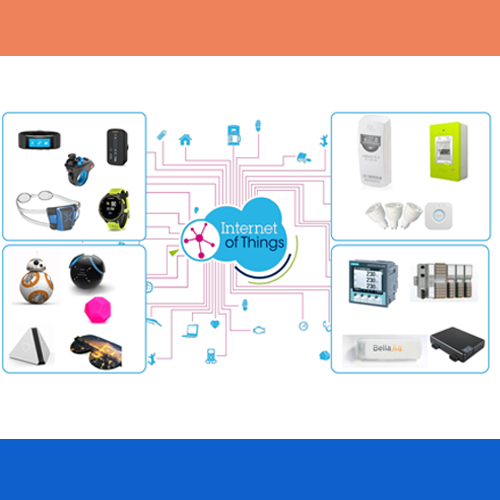

STM32 Application Fields

Consumer Electronics: smart watches, Bluetooth headphones, home appliance control, etc., require high integration and low power consumption, suitable for STM32F4, STM32F3, and other series.
Automotive Electronics: In-vehicle instrument panels, body control units, etc., requiring high reliability, suitable for high-performance models such as STM32H7.
Industrial Control: such as robot control, sensor data acquisition, etc., requiring powerful performance, suitable for STM32 Nucleo and other development boards.
Internet of Things (IoT): Smart homes, sensor nodes, etc., supporting low power and wireless communication (e.g., Wi-Fi, Bluetooth), such as the STM32 Blue Pill.

Microcontrollers STM 32-bit ARM Cortex-M Series Products

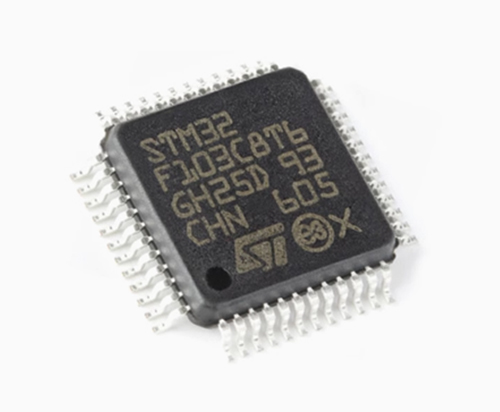

STM32F103C8T6

 ARM Cortex-M3 core, running at 72 MHz, with 64 KB of flash and 20 KB of RAM. It comes in a LQFP-48 package with 48 pins, offering support for multiple communication interfaces (USART, SPI, I2C, CAN) and analog functions (ADC, DAC). Ideal for embedded systems, sensor interfacing, and wireless communication, it is compatible with Arduino and Blue Pill boards.

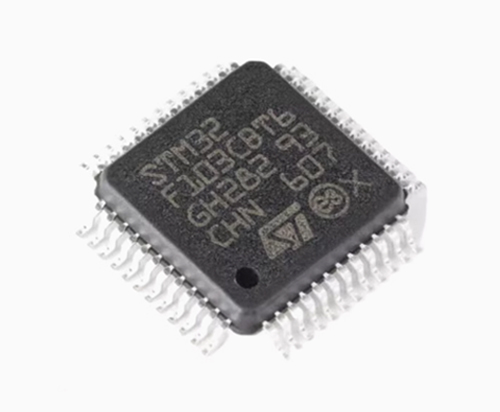

STM32F103CBT6

 ARM Cortex-M3, 72 MHz, 128 KB Flash, 20 KB SRAM, 48-pin LQFP. 12-bit ADC/DAC, 2 × I2C, 3 × SPI, 2 × USART, 1 × CAN. 3 general-purpose timers, 1 advanced control timer, 2 watchdog timers. Suitable for sensor and communication control, supported by STM32CubeIDE and Arduino IDE (STM32duino).

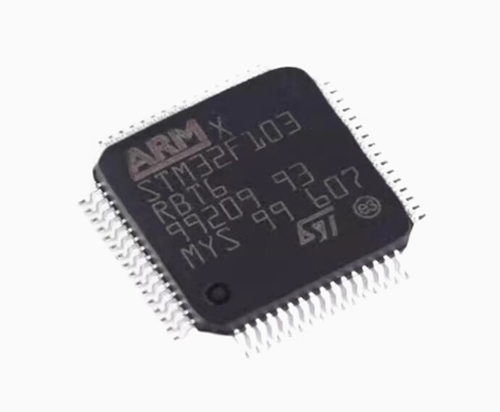

STM32F103RBT6

 ARM Cortex-M3, 72 MHz, 128 KB Flash, 20 KB SRAM, LQFP-48 package, 12-bit ADC and DAC, 16/32-bit timers, PWM, USART, SPI, I2C, CAN, USB, DMA, low-power modes, widely used in industrial control, automotive electronics, and IoT applications.

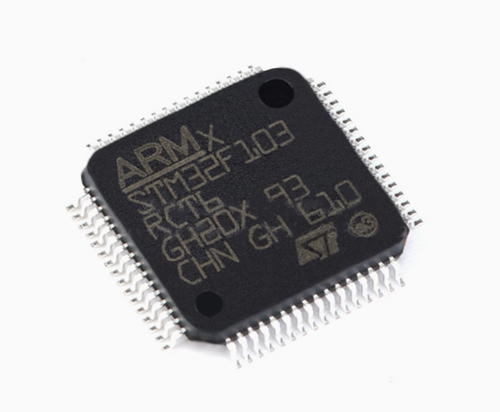

STM32F103RCT6

 ARM Microcontrollers - MCU, 72 MHz, 512 KB Flash, 64 KB SRAM, LQFP-64 package, full-speed USB 2.0, 1 CAN 2.0B, USART, SPI, I2C, PWM, ADC, More I/O and storage, ideal for advanced embedded systems and communication control.

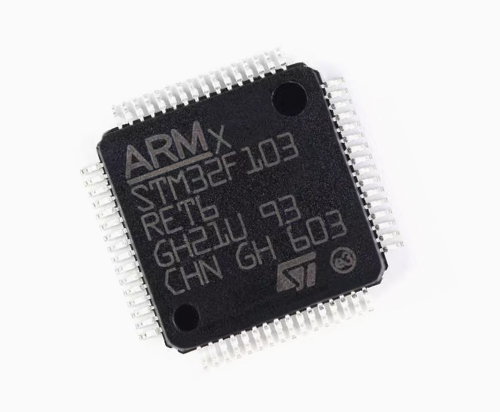

STM32F103RET6

 ARM Cortex-M3, 72 MHz, 512 KB flash memory, 64 KB SRAM, LQFP-64 Up to 51 GPIOs. 3 timers, 2 I2C, 2 USART, 1 SPI, 1 CAN, 1 USB 2.0, 3 12-bit ADC channels, 1 12-bit DAC, and PWM output, Suitable for low-power, industrial, and embedded applications.

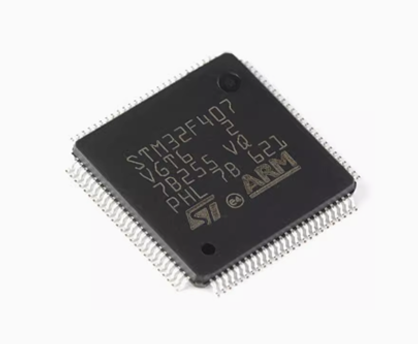

STM32F407VGT6

 ARM Cortex-M4, 168 MHz, 1 MB flash, 192 KB RAM. Peripherals include USART, SPI, I2C, CAN, USB, Ethernet, 12-bit ADC/DAC. LQFP-100 package, 100 pins, ideal for high-performance embedded applications.

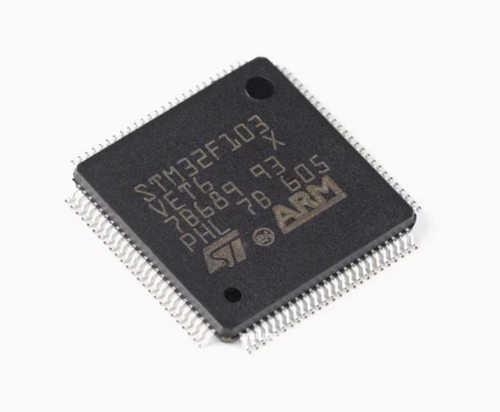

STM32F103VET6

 32-bit ARM Cortex-M3, 72 MHz, 512 KB Flash, 64 KB SRAM, 100-pin LQFP. Equipped with I2C, SPI, USART, timers, 12-bit ADC, and DMA. Low power, high performance, and versatile I/O, ideal for embedded control and industrial automation.

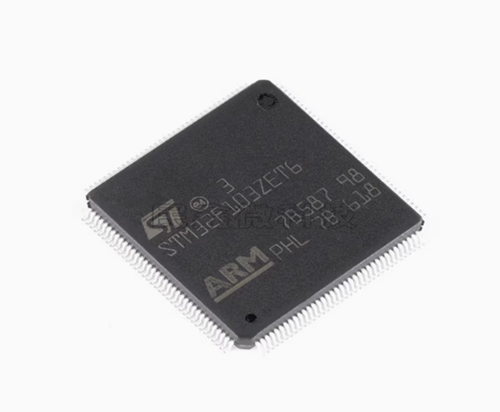

STM32F103ZET6

 STM32F1 Series 32-bit Microcontroller, ARM Cortex-M3 core, 72 MHz, 512 KB Flash memory, 64 KB SRAM, 144-pin LQFP package. Features communication interfaces including I2C, SPI, USART, and USB 2.0 full-speed. Equipped with peripherals such as PWM, ADC, CAN, and DMA. Ideal for complex embedded systems, industrial automation, and automotive applications.

STM32F103R8T6

 ARM Cortex-M3, 72 MHz, 64 KB Flash, 20 KB SRAM, 48-pin LQFP. 12-bit ADC (16 channels), 2 × 12-bit DAC, UART, SPI, I2C, CAN. 37 I/O pins, 2.0-3.6V operation. Suitable for embedded systems, sensor interfaces, and communication applications, offering a good balance of memory, performance, and peripheral options.

Why choose STM32 microcontrollers?

STM32 microcontrollers provide a comprehensive range of solutions, from entry-level to high-performance applications.

Wide Range of Models for Different Needs:The STM32 family includes a broad selection of microcontrollers, such as STM32F4, STM32F7, STM32H7, STM32F3, and STM32L4, each optimized for different applications. Whether you need high-performance processing for signal processing (STM32F7) or low-power solutions for IoT (STM32L4), STM32 has the right microcontroller for your project.

Cost-Effective Solutions: STM32 microcontrollers, such as the STM32F401 and STM32F411, provide powerful features at an affordable price, making them suitable for both hobbyist projects and industrial applications.

Comprehensive Development Board Support: STM32 offers a wide selection of development boards and kits, such as STM32 Nucleo, STM32 Discovery, and Bluepill. These boards come with extensive documentation, libraries, and debugging tools like ST-Link and JTAG, enabling rapid development and prototyping.

Flexible Expansion Options: With STM32 pinout compatibility and extensive peripheral support, STM32 microcontrollers allow for easy expansion and integration into custom systems. The microcontrollers can work with a wide range of sensors, actuators, and communication modules, making them perfect for applications in automotive electronics, robotics, and industrial automation.

Versatile Programming Environments: STM32 supports multiple programming environments, including Arduino IDE and STM32CubeIDE, making it easy for developers to choose the best platform based on their needs.Additionally, STM32 development boards such as STM32 Nucleo F767ZI integrate seamlessly with these tools.

Rich community resources: The large and active STM32 developer community provides abundant resources, including programming tutorials, datasheets(PDF), and project examples, helping users of all levels accelerate their learning and development.

Latest Product: STM32 Development Boards

We also offer several STM32 development boards, including the Nucleo, Discovery, and EVAL series, to help you quickly prototype your designs. These boards support Arduino™ and Morpho extension interfaces for easy hardware expansion.

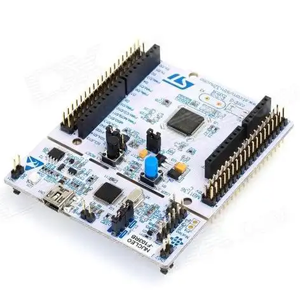

STM32 Nucleo Board

The STM32 Nucleo development board is an open-source platform based on the STM32 microcontroller that supports multiple STM32 families and is compatible with Arduino and ST Morpho extensions. It features a built-in ST-Link/V2 debugger with support for Keil, IAR, and STM32CubeIDE development environments for rapid prototyping and embedded development.

Send Inquiry Now

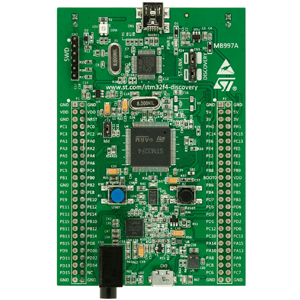

STM32 Discovery Boards

The STM32 Discovery Board helps developers quickly evaluate and prototype STM32 microcontrollers. Each board is equipped with a specific STM32 MCU and integrates peripherals such as sensors, displays, and audio devices. It supports development environments like STM32CubeIDE, Keil, and IAR, with a built-in ST-Link debugger for learning, prototyping, and embedded testing.

Send Inquiry Now

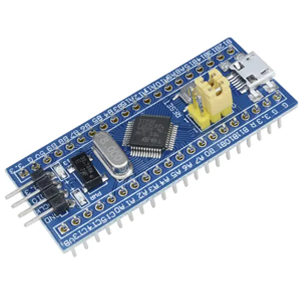

STM32 Blue Pill

The STM32 Blue Pill development board is based on the STM32F103C8T6 microcontroller, equipped with an ARM Cortex-M3 core, offering 64KB flash memory and 20KB RAM. It supports peripherals such as GPIO, UART, SPI, I2C, and ADC. Widely used in DIY and maker projects due to its affordability, it supports STM32CubeIDE and Arduino IDE, and can be programmed via ST-Link or USB-to-serial adapter.

Send Inquiry Now

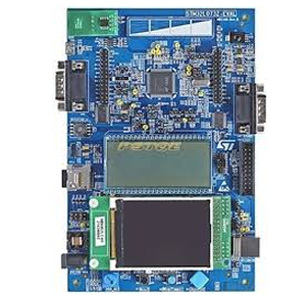

STM32 Evaluation (Eval) Boards

The STM32 Eval development board is a high-performance development platform that provides LCD, sensor, communication interfaces, and other peripherals. It supports high-speed communication and advanced debugging and is suitable for performance evaluation and system integration in complex applications. Compatible with STM32Cube software and IDEs such as Keil and IAR, it is ideal for professional embedded system development.

Send Inquiry Now

STM32 Development Tools

These eight tools and resources make up the complete STM32 development ecosystem, covering hardware configuration, code writing, debugging, RTOS support, and version control. Mastering them can significantly improve development efficiency, reduce debugging time, and enhance project reliability.

PIC16F Series Microcontroller Features

STM32CubeIDE

Integrated development environment that supports code writing, debugging, and hardware configuration, providing a convenient development experience.

STM32CubeMX

Graphical hardware configuration tool that helps you easily configure peripherals and generate initialization code to quickly start project development.

Keil uVision (MDK)

Efficient compiler and debugging tools for complex embedded systems with rich debugging capabilities.

ST-Link

Official debugging and programming tool, supports SWD/JTAG debugging, ensures efficient code download and debugging.

OpenOCD (Open On-Chip Debugger)

Open-source debugging tool, supports multiple hardware interfaces, integrates with GDB, suitable for complex debugging and system analysis.

FreeRTOS

The widely used real-time operating system supports multi-task scheduling and is suitable for embedded applications with high real-time requirements.

PlatformIO

A cross-platform development environment that simplifies library management, building, and debugging, suitable for open-source projects and command-line operations.

Git (Version Control)ns

Code versioning tools that support team collaboration and history tracking, essential tools in the development process.

Customizable STM32 Development Boards

We have a full range of STM32 microcontrollers, covering a variety of models for you to choose from. Each product comes with a detailed reference manual, pin diagram and circuit diagram to help you get started quickly. In addition to standard product, we can also customize STM32 development boards according to your needs. Each development board has been rigorously tested to ensure high quality, and comes with complete routines, schematics and technical support, so you only need to assemble it after purchase, which greatly saves development time. In addition, you can enjoy preferential prices for bulk purchases.

You can choose to purchase STM32 chips (such as STM32F4, STM32L4, etc.) to develop yourself, or you can contact us to custom development board . Whether using off-the-shelf STM32 Nucleo development boards, STM32 Discovery boards, or custom PCBS designed to meet your needs, STM32's flexibility and extensive peripheral support will help you quickly implement project functionality. We provide you with a professional STM32 development platform to ensure that you meet the needs of embedded systems, Internet of Things (IoT), intelligent hardware and other applications.
