STMicroelectronics STM32F103RBT6

STM32F103RBT6 is a high-performance ARM Cortex-M3 microcontroller ideal for embedded systems and IoT. It offers more peripherals than Arduino boards, making it suitable for advanced projects. This article covers its pinout and development support.

Table of Contents

• 1. STM32F103RBT6 Overview
• 2. STM32F103RBT6 pinout diagram and package
• 3. Features of STM32F103RBT6
• 4. Application of STM32F103RBT6
• 5. Development of Arduino and STM32F103RBT6
• 6. Development board and circuit design
• 7. Programming and debugging
• 8. Sum up
• 9. Frequently Asked Questions

1. STM32F103RBT6 Overview

The STM32F103RBT6 is a member of the STM32 series of microcontrollers introduced by STMicroelectronics. It is based on the ARM Cortex-M3 architecture, the main frequency of up to 72MHz, with a wealth of peripheral interfaces, such as UART, SPI, I2C, ADC and PWM, suitable for various control and communication applications.

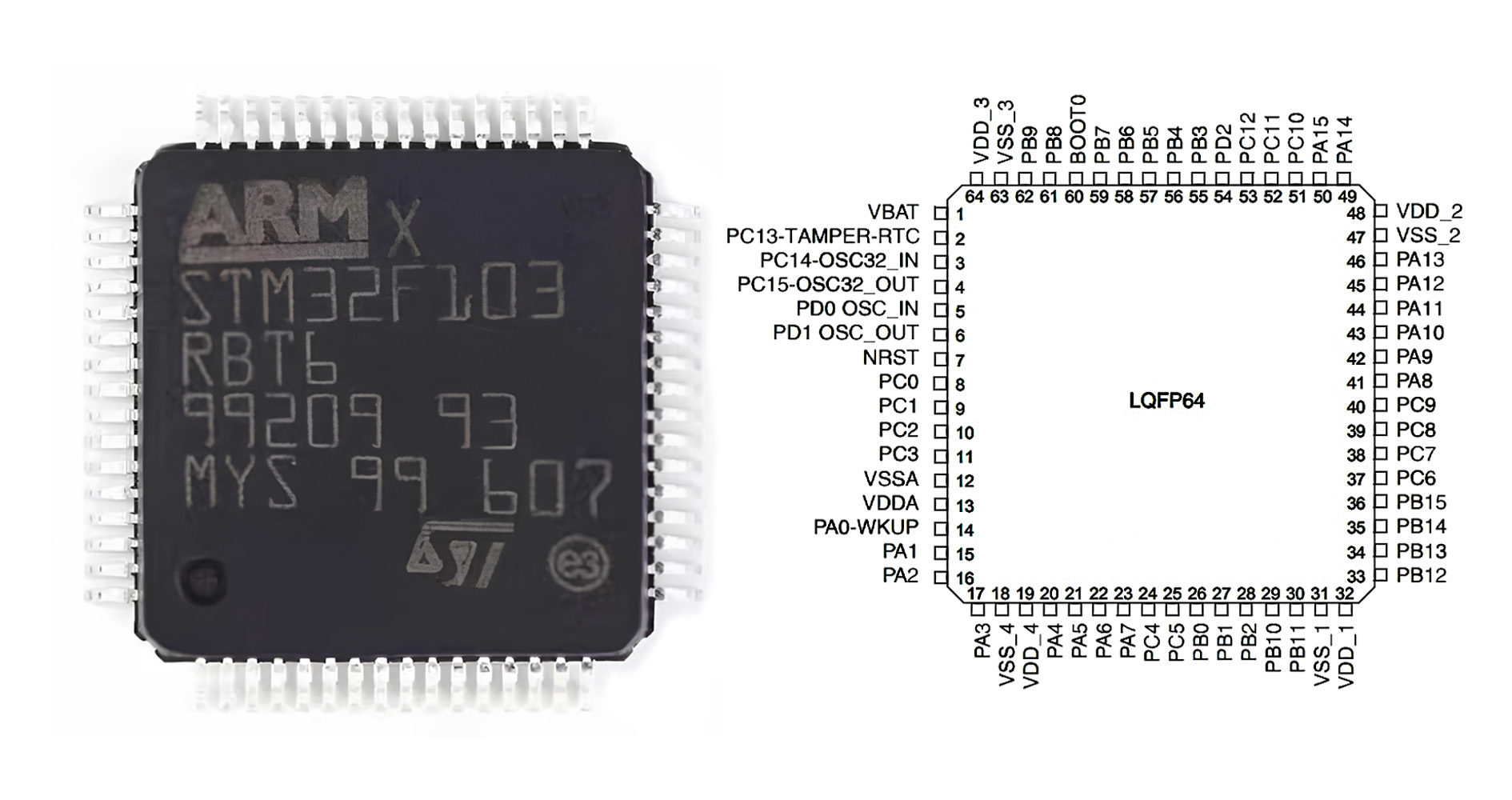

2. STM32F103RBT6 pinout diagram and package

The STM32F103RBT6's pinout are distributed in the LQFP-64 package, with a total of 64 pinout. The functionality of each pinout can be configured programmatically, so developers can choose different functions according to their needs. The pinout diagram of the STM32F103RBT6 is very important because it determines the function and connection of each pinout.

2.1 Pinout function

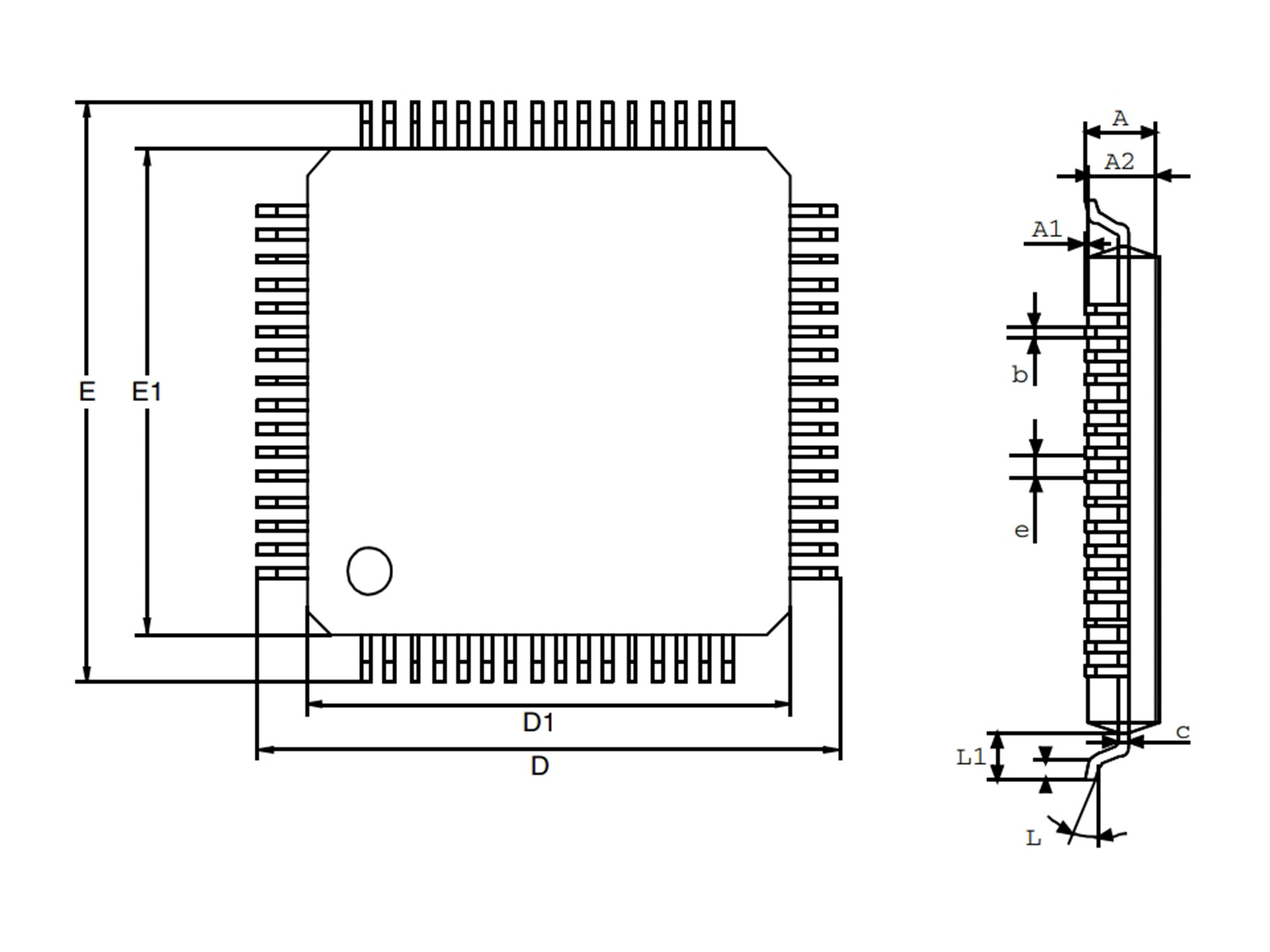

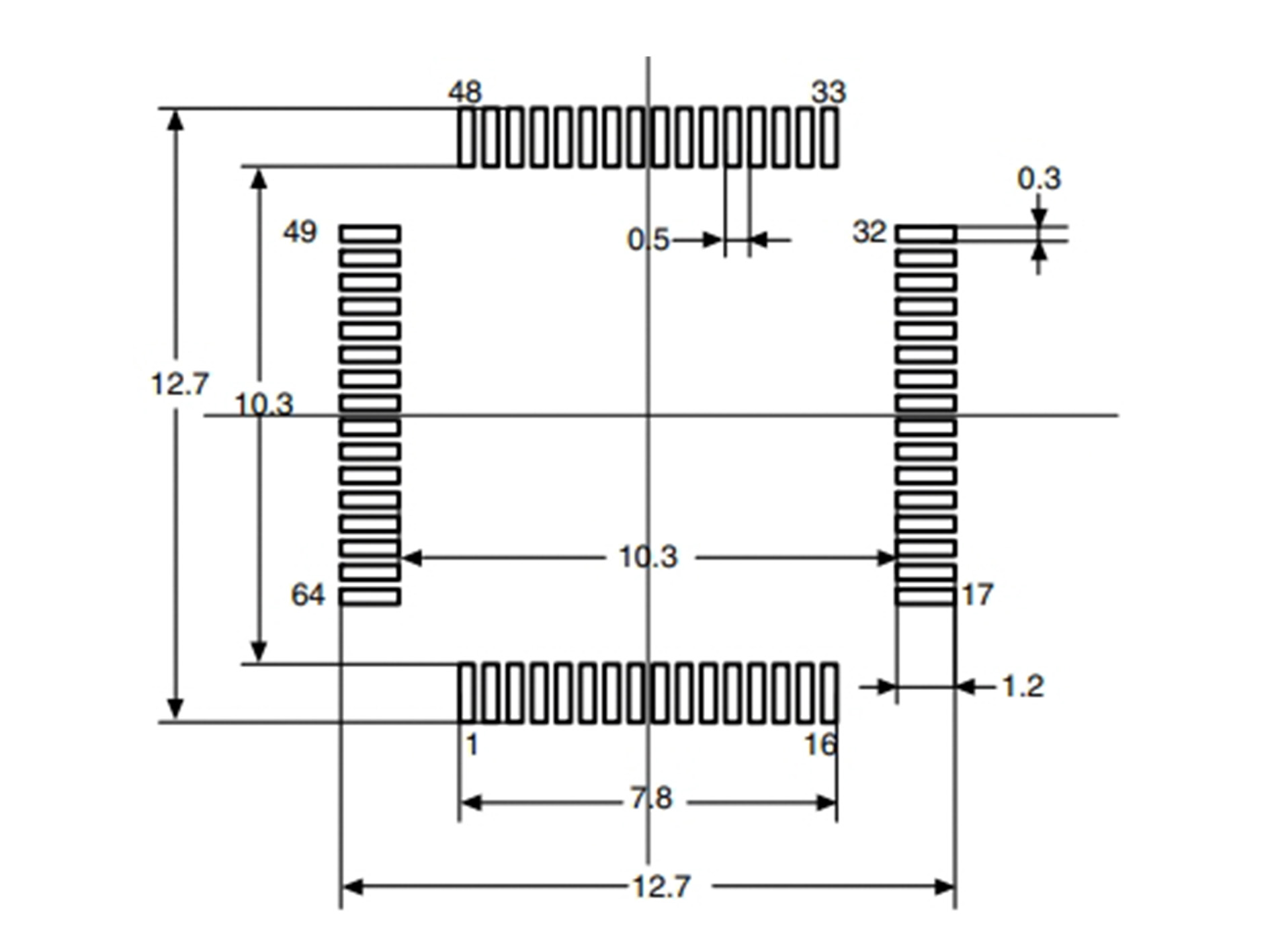

2.2 STM32F103RBT6 package

The STM32F103RBT6 is available in a 64-pin LQFP (Low-Profile Quad Flat Package) with the following specifications:

Pinout spacing: 0.8 mm

Dimensions: 10 mm x 10 mm

This compact footprint is suitable for integration into embedded system designs.

3. Features of STM32F103RBT6

4. Application of STM32F103RBT6

The STM32F103RBT6 enhances powerful performance and a rich external setup interface to widely evaluate multiple embedded projects.

1. Robot control:Control motors, sensors and actuators with the STM32F103RBT6 for automated and remote controlled robotic systems.

2. Iot Devices:Sensors and wireless modules are connected through UART, SPI or I2C interfaces to achieve data acquisition and wireless communication.

3. Industrial control:Using clock, PWM output and precision ADC, the STM32F103RBT6 can be used in industrial automation systems such as PLCS, monitoring systems, etc.

4. Smart Home:Control home appliances, temperature and humidity sensors, intelligent lighting, etc., to provide smart home solutions.

5. Automotive Electronics:Used in automobile control system, such as automobile sensor data acquisition, display control, etc.

6. Embedded instrumentation:Such as temperature controllers, display devices, data loggers, etc., require subsequent ADC and timing control.

7. Medical equipment:For health monitoring equipment, such as electrocardiograph, blood pressure meter, etc.

5. Development of Arduino and STM32F103RBT6

Although the development of the STM32F103RBT6 is not as easy to use as the Arduino development board, with the appropriate tools and library support, developers can program on the Arduino platform and develop STM32-based projects. Due to the openness and ease of use of Arduino, many developers want to combine the STM32F103RBT6 with Arduino, taking advantage of the easy development environment of Arduino and the high performance characteristics of STM32.

5.1 Using STM32F103RBT6 in Arduino

To use the STM32F103RBT6 in an Arduino environment, you first need to configure the pins and peripherals of the STM32F103RBT6 through the STM32 development toolchain. The code is then loaded into STM32F103RBT6 using STM32's bootloader. The process described here is suitable for developers who are already familiar with Arduino programming.

1. Install the STM32 Arduino library:First, you need to install the Arduino development library of the STM32, so that you can write and upload programs in the Arduino IDE;

2. Connect development board:Connect the STM32F103RBT6 to the computer to ensure that the relevant drivers can be identified and installed;

3. Write code:Use Arduino IDE to write code, configure I/O pins, peripherals, and communication protocols;

4. Upload program:Upload the written program to STM32F103RBT6 through serial port or USB interface.

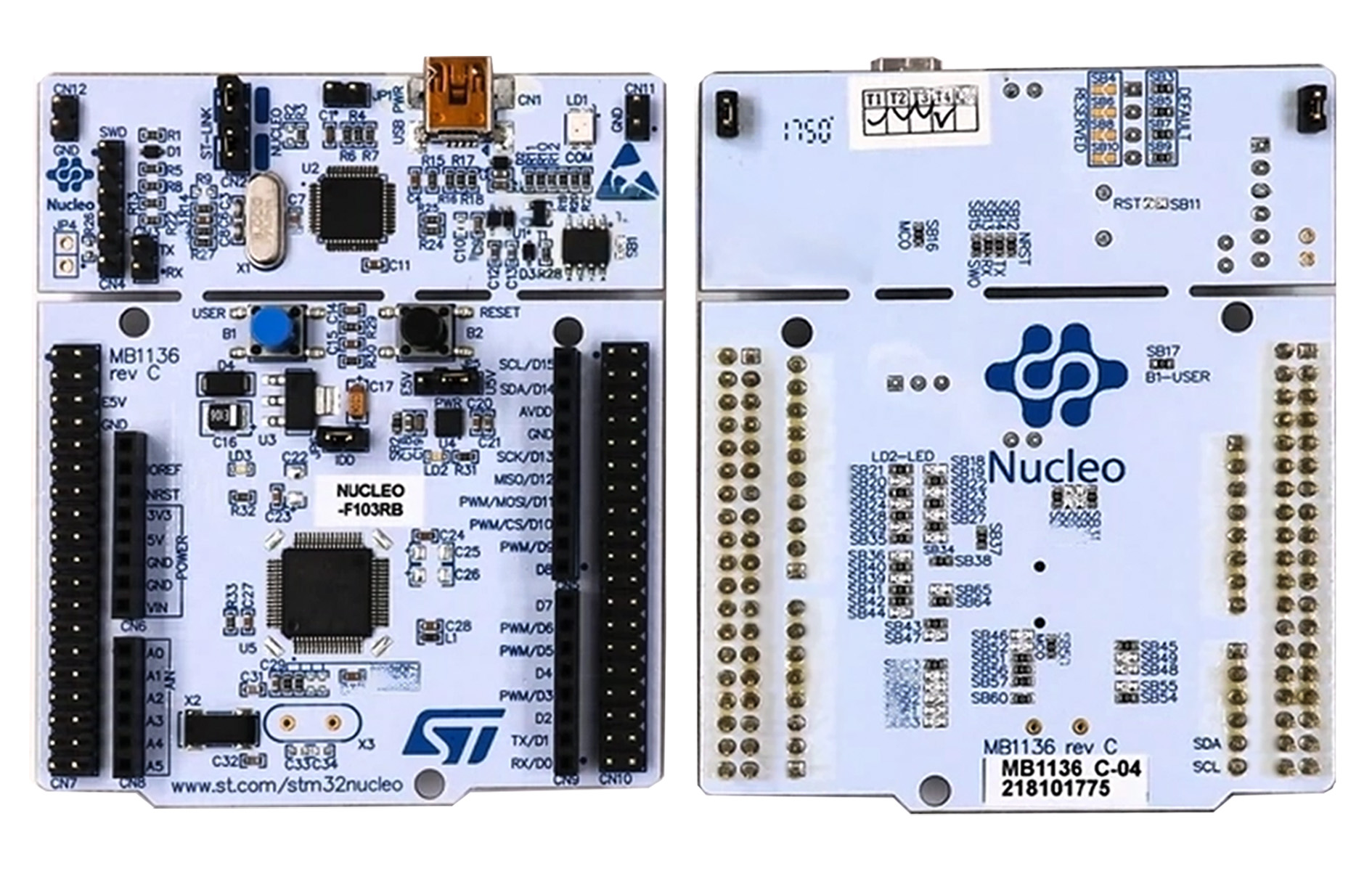

5.2 Blue Pill Development Board

One popular board based on the STM32F103RBT6 is the Blue Pill. It provides the STM32F103RBT6 chip and supports various peripherals, making it ideal for prototyping and beginner projects. The Blue Pill is cost-effective and suitable for DIY enthusiasts.

6. Development board and circuit design

In the development of STM32F103RBT6 project, it is very important to choose the right development board. Common development boards such as the Blue Pill can simplify the development process, but for complex projects, developers may need to customize the circuit and peripheral connections according to their needs. When designing the circuit, it is necessary to pay attention to the function and electrical characteristics of each pin to ensure the stability and reliability of the circuit.

6.1 Development board design

Development boards typically include:

1. Power management module: provides stable voltage for STM32F103RBT6;

2. Programming interface: for program burning, such as SWD interface;

3. Peripheral interface: including GPIO, UART, I2C, SPI, etc.

When designing the circuit, it is necessary to select the appropriate peripheral connection mode according to the pinout diagram of STM32F103RBT6 and the development requirements.

6.2 Schematic Design

Creating a circuit schematic helps developers understand pin functions and connections, reducing errors during design and ensuring reliable operation.

7. Programming and debugging

For programming STM32F103RBT6, a variety of tools and environments are available. The most common is programming and debugging through the STM32CubeIDE, which provides powerful capabilities to support the complete process from project creation to program burning. In addition, developers can choose to use the Arduino IDE for simple program development and debugging.

7.1 Bootloader and programming

STM32F103RBT6 supports a variety of programming methods, of which loading programs through the bootloader is the most common one. Using bootloader, developers can burn programs to STM32F103RBT6 through serial port, USB or other interfaces, avoiding the use of hardware programmers, simplifying the development process.

8. Sum up

The STM32F103RBT6 is a powerful microcontroller for high-performance embedded projects. By consulting its reference manual for pinout, hardware, and programming details, developers can leverage its advanced features. While it has a steeper learning curve compared to Arduino, it supports a wider range of applications. Using Arduino's environment and the reference manual, developers can create innovative projects with ease.

9. Frequently Asked Questions

9.1 What is the price of STM32F103RBT6?

The price of STM32F103RBT6 is usually between $2.00 and $5.00 USD, depending on the supplier and the amount purchased.

9.2 How to obtain STM32F103RBT6 datasheet?

You can find STM32F103RBT6 datasheet on our website, download PDF file.

9.3 Can STM32F103RBT6 be used in USB projects?

Yes, it supports USB 2.0 full-speed applications such as USB HID or serial devices.

9.4 What is the power consumption of the STM32F103RBT6?

Typical current is 12-15 mA at 72 MHz in low power mode to save energy in idle state.

9.5 How to debug STM32F103RBT6?

Use STM32CubeIDE with ST-Link debugger or via USART debugging for basic monitoring.

9.6 Difference between STM32F103RBT6 and STM32F103C8T6?

RBT6 has 128KB Flash and 64 pins while C8T6 has 64KB Flash and 48 pins.RBT6 is suitable for more complex projects.
