STMicroelectronics STM32F030K6T6

The STM32F030K6T6 is a compact, low-power microcontroller with an ARM Cortex-M0 core, ideal for embedded systems and electronics. This article covers its pinout, applications, Arduino integration, pricing, and programming basics.

Table of Contents

• 1. Introduction to STM32F030K6T6
• 2. STM32F030K6T6 pinout and package
• 3. The main features of STM32F030K6T6
• 4. Application of STM32F030K6T6
• 5. STM32F030K6T6 with Arduino development board
• 6. Sum up
• 7. Frequently Asked Questions

1. Introduction to STM32F030K6T6

The STM32F030K6T6 microcontroller is a 32-bit ARM Cortex-M0 chip designed to balance performance with low power consumption. With 32KB of flash memory and 4KB of SRAM, it is ideal for mid-range embedded applications where space is limited but powerful performance is required. The chip has a maximum clock speed of 48 MHz, and its compact design and efficient power management make it ideal for battery-powered applications.

2. STM32F030K6T6 pinout and package

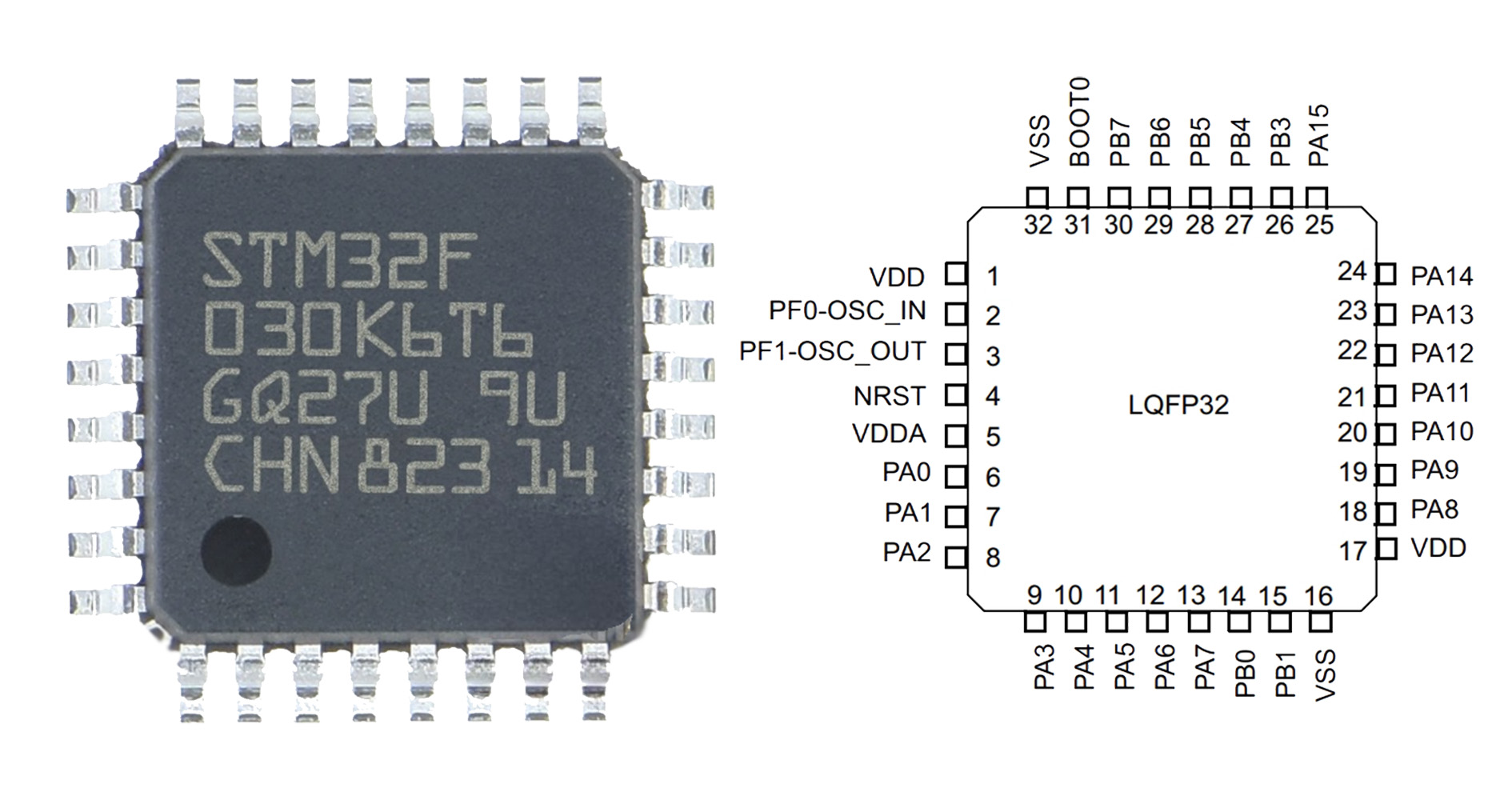

The STM32F030K6T6 is available in a 32 pinout package that includes a variety of pinout for power, I/O and communication interfaces. The pinout arrangement is carefully designed to minimize the physical size of the chip while maximizing flexibility, which is a significant advantage for compact embedded systems.

2.1 Overview of the pinout distribution

Here is a breakdown of the main pinout in the STM32F030K6T6 and their functions:

2.2 Pinout configuration

The pinout arrangement can be configured to meet different project requirements. Many pinout have backup functions that can be changed in software. For example, the same pinout used for GPIO in one configuration can be used as part of a communication bus such as I2C or SPI in another configuration. This flexibility gives developers a wide range of options to create compact and efficient designs.

2.3 STM32F030K6T6 package

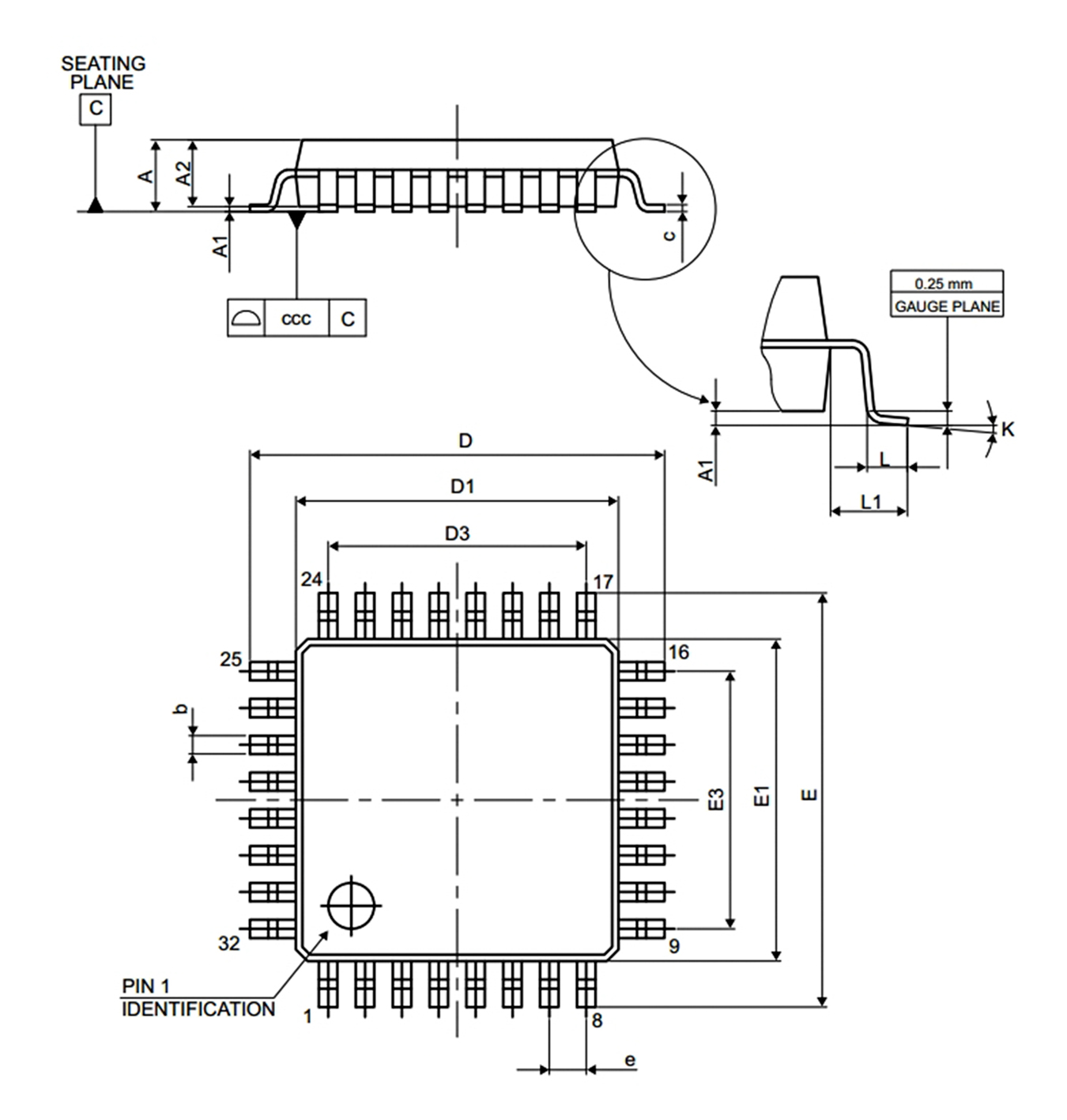

STM32F030K6T6 uses LQFP-32 package with a Footprint size of 7x7mm, which is suitable for compact circuit design.

3. The main features of STM32F030K6T6

With this rich set of features, the STM32F030K6T6 is ideal for a wide range of applications, including industrial control systems, home automation and consumer electronics.

4. Application of STM32F030K6T6

The STM32F030K6T6 is suitable for a variety of applications, from simple consumer electronics to more complex industrial systems. Its small size, low power consumption, rich functions, suitable for a variety of applications.

4.1 Embedded systems

The STM32F030K6T6 has high memory efficiency and low power consumption, making it ideal for embedded systems. It can be used in devices such as sensors, controllers and automation systems, which are critical for space and energy efficiency. For example, it can be used in small monitoring systems that need to run on battery power for long periods of time.

4.2 Consumer electronics

In the field of consumer electronics, the STM32F030K6T6 is commonly used in wearables, smart home devices and remote control systems. Its communication interfaces, such as UART, SPI and I2C, make it easy to integrate with sensors, displays and other modules.

4.3 Industrial control

The STM32F030K6T6 is also commonly used in industrial control applications. It can be used in motor controllers, sensor networks and automation systems. The microcontroller's multiple I/O pins, communication interfaces, and timers make it ideal for controlling complex systems in real time. a

4.4 Communication systems

The STM32F030K6T6 is ideal for applications that require serial communication. Whether it's an iot device, wireless communication, or data logging, microcontrollers' support for protocols such as UART, SPI, and I2C makes it easy to integrate into wireless networks or communication systems.

5. STM32F030K6T6 with Arduino development board

One of the standout features of the STM32F030K6T6 is its compatibility with the Arduino ecosystem. By using the Arduino development board based on the STM32F030K6T6, developers can take advantage of its ease of programming and the large number of libraries and tools available.

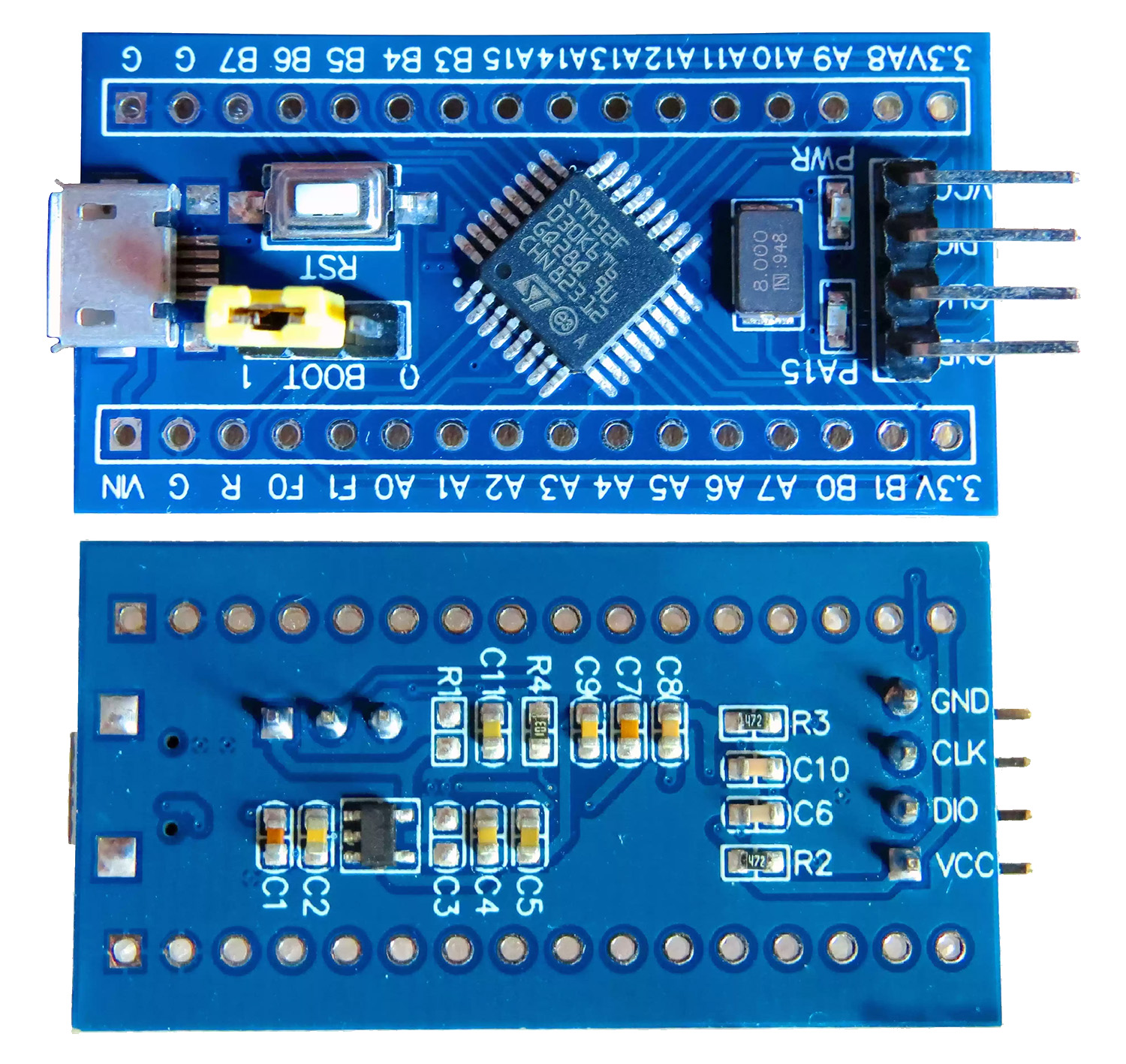

5.1 Blue Pill development board

The STM32F030K6T6 can be used in development boards similar to the popular Blue Pill development board, which is based on the STM32F103C8T6 microcontroller. These development boards provide Arduino users with a familiar development experience, while also having the additional benefits of low power consumption and advanced features of the STM32F030K6T6.

To use the STM32F030K6T6 with the Arduino IDE, you need to install the STM32 Development Board Support Pack (BSP). This way, you can program the microcontroller as you would an Arduino development board, making it easy for amateurs and professionals alike to start developing.

5.2 Programming of STM32F030K6T6

The STM32F030K6T6 can be programmed via a boot loader or an external ST-Link programmer. Boot loaders allow you to load firmware via USB, while ST-Link programmers provide a more direct and faster way to program chips. Once set up, you can write code in the Arduino IDE and upload it directly to the STM32F030K6T6 development board.

5.3 Example project

Here are some project ideas to help you get started with the STM32F030K6T6:

Temperature and humidity loggers: Use temperature and humidity sensors such as DHT11 and use SPI communication to store data on an SD card.
Home automation system: Build a system that controls lights, fans, or appliances based on sensor inputs, such as motion detectors or temperature sensors.
Smart Motor controller: Uses PWM and sensor feedback to control the speed and direction of the motor.

6. Sum up

The STM32F030K6T6 microcontroller offers a great balance of performance, low power consumption, and flexibility. With a 32 pinout, rich feature set, and compatibility with Arduino, it is ideal for applications in embedded systems, industrial control, consumer electronics, and communications. Whether you're a beginner or an experienced engineer, the STM32F030K6T6 is an affordable and powerful solution for your next project. Check out the datasheets and reference manuals to explore its full capabilities.

7. Frequently Asked Questions

7.1 Can I use STM32F030K6T6 for Bluetooth communication?

Yes, you can use external Bluetooth modules (like HC-05) via UART, SPI, or I2C for Bluetooth communication with STM32F030K6T6.

7.2 How do I program STM32F030K6T6 without an ST-Link?

You can use the bootloader method (via USB) or use an SWD programmer (like J-Link) for programming without an ST-Link.

7.3 How much power does the STM32F030K6T6 consume?

It typically consumes 5-10 mA at 48 MHz, and in low-power modes, it can consume as little as a few microamperes (µA).

7.4 How do I interface STM32F030K6T6 with sensors?

Use I2C, SPI, or UART to connect sensors to STM32F030K6T6, depending on the sensor's communication protocol.

7.5 What are the advantages of using STM32F030K6T6 in a battery-powered project?

It offers low power consumption, low voltage operation (2.4V), and multiple power-saving modes, making it ideal for battery-powered applications.

7.6 What is the circuit schematic of STM32F030K6T6?

The schematic includes the power supply, external crystal oscillator, reset circuit, and communication interface. Refer to the official data sheet for details.

7.7 What are the design considerations for STM32F030K6T6?

Focus on decoupling capacitors, external crystal connections, reset circuits, and protection to ensure stability and low power operation.

7.8 What is the price of STM32F030K6T6?

The price is around $2-3 per piece, depending on quantity and supplier.
